micro air compressor 12v application for sphygmomanometer OEM available | PINCHENG

Short Description:

Micro air compressor have HIGH PERFORMANCE:Chemical stability, could withstand dry rotation, durable and free maintenance.This air pump is 15L/m airflowrate and 30kpa air pressure, low noise and more than 20,000 hours lifetime.

  • Model Number: 030
  • Type: Electric Micro air pump
  • Material: ABS
  • Princle: Diaphragm Pump
  • Vacuum Degree : High vacuum
  • Drive way: Electric
  • Used: Booster pump
  • Performace: Wearable
  • Conveying medium: Air
  • Product Detail


    Product Tags


    Micro air compressor 12v

    Micro air compressor have small size, low voice, does not pollute the transmission medium. This advantage makes the pumps have widely used. High quality production technology produce long life pumps. The vacuum pumps have CE, FDA certificate.

    Micro air compressor 12v application for sphygmomanometer OEM available. Micro vacuum pump have small size, high vacuum degree. It's widely used, and have long life time.

    Experienced manufacturers

    Professional research

    Long Lifetime


    Product Information

    PYP030-XA Air pump

    *Other Parameters: according to customer demand for design
    Rate Voltage DC 3V DC 3.7V DC 6V DC 9V
    Rate Current ≤400mA ≤350mA ≤200mA ≤110mA
    Power 1.0w 1.0w 1.0w 1.0w
    Air Tap O.D. φ3.1mm
    Air flow 0.3-1.0 LPM
    Inflation Time ≤8s (From 0 to 300 mmHg in a 100cc tank
    Maximum Pressure ≥50Kpa(375mmHg)
    Noise Level ≤60db (30cm away)
    Life Test ≥30,00 Times (ON 10 s;OFF 5s)
    Weight 14g
    气密性 ≤3mm Hg/min (From 300 mmHg in a 100cc tank

    Specification Engineering Drawing

    12V Mini Air Pump Specification Engineering Drawing


    Typical Applications

    Home Applicances, Medical, Beauty, Massage, Adult products

    Blackhead instrument, Breast pump, Vacuum packaging machine, Adult products, Booster technology

    Tea table

    Tea table

    Vacuum packing machine

    Vacuum packing machine

    Water dispenser

    Water dispenser

    Foam hand sanitizer

    Foam hand sanitizer

    Electric decanter

    Electric decanter



    Images for micro gear pump---100% live-action shooting, Quality Guarantee

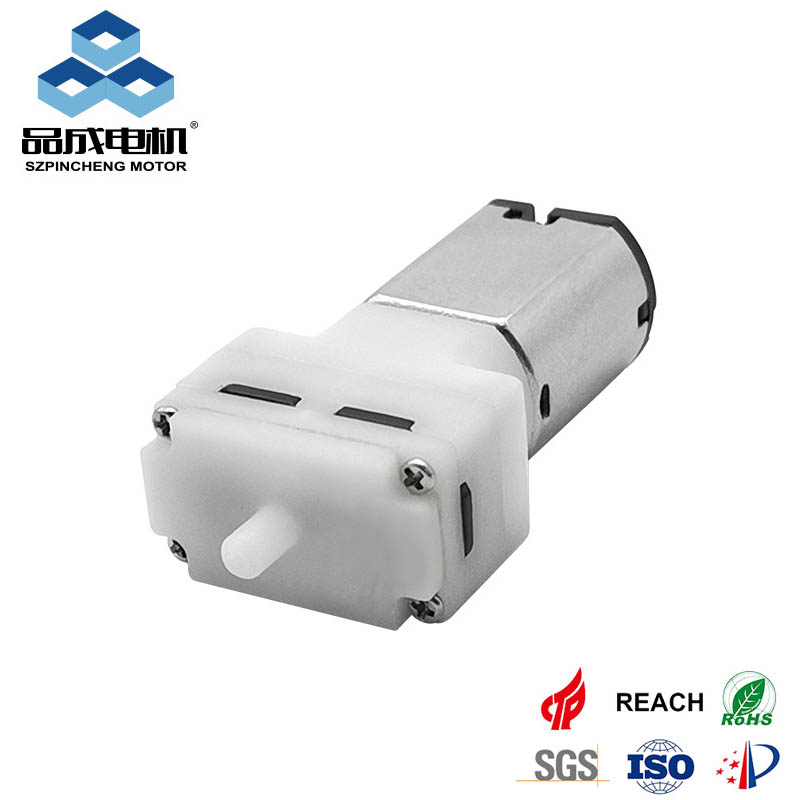

    Product Photograph Real Shot

    12V Mini Air PumpS

    We supply more than just product, we engineer solutions optimised to suit your application requirements.
