Micro Air Solenoid Valve for Compact Pneumatic Systems
Pinmotor supplies micro air solenoid valves for pressure release, airflow switching, vacuum control and multi-channel pneumatic systems.

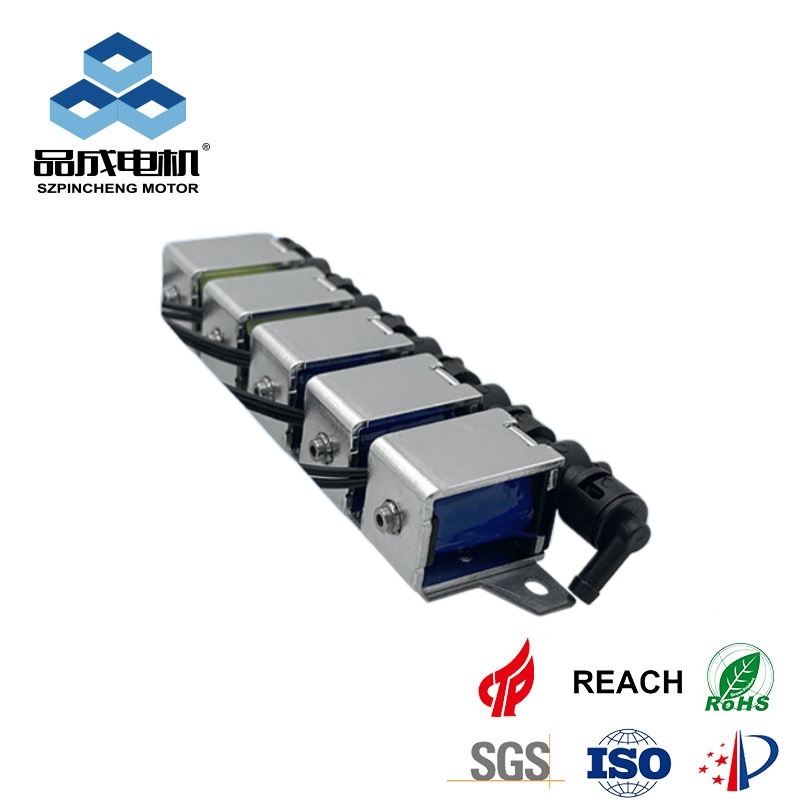

The product range includes normally open and normally closed valves, 2-way and 3-way structures,
vacuum valves and multi-channel valve assemblies.
Different voltage, port and mounting options are available for medical devices, massage equipment, beauty products,
laboratory instruments and compact automation systems.
A 12V diaphragm air pump generates airflow through the reciprocating movement of a flexible diaphragm. The diaphragm separates the air path from the motor drive system, helping maintain clean and oil-free gas transmission.
This structure is suitable for equipment requiring compact integration, stable airflow output, and clean air handling.
Typical applications include:
● Gas analysis instruments
● Portable detection equipment
● Air circulation modules
● Compact pneumatic systems
Performance range:
| Parameter | Specification |
|---|---|
| Flow Range | 1–15 L/min |
| Pressure Capability | Up to 3 bar |
| Vacuum Capability | Up to -85 kPa |
A 12V piston air pump produces airflow through piston reciprocating compression, allowing higher pressure generation compared with standard air transfer designs.
This structure is suitable for equipment requiring stronger compression performance, faster pressure build-up, and compressed air output.
Typical applications include:
● Inflation equipment
● Compact compressor systems
● Pneumatic pressure devices
● Industrial air supply units
Performance range:
| Parameter | Specification |
|---|---|
| Flow Range | 2–12 L/min |
| Pressure Capability | Up to 10 bar |

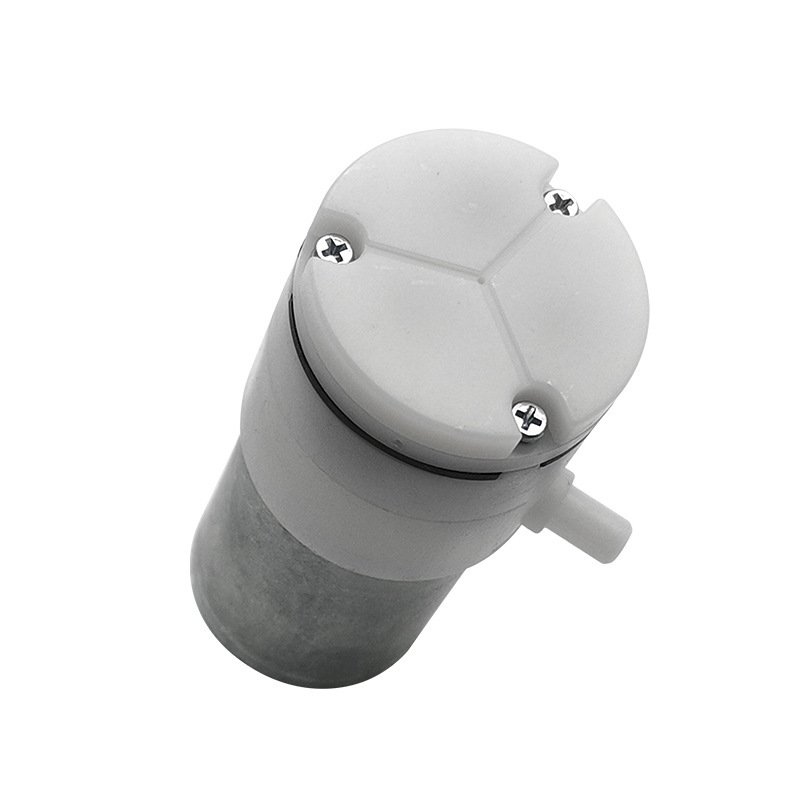

A 12V vacuum pump creates negative pressure by removing air from a closed chamber or pipeline system. Unlike positive air supply pumps, it is designed for suction and vacuum generation requirements.
This structure is suitable for equipment requiring controlled vacuum force, extraction capability, or vacuum holding performance.
Typical applications include:
● Vacuum suction devices
● Sampling systems
● Vacuum fixtures
● Extraction equipment
Performance range:
| Parameter | Specification |
|---|---|
| Flow Range | 2–15 L/min |
| Vacuum Capability | Up to -95 kPa |
12V DC Power Compatibility & Electrical Reliability
For equipment manufacturers, electrical compatibility is an important consideration when integrating a 12V micro air pump into a complete system. A suitable pump configuration should match the power supply characteristics, control method, and operating environment of the equipment.
12V DC air pumps are widely used in automotive systems, battery-powered devices, portable instruments, and industrial control equipment. In these applications, voltage fluctuation, startup current, and power consumption directly affect the stability of the pneumatic system.
Pinmotor designs low power 12V air pump solutions with different motor configurations and control options, helping engineers integrate reliable air sources into compact DC-powered equipment.
Wide Voltage Range Operation for 12V DC Systems
A 12V micro air pump is typically connected to battery systems or regulated DC power supplies. Before selecting a pump, engineers need to confirm the available voltage range and operating conditions of the equipment.
| Parameter | Specification |
|---|---|
| Rated Voltage | 12V DC |
| Operating Voltage Range | 9–16V DC |
| Power Supply Type | Battery system / DC power supply |
| Motor Options | Brushed DC motor / Brushless DC motor |
The operating voltage range allows the pump to adapt to common 12V applications, including vehicle-mounted equipment, portable devices, and embedded pneumatic systems.
For automotive 12V air pump applications, the power system design should also consider battery condition, wiring resistance, and controller compatibility.
Startup Current and Power Consumption Optimization
When a micro air pump starts, the DC motor requires a short period of increased current to overcome mechanical load. Therefore, the power supply capacity should be evaluated according to the pump model and operating condition.
During equipment development, engineers usually consider:
| Consideration | Purpose |
|---|---|
| Startup Current | Ensure the power supply can support motor startup |
| Operating Current | Control overall energy consumption |
| Motor Efficiency | Improve battery-powered equipment runtime |
| Heat Generation |
Maintain stable operation during continuous use |
For portable and battery-operated equipment, selected Pinmotor 12V DC air pump models support PWM speed control, allowing airflow adjustment according to actual system requirements.
Electrical Protection Options for Automotive and Industrial Integration
12V air pump systems used in vehicles and industrial equipment may face challenges such as incorrect wiring, unstable voltage input, and electrical interference.
According to project requirements, Pinmotor can provide customized electrical protection solutions, including:
| Protection Function | Application Benefit |
|---|---|
| Over-voltage Protection | Helps protect the pump from abnormal voltage input |
| Over-current Protection | Reduces risk caused by excessive electrical load |
| Reverse Polarity Protection | Prevents damage from incorrect wiring |
| EMC Optimization | Supports integration with electronic control systems |
For OEM 12V air pump projects, electrical parameters can be customized according to the customer's controller, power system, and application environment.
Need Electrical Support for Your 12V Air Pump Application?
Share your power supply, control requirements, and operating conditions. Our engineers can help evaluate the suitable 12V micro air pump configuration for your equipment.
How to Select a Suitable Air Pump for Your Equipment?
Choosing the right pump requires understanding the working conditions of the equipment and the required air performance. For different applications, factors such as airflow demand, pressure level, vacuum requirement, operating time, and installation space need to be considered together.
For engineers developing portable devices, medical equipment, and industrial systems, selecting the correct pump configuration at the early design stage can improve system stability and reduce later modifications.
| Selection Factor | Engineering Consideration |
|---|---|
| Airflow Output | Match the required air volume with the equipment operating speed and response time |
| Pressure Capability | Select a pump according to the resistance of the air circuit and required output pressure |
| Vacuum Performance | Evaluate suction requirements for air extraction, holding, or sampling systems |
| Working Duration | Consider whether the equipment requires short-time operation or continuous running |
| Installation Conditions | Check available space, mounting position, tubing connection, and maintenance requirements |
| Operating Environment | Consider temperature, humidity, noise level, and application conditions |
Choosing Between Diaphragm, Piston and Vacuum Pump Designs
The pump structure should be selected according to the function of the equipment.
For compact equipment requiring clean airflow and low maintenance, diaphragm pumps are commonly used in applications such as portable instruments, medical devices, and air monitoring equipment.
When the system requires stronger compression performance, a high pressure 12V air pump based on piston technology can provide higher output capability for inflation and pneumatic applications.
For equipment requiring suction or negative pressure generation, a vacuum pump configuration is more suitable, such as vacuum fixtures, sampling equipment, and extraction systems.
Application Requirements for OEM Pump Development
For custom equipment projects, engineers usually evaluate the pump based on the complete system design rather than a single parameter.
Important information includes:
| Required Information | Why It Matters |
|---|---|
| Target airflow and pressure | Helps select the suitable pump performance range |
| Equipment operating cycle | Determines suitable motor and structural configuration |
| Available installation space | Ensures the pump fits the equipment designs |
| Noise requirement | Important for medical, indoor, and portable applications |
| Air medium characteristics | Helps select suitable materials and sealing solutionss |
For OEM applications, Pinmotor provides pump evaluation based on equipment requirements, including prototype testing, design adjustment, and production support.
12V Micro Air Pump Applications
Pinmotor 12V micro air pumps are integrated into various equipment where a compact DC air source is required. Different industries have different requirements for airflow control, installation conditions, operating environment, and system integration.
Based on OEM development experience, Pinmotor supports customers in selecting suitable pump configurations for different equipment designs.
Automotive & Vehicle Air Systems
12V micro air pumps are widely used in vehicle-related equipment because of their compatibility with automotive power systems and compact installation requirements.
Typical applications include:
● Tire inflation equipment
● Vehicle seat adjustment systems
● Lumbar support devices
● RV and commercial vehicle pneumatic systems
For automotive applications, engineers usually consider:
● Available installation space
● Operating vibration conditions
● Working frequency
● Power supply characteristics
● Noise requirements
Pinmotor provides pump configurations suitable for vehicle-mounted equipment development, supporting different installation and performance requirements.
Industrial Automation Equipment
In industrial automation systems, micro air pumps are commonly integrated as pneumatic power components for equipment functions.
Typical applications include:
● Vacuum suction devices
● Automated fixtures
● Material handling equipment
● Inspection and testing machines
During equipment development, engineers typically evaluate:
● Required airflow and pressure conditions
● Continuous operation requirements
● Connection method with existing systems
● Mechanical installation structure
Pinmotor supports OEM customers with pump selection, structural adaptation, and customized configurations according to equipment requirements.
Medical & Portable Equipment
Compact air pumps are widely used in portable and medical-related equipment where space and operating conditions are important considerations.
Typical applications include:
● Medical suction equipment
● Portable diagnostic instruments
● Gas analysis devices
● Air monitoring equipment
For these applications, engineers usually focus on:
● Operating noise
● Equipment size limitations
● Air path design
● Continuous operation requirements
Pinmotor provides suitable pump solutions based on the actual equipment design and application environment.
Environmental Monitoring Equipment
Micro air pumps are used in environmental monitoring systems to provide controlled airflow for gas movement and sampling processes.
Typical applications include:
● Portable gas detectors
● Air quality monitoring equipment
● Gas sampling instruments
● Environmental testing devices
For monitoring applications, pump selection is generally based on:
● Required sampling flow
● Working duration
● Gas compatibility
● Equipment integration requirements
Pinmotor supports customized pump configurations for different monitoring equipment designs.
Need a 12V Micro Air Pump for Your Equipment Application?
Tell us your equipment requirements and application conditions. Pinmotor provides pump selection, customization support, and integration solutions for automotive, industrial, medical, and monitoring equipment.
Pinmotor is a professional micro pump manufacturer with more than 17 years of experience in product development and mass production. With an annual production capacity of over 600,000 micro pumps and cooperation with more than 200 companies worldwide, Pinmotor provides stable OEM supply for automotive, medical, industrial, and monitoring equipment manufacturers.
To ensure product consistency and long-term reliability, Pinmotor has established a quality management system covering material control, production processes, performance testing, and shipment inspection.
IATF16949 Certified Quality Management System
Pinmotor is certified to IATF16949, the internationally recognized quality management standard widely used in the automotive industry.
The IATF16949 quality system focuses on:
● Strict process control during manufacturing
● Supplier and incoming material management
● Production traceability
● Defect prevention and continuous improvement
● Standardized quality procedures
This automotive quality management experience supports the development and production of micro pumps used in vehicle-related equipment and other demanding applications.
Complete Performance Testing Before Shipment
Each micro air pump is inspected before delivery to verify that the product meets defined performance requirements.
Quality inspection includes:
● Airflow testing
● Pressure and vacuum verification
● Leakage inspection
● Operating current measurement
● Noise testing
● Functional operation testing
For OEM projects, Pinmotor can provide additional reliability verification according to customer requirements, including continuous operation testing and application-specific validation.
Compliance & Production Reliability
Pinmotor supports customers with international compliance requirements, including:
● CE certification
● RoHS compliance
● REACH compliance
With automated production processes, standardized inspection procedures, and an annual output exceeding 600,000 units, Pinmotor supports customers from prototype evaluation to stable mass production.
Manufacturing Capability & Quality Assuranc
FAQ About 12V Micro Air Pumps
Can I customize a 12V micro air pump for my equipment?
Yes. Pinmotor supports OEM customization, including mounting structure, tubing connection, electrical interface, and other design requirements.
How can I select the right 12V air pump for my application?
Provide your application details, operating conditions, and equipment requirements. Our engineers will help evaluate the suitable pump configuration.
Can your pump replace my existing air pump?
Yes. Customers can provide the original pump information, and Pinmotor can evaluate compatibility based on dimensions, performance, and installation requirements.
Do you provide samples for testing?
Yes. Sample testing is available before mass production to help customers verify pump performance and equipment integration.
What information is needed for a quotation?
Please provide the application, required performance, installation requirements, and estimated order quantity for accurate evaluation.
Can the pump design be modified for different equipment?
Yes. Pinmotor can adjust pump structure, mounting design, and connection methods according to customer equipment requirements.
What is the lead time for customized pumps?
Lead time depends on product configuration, customization requirements, and order quantity. Standard models usually have shorter delivery cycles.
Do you support long-term OEM supply?
Yes. Pinmotor supports OEM customers from prototype testing to volume production with stable manufacturing capacity and quality control.
Need a 12V Micro Air Pump for Your Next Project?
Tell us your equipment requirements, operating conditions, and pump specifications. Pinmotor engineers will help evaluate the suitable pump configuration and provide OEM support from prototype testing to mass production.
