High-Pressure Micro Water Pump | OEM & Custom Solutions
Pinmotor supplies high pressure micro water pumps for compact OEM equipment that needs stronger liquid pressure, stable delivery, and controlled water output. Pressure options can be matched from 30–130 PSI, with voltage, flow rate, suction height, connector, automatic pressure switch, and material options selected according to the customer’s water path.
How to Choose the Right Pressure Range
For high pressure micro water pump projects, pressure should be confirmed before voltage, size, or connector type. Different water paths require different PSI levels. If the pressure is too low, the spray, RO membrane, or cleaning output may not work properly. If the pressure is too high, tubing, seals, and connectors may face leakage risk.
| Pressure Level | PSI Range | Bar Range | Typical Use |
|---|---|---|---|
| Low Pressure | 30–45 PSI |
2–3 Bar | Sprayers, misting systems, small rinsing modules |

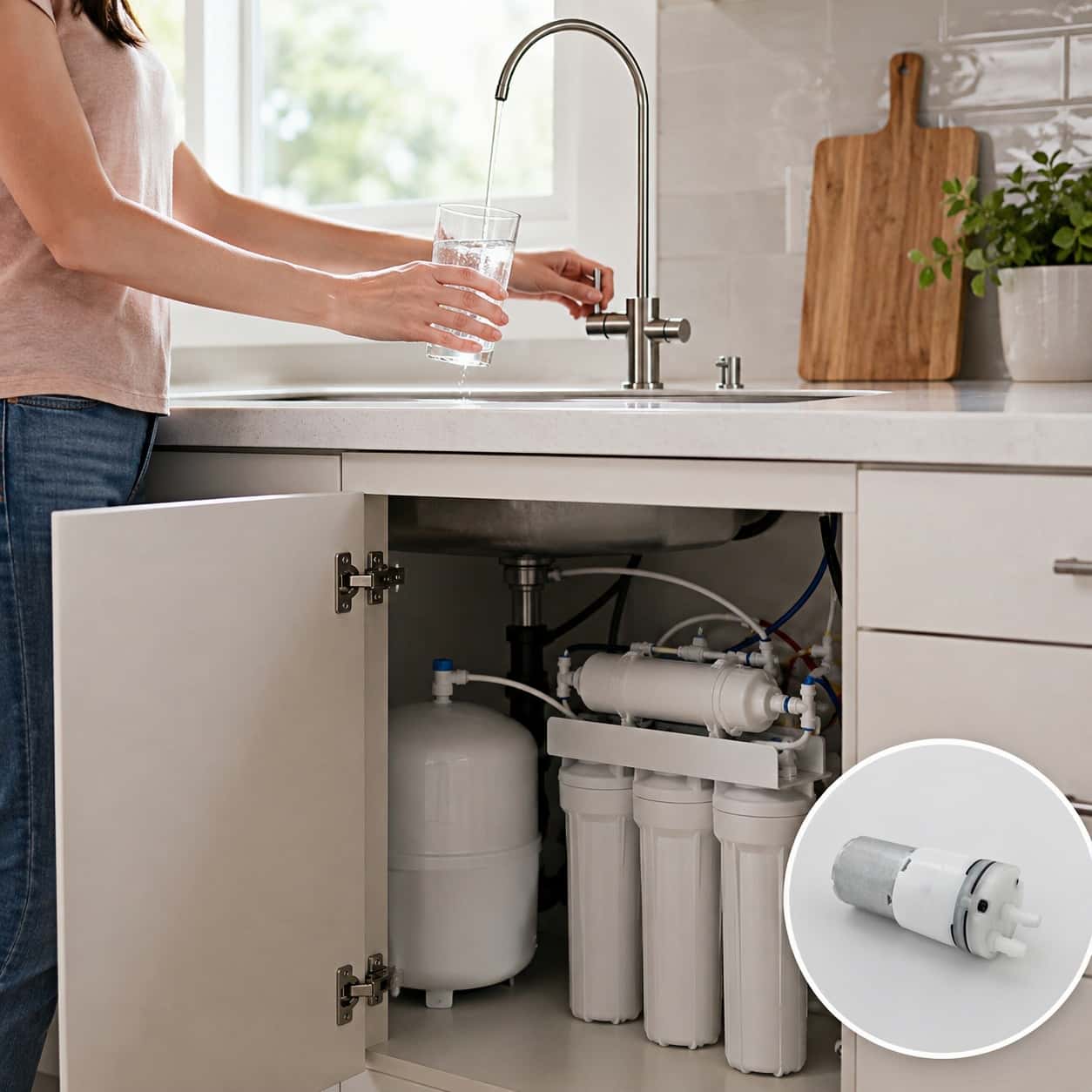

| Medium Pressure | 45–70 PSI | 3–5 Bar | RO systems, beverage equipment, chemical spraying |
| High Pressure | 70–100 PSI |
5–7 Bar | Pressurized transfer, equipment rinsing, resistant water paths |
| Maximum Micro Pressure | 100–130 PSI |
7–9 Bar | Compact washing, agricultural spraying, booster systems |
Selection Note:
Micro high pressure water pumps are designed for compact OEM equipment with pressures up to 130 PSI. They are distinct from household pressure washers, which often operate above 2000 PSI. Ensure the nozzle size, tubing length, liquid type, working cycle, and target pressure are confirmed before selecting a pump model.

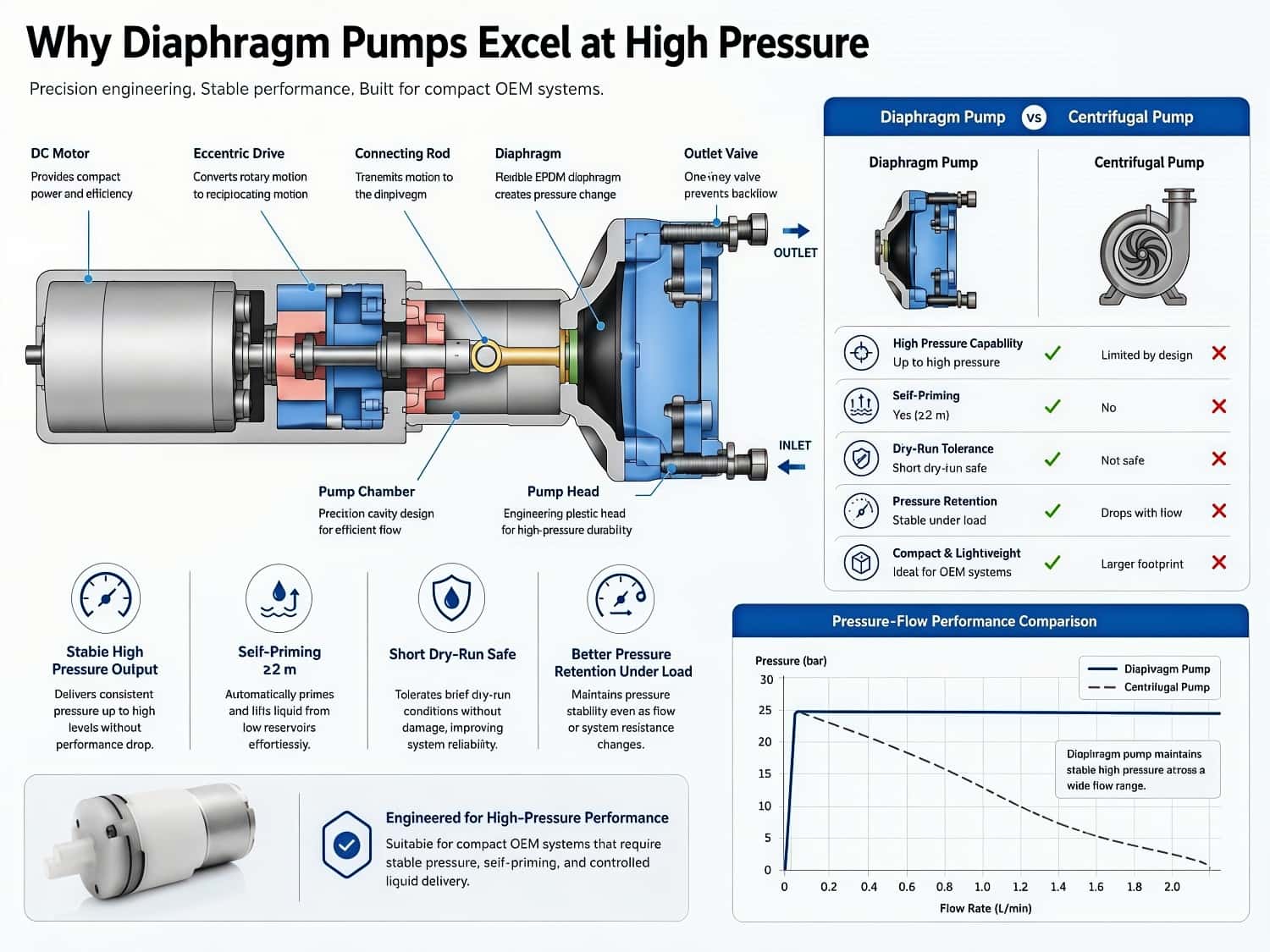

Why Diaphragm Pumps Excel at High Pressure
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Self-Priming Capability
High-pressure diaphragm pumps can achieve suction heights ≥2 m, eliminating the need for manual priming or positive pressure supply.
Dry-Run Safety
Diaphragm pumps tolerate short-term dry running without damage, while centrifugal pumps risk seal and impeller failure.
High-Pressure Flow Performance
Diaphragm pumps produce a near-vertical pressure vs. flow curve, maintaining pressure under load. Centrifugal pumps typically show significant pressure drop as flow increases.
Core Performance Features
A high pressure micro water pump should be selected by pressure range, suction head, voltage, connector size, liquid type, and working cycle. Different Pinmotor models cover different pressure and flow requirements, so sample testing should be based on the real tubing, nozzle, and device structure.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Application Scenarios: Where Brushless Matters
Brushless micro water pumps are mainly used when the device needs longer running stability, lower noise, cleaner liquid transfer, or adjustable flow control.
24/7 Continuous Operation
Some devices need the pump to run frequently or for long working cycles. A brushless micro water pump reduces carbon brush wear risk and is more suitable for systems where pump failure may stop the whole device.
Typical Applications:
Cooling circulation systems, laser equipment cooling, communication device cooling, compact water circulation modules, equipment water loops.
Noise-Sensitive Environments
For indoor or user-facing devices, pump noise can directly affect the final product experience. When the project requires ≤40dB noise performance, a brushless micro water pump with magnetic drive structure is a better option for medical devices, home appliances, office equipment, coffee machines, and other quiet-use products.
Typical Applications:
Medical devices, home appliances, office equipment, coffee machines, smart water devices, indoor cleaning equipment.
Food-Grade & Clean Water Systems
For products that move drinking water, coffee water, or clean liquid, the pump needs stable liquid transfer and suitable liquid-contact materials. Brushless motor design also avoids carbon brush wear particles in the motor area.
Typical Applications:
Water dispensers, coffee machines, humidifiers, beverage equipment, drinking water systems, compact kitchen appliances.
Precision Flow Control
Some devices need adjustable water output instead of fixed flow. Brushless micro water pumps can support PWM speed control, allowing the device to adjust pump output according to the control program.
Typical Applications:
Analytical instruments, dosing systems, laboratory equipment, testing devices, medical liquid modules, controlled water supply systems.
Not Sure Which Brushless Pump to Choose?
Send your application details and target parameters. Pinmotor will help compare pump options for performance, cost, and production fit.
OEM & Customization Options
Pinmotor supports brushless micro water pump customization for OEM projects that need specific voltage, lifetime target, control method, protection function, and branding requirements. Custom options can be matched according to the device structure, water path, control board, working cycle, and production plan.
Available DC voltage platforms include 3V, 5V, 6V, 9V, 12V, and 24V. The final voltage should be selected according to the device power system, flow target, pressure or head requirement, and motor load.
Brushless pump solutions can be matched by expected working life, such as standard 20,000h or long-life 30,000h+ targets. For special duty cycles, service life can be reviewed based on real working conditions.
Speed control options can include PWM control, analog voltage control, or fixed-speed operation. PWM is suitable for devices that need adjustable flow output.
For projects that require pump status monitoring, FG speed pulse output can be selected. If the device does not need feedback control, a no-signal version can be used to reduce system complexity.
Protection options can be selected according to project needs, including over-current, over-voltage, dry-run, stall, and reverse polarity protection. These functions help reduce motor damage risk in abnormal working conditions.
Pinmotor can support logo printing, custom packaging, product labeling, and private label supply for OEM and ODM buyers.
Requirement Review
Solution Design
Sample in 5–7 Working Days
Performance Adjustment
Bulk Production in 14–21 Working Days
Why Choose Pinmotor Brushless Micro Water Pump?
Pinmotor is a leading manufacturer of brushless micro pumps, providing stable, reliable, and customizable solutions for OEM projects across the globe. With over 14 years of experience and a dedicated production line for brushless pumps, Pinmotor ensures consistent quality and fast delivery for a wide range of industrial and consumer applications.
High Production Capacity
Annual output reaches 50 million units, with daily production up to 400,000 units, supported by 85% automated processes to maintain efficiency and reduce human error.
Flexible Order Quantities and Fast Turnaround
Supports MOQ as low as 500 units, samples from 5–50 units, with a typical delivery lead time of 7–15 days, allowing rapid prototyping and scaling for OEM projects.
Global Certifications
All production is ISO9001 certified, with compliance to RoHS, REACH, CE, and EMC, ensuring safe, reliable, and globally exportable components.
Comprehensive Brushless Pump Series
Pinmotor covers a wide range of brushless micro pump types, adaptable for multiple voltages, flow rates, pressures, and device integration needs.
FAQ About brushless micro water pump
How much longer does a brushless micro water pump last compared to a brushed one?
Brushless pumps typically last 20,000–30,000 hours, compared to 2,000–5,000 hours for brushed pumps, significantly reducing replacement and maintenance needs.
Can I adjust the flow rate on a brushless micro water pump?
Yes, brushless pumps support PWM speed control, allowing precise, stepless adjustment of flow for diverse OEM applications.
Is a brushless micro water pump quieter than a brushed pump?
Yes, the magnetic drive in brushless pumps keeps operational noise ≤40–45dB, making them ideal for medical, home appliances, office, and other noise-sensitive devices.
What does FG signal output mean on a brushless water pump?
FG (Frequency Generator) provides pulse signals reflecting real-time pump rotation, enabling closed-loop monitoring and integration with control boards for stable operation.
Can a brushless micro water pump run 24/7 without maintenance?
Yes, brushless pumps are maintenance-free under normal operating conditions, avoiding downtime and ongoing service costs.
Is a brushless pump worth the higher upfront cost?
For long-term projects, brushless pumps reduce total ownership cost due to extended lifespan, lower maintenance, and consistent performance, providing higher ROI than brushed alternatives.
Find the Right Brushless Micro Water Pump
Tell us your voltage, flow, pressure, control, and installation needs. Pinmotor will help you select the right pump before mass production.
