Precision Constant-Flow Performance of Miniature Air Sampling Pumps
Flow Range & Sampling Performance
Pinmotor provides miniature air sampling pumps with different airflow capabilities to match various sampling system requirements.
| Flow Category | Flow Range | Performance Characteristics | Typical Applications |
|---|---|---|---|
| Low Flow Sampling | 0.3 – 1.5 L/min | Compact design with low power consumption for portable instruments | Portable gas detectors, PID sensors, handheld monitoring devices |
| Medium Flow Sampling | 2 – 5 L/min | Balanced airflow performance for continuous monitoring systems | Environmental monitoring equipment, CEMS analyzers, gas analysis instruments |
| High Flow Sampling | 6 – 12 L/min |
Higher airflow output for larger sampling requirements |
Industrial hygiene sampling, dust monitoring systems, industrial analysis equipment |
Vacuum & Pressure Capability for Gas Sampling Systems
Mini air sampling pumps need sufficient suction and airflow capability to overcome resistance from sampling tubes, filters, and internal gas paths.
| Performance Parameter | Specification | Application Value |
|---|---|---|
| Maximum Vacuum | -50 kPa to -85 kPa (Model dependent) | Supports gas collection through sampling lines and filtration systems |
| Maximum Pressure | 1.5 – 3.5 bar (Model dependent) | Enables positive airflow delivery and gas transfer applications |
| Pump Structure | Oil-free diaphragm design |
Helps maintain clean airflow for sampling applications |
The combination of vacuum suction and pressure output provides flexibility for different gas sampling system designs.
Low-Pulsation Diaphragm Design for Stable Sampling Output
Stable airflow is essential for analytical instruments and monitoring systems. Pinmotor pumps use optimized diaphragm movement and valve structures to reduce airflow fluctuation during operation.
Key design advantages:
| Design Feature | Benefit |
|---|---|
| Optimized diaphragm movement | Improves airflow consistency |
| Precision valve structure | Supports stable gas transfer |
| Compact pump chamber design | Reduces installation space requirements |
| PWM speed adjustment (selected models) | Enables airflow optimization according to system demand |
Motor Options & Service Life for Continuous Sampling Applications
Designed for professional monitoring equipment, Pinmotor miniature air sampling pumps provide reliable performance for continuous and repeated sampling operations.
| Configuration | Features | Suitable Applications |
|---|---|---|
| Brushed DC Motor Versionm | Cost-effective solution with simple control | Portable sampling devices and standard monitoring equipment |
| Brushless DC Motor Version | Longer service life, lower vibration, PWM speed control support | Continuous monitoring systems and analytical instrumentss |
| Oil-Free Diaphragm Structure | No lubrication required during normal operation |
Gas analysis and clean sampling applications |
Need Help Selecting the Right Air Sampling Pump?
Our engineers can recommend the most suitable miniature air sampling pump based on flow range, vacuum requirements, and equipment integration needs.
Full Product Lineup of Micro Air Sampling Pumps by Flow Requirements
Pinmotor offers micro diaphragm air pumps for gas sampling and air monitoring equipment. Different pump configurations are available according to airflow requirements, installation space, and working conditions.
The product range covers low-flow portable instruments, medium-flow monitoring equipment, and higher-flow analytical systems. These pumps are used in VOC detection equipment, CEMS systems, air quality monitors, and other gas analysis instruments.
Portable Low-Flow Sampling Pumps
The low-flow series is developed for portable instruments that require compact dimensions and low power consumption. The small structure makes it easier to install inside handheld detectors and battery-powered monitoring devices.
| Model | Peak Flow | Maximum Vacuum | Voltage | Size | Weight | Typical Applications |
|---|---|---|---|---|---|---|
| 370-XA | 0.5–3.0 LPM | According to configuration | DC 3V / 6V / 9V / 12V | Compact design | Approx. 36g | Portable gas detectors, VOC detectors, air quality monitoring devices |
| 370-XB | 0.5–3.0 LPM | According to configuration | DC 3V / 6V / 9V / 12V | Compact design | Approx. 36g | PID sensors, portable analyzers, compact sampling instruments |
Features
● Small size for limited installation space
● Low power consumption for portable equipment
● Suitable for intermittent and continuous sampling applications
● Easy integration into compact instruments
Standard Medium-Flow Sampling Pumps
The medium-flow series is commonly used in environmental monitoring and gas analysis equipment where higher airflow output is required.
Compared with portable models, this series provides stronger air delivery capability while maintaining a compact structure for OEM equipment integration.
| Model | Peak Flow | Maximum Pressure | Voltage Options | Typical Applications |
|---|---|---|---|---|
| 310-XB | 0.5–3.0 LPM | ≥400mmHg | DC 3V / 6V / 9V / 12V | VOC monitoring equipment, gas analyzers, air sampling systems |
Features
● Suitable for OEM monitoring equipment
● Stable airflow output for sampling systems
● Multiple voltage options available
● Compact design for instrument integration
High-Performance Sampling Pumps
For equipment requiring higher airflow capacity, the high-performance series uses a dual-head diaphragm structure to increase air output while maintaining compact dimensions.
These pumps are used in larger sampling systems, industrial gas analysis equipment, and applications requiring stronger airflow performance.
| Model | Peak Flow | Maximum Pressure | Voltage Options | Typical Applications |
|---|---|---|---|---|
| 3042-X | 4.0–13.0 LPM | ≥80KPa (450mmHg) | DC 3.7V / 6V / 12V / 13.5V / 24V | CEMS equipment, industrial gas sampling systems, analytical instruments |
Features
● Dual-head diaphragm structure for higher airflow output
● Supports multiple DC voltage requirements
● Suitable for larger sampling volume applications
● Compact alternative to traditional air supply systems
Need a Pump Designed for Your Equipment?
From prototype testing to mass production, Pinmotor works with equipment manufacturers to develop micro air pump solutions for different applications.

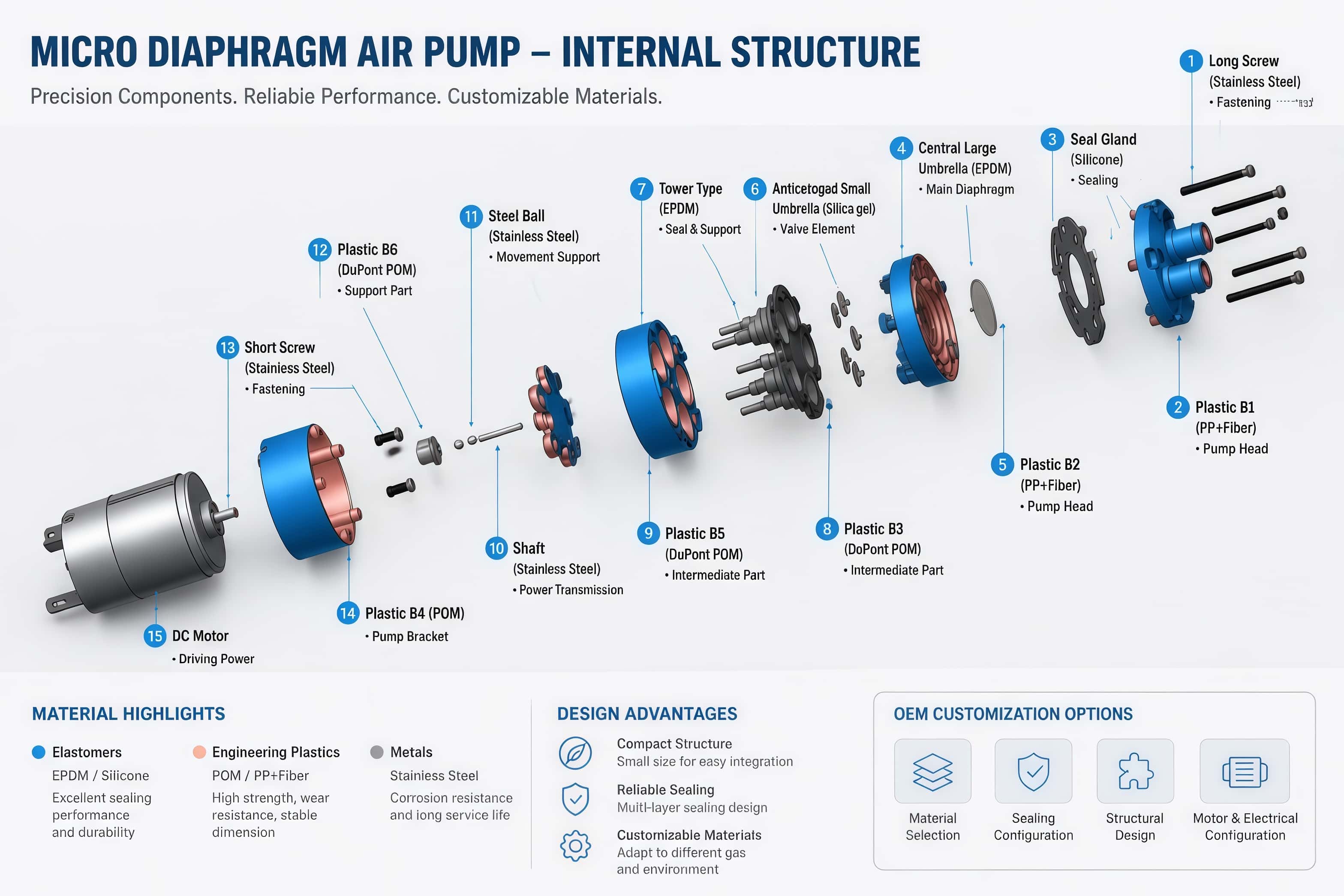

Material & Design for Sampling Reliability
The material selection of a micro diaphragm air pump plays an important role in sealing performance, mechanical stability, and long-term operation reliability.
Pinmotor provides different material combinations according to application requirements, including gas compatibility, operating environment, sealing requirements, and equipment integration conditions. In addition to standard configurations, customized materials and structural solutions are available for OEM projects.
Diaphragm & Seal Materials
The diaphragm and sealing components are key parts that directly affect air tightness and pumping performance. Different elastomer materials can be selected according to the working environment and media compatibility requirements.
Pump Head Construction & Structural Materials
The pump structure consists of precision-engineered plastic components, sealing parts, and metal drive components. Material selection affects mechanical strength, dimensional stability, and assembly consistency.
| Component | Standard Material / Options | Function |
|---|---|---|
| Pump Structural Components | PP + Fiber / Customized Engineering Plastics | Provides mechanical support and lightweight construction |
| Precision Moving Components | DuPont POM / Customized Engineering Plastics | Reduces friction and maintains dimensional accuracy |
| Shaft & Fastening Parts | Stainless Steel / Customized Metal Materials | Provides mechanical strength and durability |
| Valve Supporting Components | Engineering Plastics / Customized Materials | Maintains stable valve operation |
Pinmotor supports customized material selection for pump structures according to different requirements, including strength, weight, chemical resistance, and operating conditions.
Anti-Condensation & Environmental Adaptation Design
For air sampling and gas monitoring applications, environmental conditions may affect pump operation. Pinmotor can optimize the internal structure and material configuration according to specific application requirements.
| Design Option | Function | Application Benefit |
|---|---|---|
| Optimized Air Path Design | Improves internal airflow passage and reduces unnecessary resistance | Helps maintain stable pump operation |
| Water-Resistant Structure Design | Enhances protection between airflow chamber and motor section | Improves reliability in humid environments |
| Customized Sealing Configuration | Adjusts sealing materials according to operating conditions | Improves compatibility with different gases and environments |
| Material Optimization | Selects suitable diaphragm, valve, and structural materials | Meets different OEM application requirements |
| Material Option | Characteristics | Suitable Applications |
|---|---|---|
| EPDM (Ethylene Propylene Rubber) | Standard sealing material with good aging resistance and stable elasticity | General air, non-aggressive gases, standard pneumatic applications |
| Silicone Rubber | Flexible sealing performance and good temperature resistance | Medical equipment, air sampling instruments, precision pneumatic devices |
| FKM (Fluoro Rubber) | Excellent resistance to oils, chemicals, and harsh environments | Applications requiring higher chemical compatibility |
| PTFE (Polytetrafluoroethylene) | High chemical resistance and low friction characteristics | Special gas applications requiring advanced corrosion resistance |
| Customized Materials | Material selection according to specific operating conditions | OEM projects with special requirements |

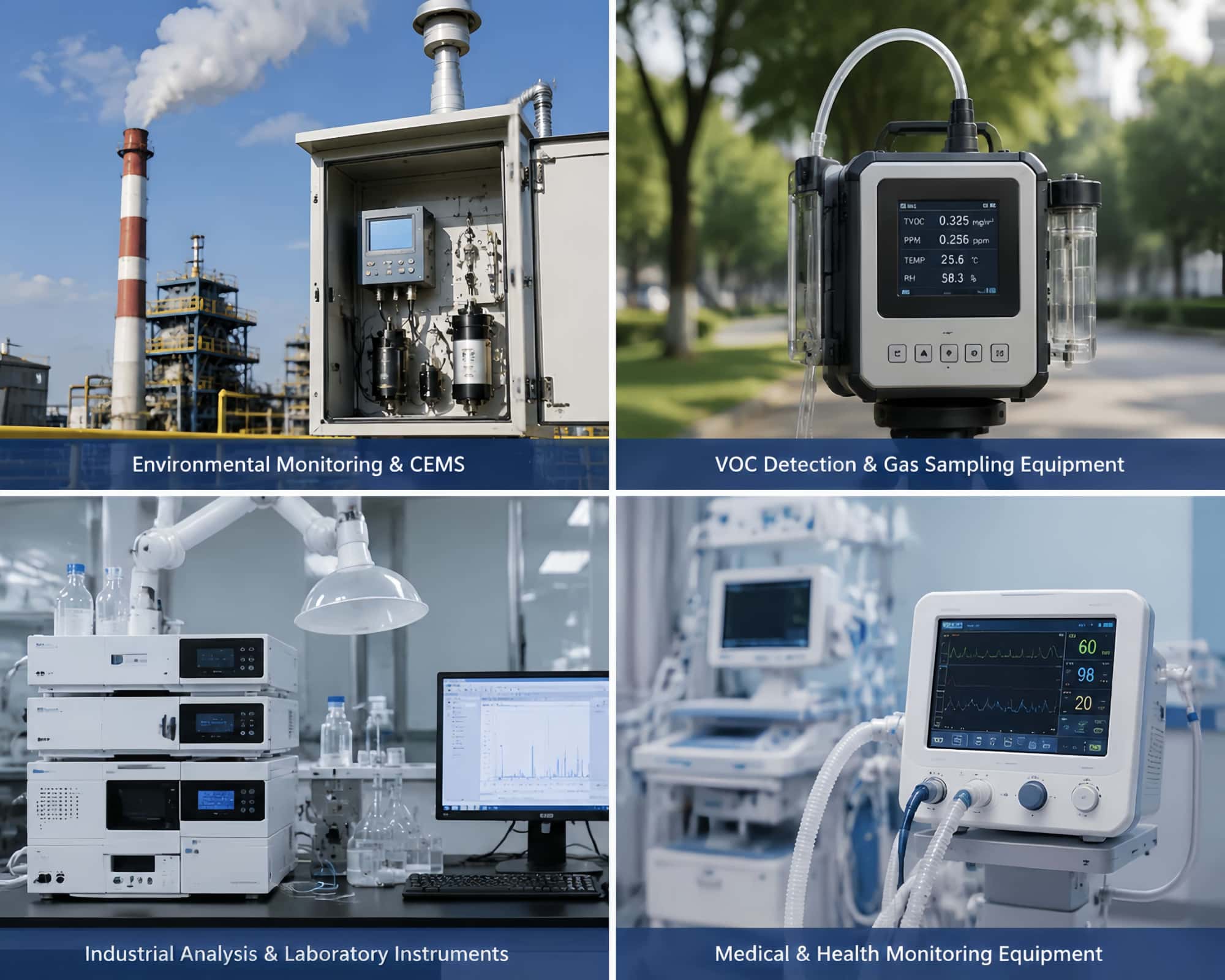

Micro Air Sampling Pump Applications
Pinmotor micro diaphragm air & vacuum pumps are widely used in OEM systems requiring stable airflow, vacuum suction, and compact integration. Based on the series platform, our pumps support a wide range of applications from portable devices to industrial automation systems.
Environmental Monitoring & CEMS Applications
Environmental monitoring systems require continuous gas extraction and transportation to deliver samples from the measurement point to the analysis module.
Micro air sampling pumps are commonly integrated into:
● Continuous Emission Monitoring Systems (CEMS)
● Industrial exhaust gas monitoring equipment
● VOC online monitoring systems
● Ambient air quality monitoring stations
● Pollution source detection equipment
VOC Detection & Gas Sampling Equipment
VOC monitoring equipment requires a reliable sampling source to transport air or gas from the detection point to the sensor chamber.
Micro diaphragm air pumps are used in:
● Portable VOC detectors
● PID gas detection instruments
● Indoor air quality monitors
● Gas sampling analyzers
Industrial Analysis & Laboratory Instruments
Gas analysis instruments require consistent sample delivery to maintain measurement accuracy and repeatability.
Pinmotor micro air sampling pumps can be used in:
● Gas analysis instruments
● Laboratory testing equipment
● Gas sensor calibration systems
● Sampling preparation units
Medical & Health Monitoring Equipment
Compact diaphragm air pumps are also used in medical and health monitoring devices where clean airflow, low noise, and small installation size are required.
Typical applications include:
● Respiratory monitoring equipment
● Medical analysis instruments
● Portable health monitoring devices
● Air quality monitoring systems
Need a Micro Air Sampling Pump for Your Equipment Design?
Pinmotor supports OEM customization for gas sampling, monitoring, and analytical equipment, including pump configuration, material selection, and structural adaptation.
OEM Customization & Engineering Support
Performance Adjustment
Pump performance can be adjusted according to system requirements, including:
● Airflow range optimization
● Vacuum performance adjustment
● Pressure output adjustment
● Operating voltage selection
These adjustments help the pump match different system resistance and working conditions.
Material & Component Customization
Different applications may require different material combinations.
Pinmotor supports customization of key components, including:
● Diaphragm material selection
● Valve and sealing material adjustment
● Engineering plastic component selection
● Structural material optimization
Material selection can be adjusted according to requirements such as sealing performance, gas compatibility, and operating environment.
Electrical & Control Customization
According to equipment control requirements, different electrical configurations can be provided:
● Different DC voltage options
● Brushed or brushless motor configurations
● PWM speed control (available for selected models)
● Customized wiring and connector options
Structural Design Customization
For OEM equipment integration, pump structure can be adjusted according to installation requirements:
● Mounting hole positions
● Air inlet and outlet direction
● Connection interface design
● External dimensions and installation layout
This helps simplify pump installation inside compact equipment.
Sample Testing & Delivery Support
For OEM projects, Pinmotor supports sample evaluation before mass production.
● Sample preparation according to confirmed specifications
● Testing with customer equipment before final approval
● Production arrangement after technical confirmation
Typical lead time:
● Standard products: around 14-21 working days
● Customized products: depending on modification requirements and project complexity
FAQ About Micro Air Sampling Pumps
What is a micro diaphragm air pump used for?
Micro diaphragm air pumps are used for air and gas transfer in equipment such as gas detectors, monitoring instruments, analytical systems, and portable devices.
Can micro air sampling pumps work continuously?
Yes. Different pump configurations can be selected according to operating time, working conditions, and equipment requirements.
Are micro diaphragm air pumps suitable for portable devices?
Yes. Their compact size, DC power supply options, and lightweight design make them suitable for portable monitoring and testing equipment.
What should be considered when selecting a micro air pump?
Key factors include airflow requirement, pressure or vacuum demand, power supply, installation space, and operating environment.
Can the pump be integrated with filters and sampling tubes?
Yes. Micro air sampling pumps can be integrated with external components such as filters, tubing, and sampling modules according to system design.
Does Pinmotor provide OEM customization?
Yes. Pinmotor supports customization of pump structure, materials, voltage configuration, and installation design for different equipment requirements.
Can customers test samples before bulk production?
Yes. Sample testing is available to verify pump performance and compatibility with customer equipment before mass production.
What is the typical lead time for micro air sampling pump orders?
For standard models, production can usually be arranged quickly after order confirmation. Customized projects may require additional time for sample verification and design confirmation before mass production.
