Oil-Free Micro Diaphragm Air Pump Manufacturer
Oil-free micro diaphragm air pumps used in medical, industrial, and analytical systems where stable airflow and reliable operation are required. OEM and ODM customization is supported for different device integration needs.
Stable Performance Oil-Free Diaphragm Pumps for Industrial Systems
Pinmotor micro diaphragm air pumps deliver stable airflow for medical, industrial, and gas sampling systems.
The series covers a wide operating range, with flow options from 0.3 to 30 LPM, pressure capability up to 300 kPa, and vacuum performance down to -98 kPa depending on model configuration.

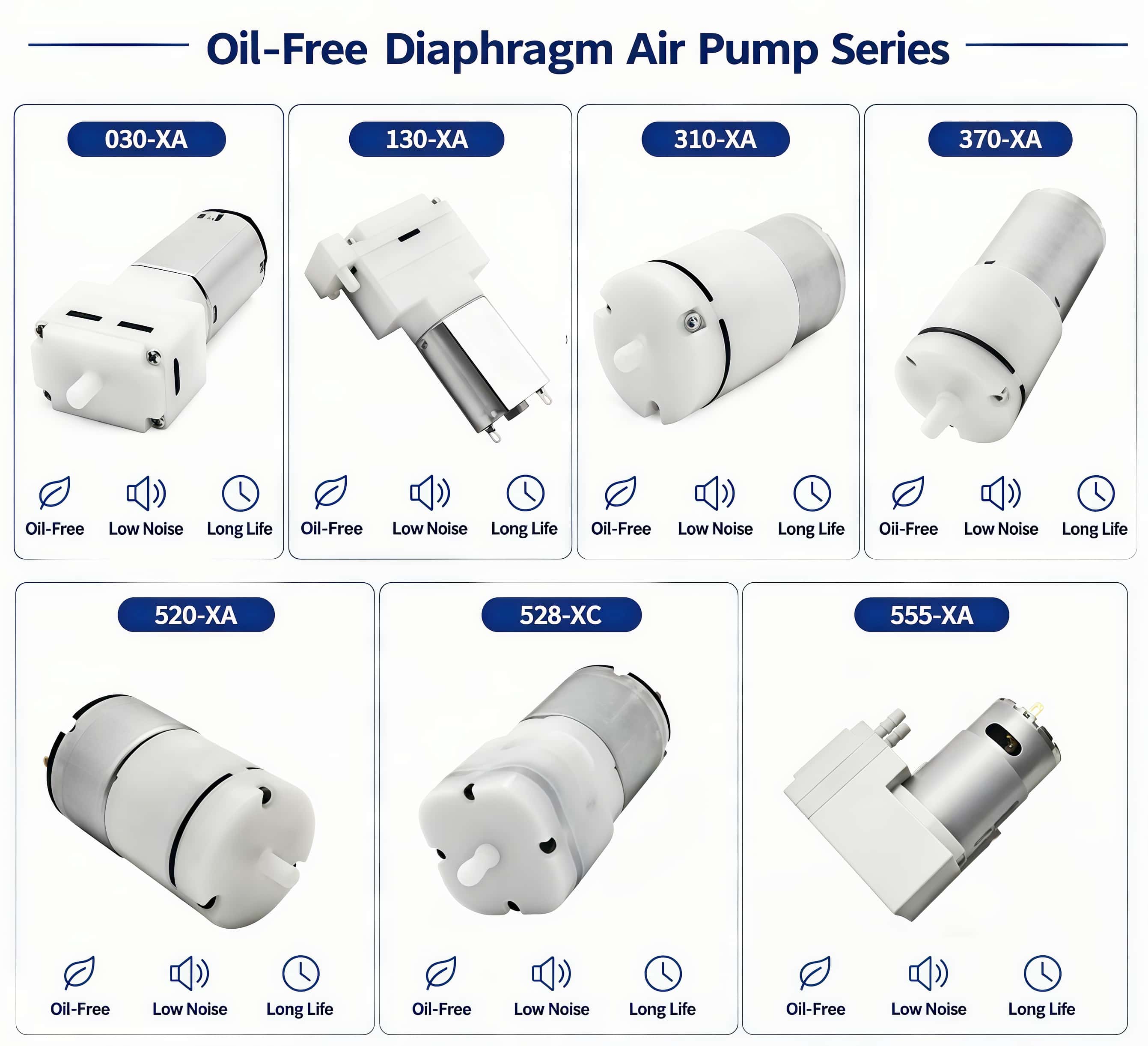

| Series | Flow Range | Pressure / Vacuum | Voltage | Corresponding Model | Product Role |
|---|---|---|---|---|---|
| Compact Low Flow Series | 0.3 – 1 LPM | Low pressure / low vacuum | 3–5V DC | 030-XA | Miniature portable devices |
| Small Flow Series | 1 – 3 LPM | Stable low pressure | 3–6V DC | 130-XA | Medical devices/Beauty instruments |
| Standard Series | 2 – 8 LPM | Medium vacuum / pressure | 5–12V DC | 310-XA | Medical/Gas Detection |
| Balanced Performance Series | 2 – 8 LPM | -80 to -95 kPa | 5–12V DC | 370-XA / XF | Medical/Environmental Monitoring |
| High Flow Series | 8 – 20 LPM | Higher pressure output | 12–24V DC | 520-XA | Industrial/Automation |
| High Performance Series | 10 – 25 LPM | up to ~300 kPa | 12–24V DC | 528-XC | Industrial Systems / Pneumatic Equipment |
| Maximum Output Series | 20 – 30 LPM | High pressure / max flow | 12–24V DC | 555-XA | High-load industrial applications |
Not Sure Which Model Fits Your Application?
From compact devices to industrial systems, we help you select the right diaphragm pump based on your exact requirements.
Micro Air Pumps for Industrial & Medical OEM Applications
Pinmotor provides micro air pump solutions for applications including medical devices, beauty equipment, environmental monitoring instruments, consumer electronics, automotive systems, and industrial equipment.Our product portfolio covers different airflow, pressure, voltage, and installation requirements, supporting both standard products and OEM customization.
What We Support
Performance Specifications Overview
Pinmotor micro air pumps are available in multiple technologies to accommodate different airflow, pressure, vacuum, and power requirements. The table below summarizes the typical performance ranges of each pump category, providing a practical reference for preliminary product selection.
| Series | Flow Range | Pressure Range | Voltage Options | Typical Life |
|---|---|---|---|---|
| Diaphragm Air Pumps | 0.5 – 15 LPM | Vacuum: Up to -80 kPa Pressure: Up to +100 kPa |
3 – 24V D | 3,000 – 10,000 hrs |

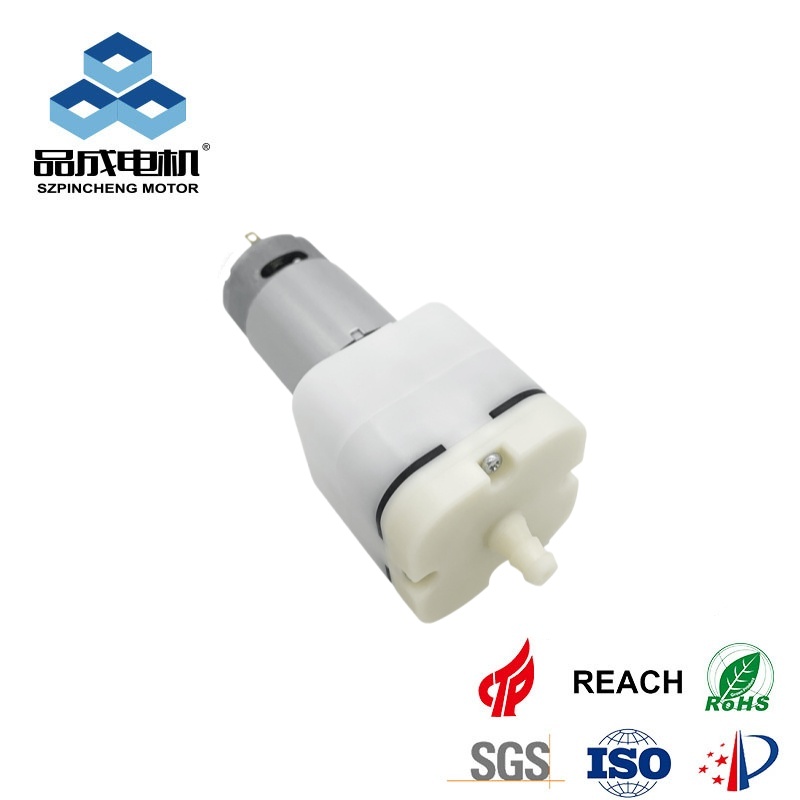

| Piston Air Pumps | 2 – 20 LPM | Pressure: Up to +300 kPa | 12 – 24V DC | 8,000 – 12,000 hrs |
| High-Pressure Piston Pumps | 5 – 30 LPM | Pressure: Up to +400 kPa | 12 – 24V DC | 12,000 – 15,000 hrs |
| Dual-Purpose Pumps | 1 – 12 LPMM | Vacuum: Up to -85 kPa Pressure: Up to +120 kPa |
3 – 24V DC | 5,000 – 10,000 hrs |
| Sampling Pumps | 0.3 – 8 LPM | Vacuum: Up to -70 kPa Pressure: Up to +60 kPa |
3 – 12V DC | 5,000 – 8,000 hrs |
All specifications can be customized through our OEM and ODM development programs.
Why Choose Our Micro Air Pumps
Quality Control & Reliability Testing
Consistent airflow, stable pressure, and long service life are critical for compact device projects, which is why every micro air pump model is verified through performance and reliability checks before delivery.
Life Cycle Testing
Our micro air pump models are tested for repeated operation to verify service life and long-term performance stability.
Noise Testing
Noise level is checked to support low-noise applications such as medical, beauty, and portable devices.
Airflow & Pressure Consistency Check
Airflow and pressure are verified to confirm stable performance across samples and production batches.
Incoming Material & Finished Product Inspection
Incoming materials and finished products are inspected to support reliable assembly quality and stable supply.
Best Mini Air Pump Manufacturer and Exporter In China
We can provide the best price and technical support for commercial projects.
What Industries Are Pinmotor Micro Air Pumps Used In?
Pinmotor micro air pumps are used in medical devices, industrial equipment, automotive auxiliary systems, consumer products, and environmental monitoring instruments. Different pump technologies are selected according to airflow requirements, pressure levels, vacuum capability, noise limitations, and installation constraints.
Medical & Healthcare
Medical applications often require oil-free airflow, stable pressure output, and compact dimensions.
Typical Applications
- Nebulizers and respiratory therapy devices
- Blood pressure monitors
- Intermittent pneumatic compression (IPC) systems
- Negative pressure wound therapy (NPWT) devices
- In-vitro diagnostic (IVD) equipment
- Portable medical suction devices
- Laboratory analytical instruments
-
Applicable Pump Types:
- Diaphragm Air Pumps
- Dual-Purpose Pumps
- Sampling Pumps
Industrial & Automation
Industrial equipment may require vacuum generation, pressure output, or continuous airflow for control and monitoring functions.
Typical Applications
- Gas detection instruments
- Environmental monitoring equipment
- Pneumatic control systems
- Laboratory automation devices
- Industrial coding and marking systems
- Vacuum handling equipment
- Small pneumatic actuators
Applicable Pump Types:
- Piston Air Pumps
- High-Pressure Piston Pumps
- Dual-Purpose Pumps
Automotive & Transportation
Compact size and vibration resistance allow integration into selected automotive systems.
Typical Applications
- Seat massage systems
- Vehicle-mounted inflation devices
- Auxiliary vacuum modules
- Sensor testing and calibration equipment
- Cabin comfort systems
Applicable Pump Types:
- Diaphragm Air Pumps
- Piston Air Pumps
Consumer & Personal Care
Consumer products often prioritize compact dimensions, low operating noise, and low power consumption.
Typical Applications
- Beauty and skincare devices
- Facial cleansing equipment
- Massage devices
- Home healthcare products
- Aromatherapy equipment
- Portable inflation products
Applicable Pump Types:
- Diaphragm Air Pumps
- Dual-Purpose Pumps
Environmental Monitoring & Gas Analysis
Gas sampling applications require stable flow characteristics and consistent operating performance.
Typical Applications
- Air quality monitoring instruments
- Portable gas analyzers
- Environmental sampling equipment
- Emission testing devices
- Multi-gas detectors
- Portable analytical instruments
Applicable Pump Types:
- Sampling Pumps
- Diaphragm Air Pumps
Custom OEM / ODM Solutions
Many applications require pump specifications that differ from standard models. Pinmotor provides customization services based on airflow, pressure, installation, electrical, and acoustic requirements. Modifications can range from parameter adjustments to dedicated pump development for specific projects.
Customization Capabilities
Many applications require pump specifications that differ from standard models. Pinmotor provides customization services based on airflow, pressure, installation, electrical, and acoustic requirements. Modifications can range from parameter adjustments to dedicated pump development for specific projects.
Performance Customization
Performance parameters can be adjusted according to application requirements:
- Airflow rate adjustment
- Pressure and vacuum optimization
- Power consumption control
- Efficiency optimization
- Duty cycle matching
Structural Customization
Mechanical configurations can be modified to fit different device layouts:
- Mounting methods and brackets
- Port size and orientation
- Housing dimensions

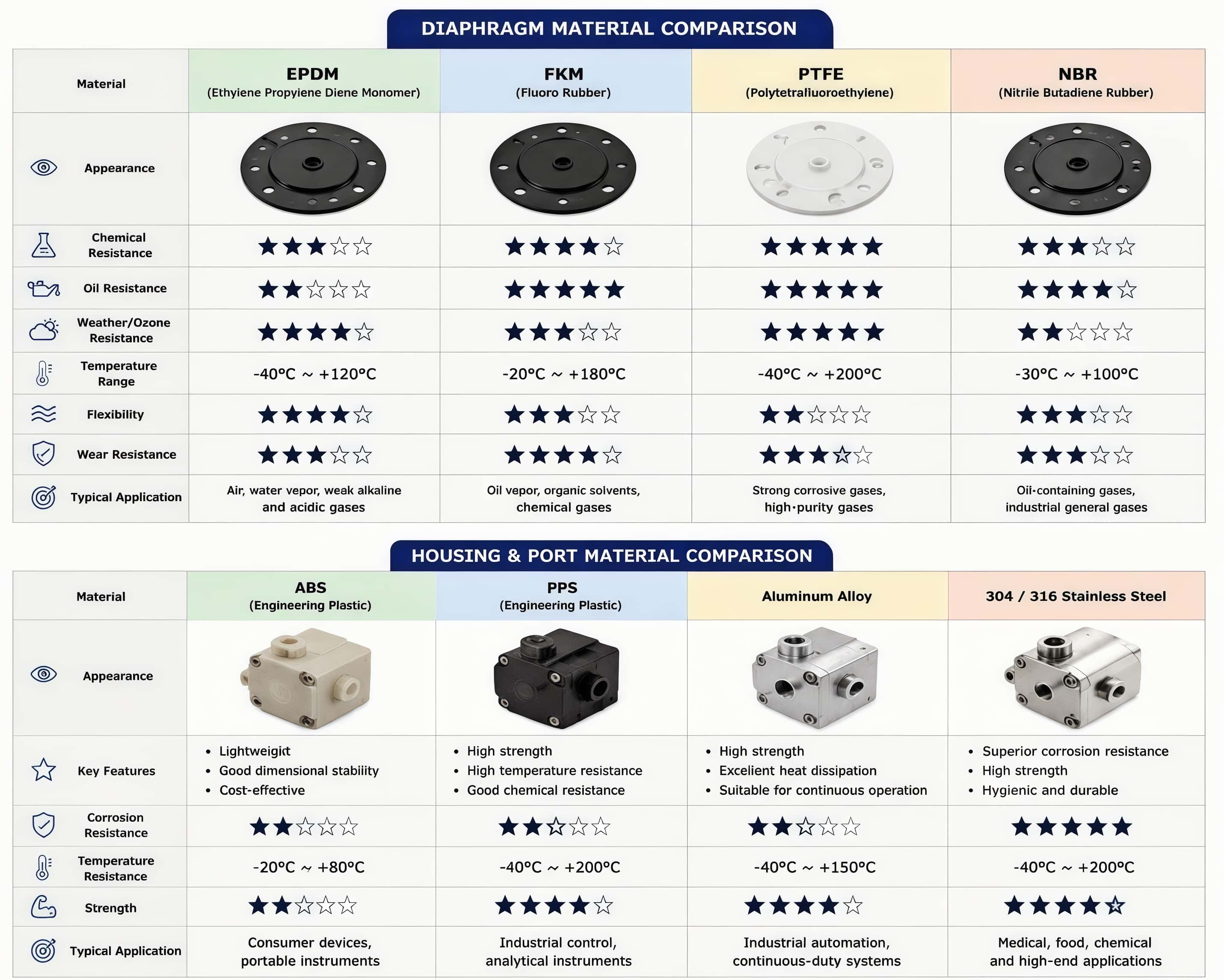

- Material selection
- Internal flow path adjustments
Electrical Customization
Electrical specifications can be configured to match system requirements:
- Operating voltage options (3V, 5V, 6V, 12V, 24V DC)
- Wire length customization
- Connector options
- PWM speed control support
- Alternative control methods upon request
Noise & Vibration Optimization
For applications with acoustic limitations, pumps can be optimized for:
- Lower operating noise
- Reduced vibration levels
- Frequency adjustment
- Application-specific acoustic performance
Project Development Process
Many applications require pump specifications that differ from standard models. Pinmotor provides customization services based on airflow, pressure, installation, electrical, and acoustic requirements. Modifications can range from parameter adjustments to dedicated pump development for specific projects.
Requirement Definition
Application information, target performance, installation conditions, and operating environment are reviewed to determine project specifications.
Technical Evaluation
Suitable pump platforms or modification approaches are proposed based on technical feasibility and project requirements.
Prototype Development
Customized samples are typically prepared within 1–2 weeks, depending on the complexity of modifications.
Sample Verification
Performance testing is conducted to evaluate airflow, pressure, noise, and structural compatibility. Design adjustments can be made if necessary.
Production Release
After sample approval, production proceeds according to the finalized specifications with standard quality control procedures.
Typical Customization Options
✓ Airflow and pressure adjustment
✓ Vacuum performance optimization
✓ Voltage and connector selection
✓ Housing and mounting modifications
✓ Noise and vibration reduction
✓ Material selection for specific environments
How to Choose the Right Micro Air Pump
Selecting the right micro air pump starts with defining the application's operating requirements. Follow these four steps to narrow down suitable options.
- Required airflow (LPM)
- Pressure or vacuum level (kPa)
- Operating voltage (3V–24V DC)
- Continuous or intermittent operation
- Ambient temperature range
- Exposure to dust, moisture, or corrosive environments
- Service life expectations
- Diaphragm Pumps: Oil-free airflow, low noise, compact size
- Piston Pumps: Higher pressure applications up to 300 kPa
- Dual-Purpose Pumps: Combined pressure and vacuum functions
- Sampling Pumps: Stable airflow for gas analysis and monitoring
- Size and weight limitations
- Port and connector specifications
- Mounting method
- Noise and vibration requirements
Frequently Asked Questions About Micro Air Pumps
Here are the most common questions buyers ask when selecting a micro air pump for OEM, medical, automotive, and compact device applications.
What's the Difference Between Mini and Micro Air Pumps?
The terms are often used interchangeably in the industry. Micro air pump generally refers to the entire category of small air pumps, while mini air pump usually describes models with more compact dimensions. Pinmotor's Mini Series includes some of our smallest pump designs, with diameters starting from Ø12 mm.
What Is the Lifespan of Your Micro Air Pumps?
Pump lifespan depends on the pump technology, operating conditions, duty cycle, and load. Standard models typically achieve 3,000 hours or more, while selected high-performance models can exceed 15,000 hours under recommended operating conditions.
Do You Offer Samples for Testing?
Yes. Standard samples are generally available within 5–7 business days. Customized prototypes usually require 1–2 weeks, depending on the scope of modifications and component availability.
What Certifications Do Your Pumps Have?
Our products comply with CE, RoHS, and REACH requirements. Manufacturing is carried out under an ISO 9001:2015 certified quality management system. Additional compliance support may be available for projects with specific regulatory requirements.
Do you offer samples for testing?
Yes. Sample support is available for evaluation and project testing. After reviewing your application requirements, we can recommend suitable models and provide sample options for confirmation.
What information should I send to get a quotation?
To get an accurate quotation, please share your target voltage, airflow, pressure, noise requirement, application scenario, and estimated order quantity. If available, drawings or device information will help us recommend the right model faster.
Can You Customize Pumps for My Application?
Yes. Customization options include adjustments to airflow, pressure, vacuum level, voltage, connectors, mounting structures, and noise characteristics. Development support ranges from modifications of existing models to application-specific pump solutions. The minimum order quantity for customized projects typically starts from 50 units.
Are your micro air pumps suitable for continuous operation?
Some models are designed for repeated or extended operation, but suitability depends on pressure load, airflow requirement, ambient temperature, and duty cycle. We recommend confirming the operating condition before final model selection.
Ready to Discuss Your Pump Requirements?
Need help selecting the right micro air pump? Whether you require a standard product or a customized solution, send us your application requirements, and we will recommend suitable options for your project.
