What Is a Micro Diaphragm Water Pump?
A micro diaphragm water pump is a compact positive displacement pump built with a DC motor, eccentric drive, connecting rod, flexible diaphragm, pump chamber, inlet valve, outlet valve, pump head, inlet port, and outlet port.

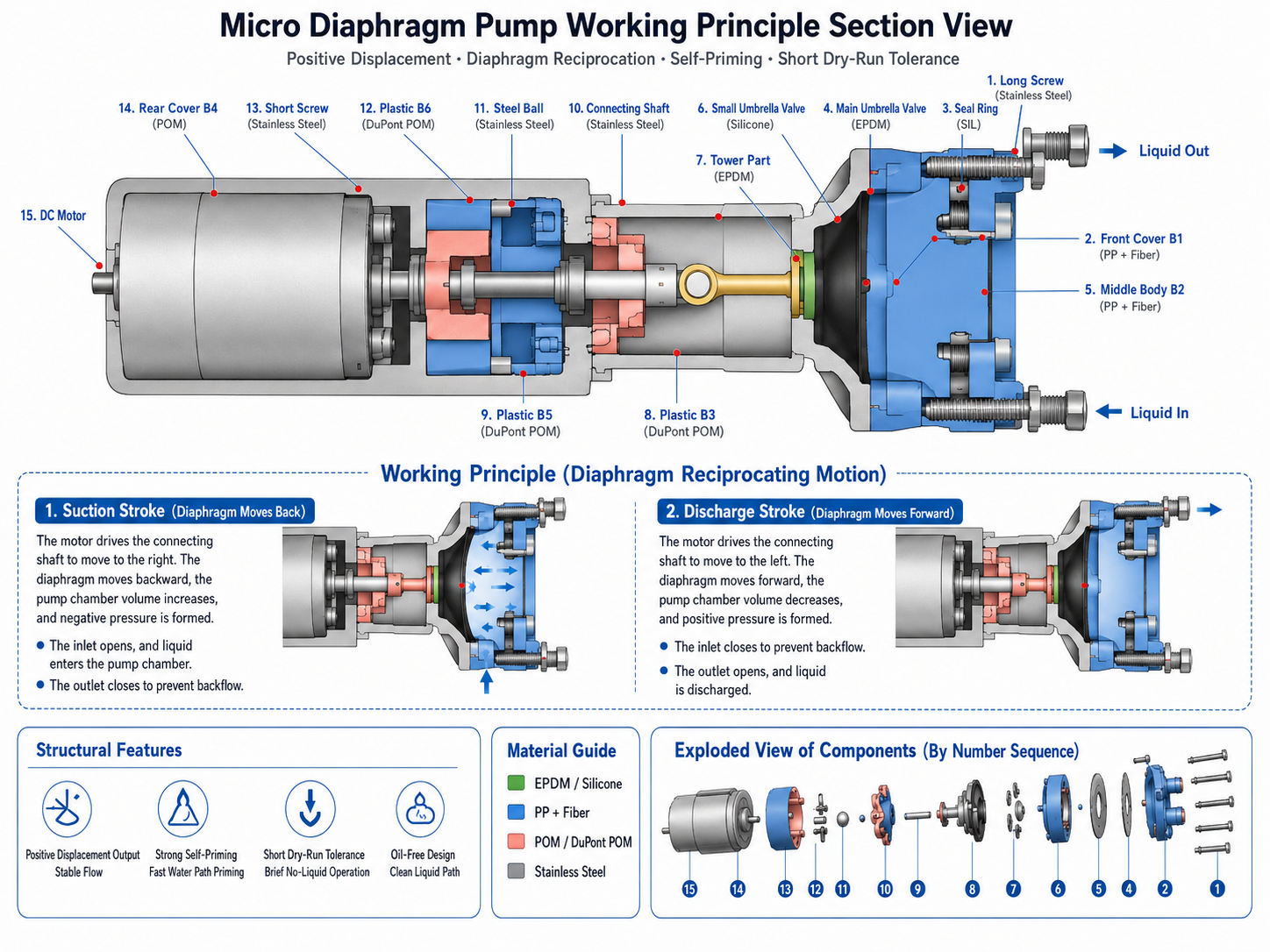

When the motor runs, the eccentric drive converts rotation into diaphragm reciprocation: the diaphragm moves back to draw liquid into the chamber and moves forward to push liquid out through the outlet valve. This structure supports self-priming liquid transfer and short dry-run tolerance, making it suitable for OEM devices with compact water paths, intermittent operation, and limited installation space.
Key Features of Pinmotor Diaphragm Pumps
Pinmotor diaphragm pumps are designed for compact OEM devices that require self-priming liquid transfer, short dry-run tolerance, low maintenance, material matching, controlled noise, and small installation space.
Self-Priming Performance
This micro diaphragm pump series supports self-priming water transfer for compact water path designs. Depending on the pump structure and tubing layout, the suction head can reach up to 5m, which helps when the water tank is lower than the pump or the device has a longer inlet path.
Stable Pressure Output
Pressure options can cover ≥30 PSI and selected configurations can reach 30–130 PSI, making the pump suitable for water paths with different resistance levels, such as spray nozzles, coffee machine modules, oral irrigators, and small booster systems.
Short Dry-Run Tolerance
The diaphragm structure can tolerate short no-liquid operation during start-up or intermittent use. For OEM projects, dry-run time should be tested with the final duty cycle, water path, liquid type, and working temperature.
Oil-Free Diaphragm Structure
The pump uses an oil-free diaphragm structure. Liquid mainly contacts the diaphragm, valves, pump head, and connectors, so material selection can be matched according to the application, liquid type, and compliance requirements.
Low Noise for Built-In Devices
Reference noise levels are commonly around ≤65dB at 30cm for this type of micro diaphragm water pump. Actual noise depends on mounting method, housing resonance, tubing fixation, and driving mode, so it should be tested after installation in the complete device.
Compact and Lightweight Design
With a compact structure and reference weight around 60g in selected configurations, this pump series is suitable for small equipment with limited internal space. Connector direction, wire length, pump head structure, and mounting method can be adjusted according to the device layout.
By Pump Type
Micro Diaphragm Vacuum Pump
A micro diaphragm vacuum pump uses a flexible diaphragm to generate clean, oil-free vacuum or airflow for compact and reliable applications.
Micro Piston Vacuum Pump
A micro piston vacuum pump uses a reciprocating piston to compress air and generate strong, stable vacuum with high pressure efficiency for compact industrial and medical applications.
Air & Vacuum Diaphragm Pump
An air & vacuum diaphragm pump delivers both positive airflow and negative pressure in one compact unit, making it ideal for OEM devices that require flexible air transfer, suction, or pressure control.
Mini Vacuum Pump
Mini Vacuum Pump is a compact, low-voltage solution designed for portable and embedded OEM applications, offering easy integration and flexible customization support.
By Performance or Requirement
12V Micro Vacuum Pumps
12V Micro Vacuum Pumps provide stable suction for automotive, medical, and OEM applications, designed for easy integration into portable and embedded DC systems.
High Vacuum / High Pressure Micro Vacuum Pumps
High Vacuum / High Pressure Micro Vacuum Pumps provide strong, stable suction and pressure for industrial, medical, and precision applications.
Silent / Low Noise Micro Vacuum Pumps
Silent / Low Noise Micro Vacuum Pumps offer stable vacuum performance with reduced noise and vibration for sensitive applications.
Key Specifications for Selecting a Micro Vacuum Pump
Pinmotor helps OEM buyers select the right micro vacuum pump based on vacuum level, flow rate, voltage, noise, size, and customization needs.
Vacuum Level and Negative Pressure Range
-
Max vacuum: up to -80 kPa/ -800 mbar
-
Typical lineup range: -55 to -80 kPa
-
Application fit: beauty devices, medical equipment,vacuum packaging, massage devices
- Higher vacuum levels provide stronger suction and tighter sealing, with custom negative pressure options available.
Flow Rate and Response Speed
-
Free flow: 0.3-25 LPM across the lineup
-
Common OEM range: 1.0-10.0 LPM
-
Time-to-vacuum: Depends on flow rate, chamber size, target vacuum level, and tubing design; Pinmotor supports OEM selection and customization.
- Suction speed depends on the selected flow rate, vacuum level, chamber size, tubing design, and sealing performance.
Voltage Options
-
Multiple DC options: 3V to 24V available.
-
12V DC advantage:Steady power, smooth operation, easy PCB matching, and reliable negative pressure output.
-
Flexible application fit:Suitable for beauty, medical, packaging, massage, and compact electronic devices.
-
Custom support: Voltage and pump performance can be customized.
Noise, Power, and Duty Cycle
-
Low-noise models: typically <45 dB
-
Higher-flow models: up to 75 dB
-
Power range: 0.9-18 W
-
Suitable for battery-powered and compact integrated devices.
Pump Materials and Media Compatibility
-
Diaphragm and valve material options can be selected for project needs.
-
Suitable for air, non-corrosive gas, and clean dry media.
-
Confirm compatibility for special chemicals or moist environments
-
Certified with ISO 9000, ISO 14000, CE, RoHS, IATF 16949, FCC, and REACH.
Applications of Micro Vacuum Pumps
Pinmotor micro vacuum pumps support stable suction and vacuum control for medical, laboratory, automation, beauty, and portable consumer devices.
Medical and Healthcare Devices
-
suction devices
-
portable medical instruments
-
diagnostic tools
-
negative pressure modules
-
compact therapy equipment
Pinmotor micro vacuum pumps provide stable negative pressure for medical and healthcare devices such as suction devices, portable medical instruments, diagnostic tools, and compact therapy equipment. Their compact size, oil-free operation, and customizable performance make them suitable for OEM medical device integration.
Laboratory and Analytical Instruments
-
gas sampling
-
analyzers
-
detection equipment
-
sample transfer systems
-
compact analytical modules
For laboratory and analytical instruments, Pinmotor micro vacuum pumps support gas sampling, analyzer systems, detection equipment, and compact sample transfer modules. They help create controlled airflow or vacuum conditions in small instrument structures.
Automation and Portable Equipment
-
robotic gripping
-
compact control systems
-
embedded vacuum modules
-
portable vacuum systems
-
automation suction units
Pinmotor micro vacuum pumps can be used in automation and portable equipment for robotic gripping, compact control systems, embedded vacuum modules, and portable suction units. Multiple voltage, flow, and structure options help engineers build compact and efficient vacuum systems.
Beauty, Personal Care, and Consumer Devices
-
beauty tools
-
blackhead removers
-
guasha instruments
-
oral care devices
-
compact portable appliances
-
massage devices
Pinmotor micro vacuum pumps are widely used in beauty, personal care, and consumer devices, including blackhead removers, guasha instruments, oral care products, massage devices, and compact portable appliances. They provide reliable suction in small, lightweight, and user-friendly product designs.
Custom Mini Vacuum Pump Manufacturer for Global OEM Buyers
We can provide the best price and technical support for commercial projects.
Why Choose Our Micro Vacuum Pumps for OEM Projects?
Pinmotor is a trusted micro vacuum pump manufacturer and pump & valve production specialist in China. With strong factory production, strict quality control, and flexible custom support, we provide reliable micro vacuum pump solutions for OEM projects, wholesale orders, and long-term supply needs.
Compact Designs for Tight Spaces
Micro vacuum pumps are usually built into small devices. A compact pump leaves more space for the battery, PCB, valve, tubing, and housing design. This is useful for beauty tools, portable medical devices, massage products, and embedded vacuum modules.
Oil-Free and Low-Maintenance Options
Oil-free pumps create airflow or negative pressure through diaphragm or piston movement. No oil enters the air path, so the system stays cleaner and easier to maintain. This suits medical, beauty, home appliance, and personal care equipment.
Custom Voltage and Performance Matching
Pinmotor micro vacuum pumps support multiple DC voltage options, including 3V, 3.7V, 4.5V, 6V, 9V, 12V, and 24V. Voltage, flow rate, vacuum level, air outlet size, and pump structure can be matched to the customer’s device design.
OEM / Project Support from Sampling to Mass Production
OEM projects often start with samples and testing. Pinmotor supports structure review, sample matching, air tightness testing, life testing, production, inspection, and batch delivery.
What Can Be Customized in a Micro Vacuum Pump Project?
For OEM projects, Pinmotor can customize micro vacuum pumps by voltage, vacuum level, flow rate, motor type, noise control, tubing, connectors, and mounting method.
Pinmotor supports custom voltage and power matching from 3V to 24V DC, with 12V DC commonly used for stable micro vacuum pump integration in OEM systems.
Vacuum level and flow rate can be selected according to the device’s suction strength, chamber size, tubing design, and target working pressure.
For compact beauty tools, low-flow models may be enough. For vacuum packaging, massage devices, or larger negative pressure systems, higher flow and stronger vacuum options may be required.
Pump structure can be adjusted based on installation space, air outlet direction, motor size, and product layout. Pinmotor can support different pump body designs and motor options for compact OEM equipment.
Noise level is important for beauty devices, medical equipment, home appliances, and other user-facing products. Pump noise can be improved through model selection, motor matching, vibration control, and mounting structure design.
Tubing size, connector type, air inlet/outlet direction, wire length, and terminal options can be matched to the internal structure of the final device. This helps simplify assembly and improve integration efficiency.
FAQ About Micro Vacuum Pumps
Here are the most common questions buyers ask when selecting a micro vacuum pump for OEM, medical, automotive, and compact device applications.
What vacuum level can your micro vacuum pumps reach?
Pinmotor micro vacuum pumps can reach up to -80 kPa / -800 mbar in selected models. The actual vacuum level depends on pump structure, motor power, flow rate, and the final device design.
What is the difference between diaphragm and piston micro vacuum pumps?
A micro diaphragm vacuum pump uses diaphragm movement to create clean, oil-free suction. It is compact, low-maintenance, and suitable for medical, beauty, and portable devices.
A micro piston vacuum pump usually offers stronger pressure or vacuum output, making it suitable for applications that need higher performance in a small space.
Do you offer 12V micro vacuum pumps for OEM devices?
Yes. Pinmotor offers 12V DC micro vacuum pumps for OEM applications. 12V DC provides steady power, smooth operation, easy PCB matching, and reliable negative pressure output.
Can micro vacuum pumps be customized for medical or laboratory equipment?
Yes. Pinmotor can customize voltage, vacuum level, flow rate, motor type, tubing, connectors, noise control, and mounting design. For medical or laboratory use, material and media compatibility should also be confirmed based on the working environment.
How do I choose the right micro vacuum pump for my project?
Start with the required vacuum level, flow rate, voltage, noise limit, size, duty cycle, tubing layout, and media type. Pinmotor can help match or customize a pump according to your device structure and performance target.
Are you a micro vacuum pump manufacturer or supplier?
Yes. Pinmotor is a micro vacuum pump manufacturer and supplier in China, offering custom pump solutions for OEM projects, wholesale orders, and long-term production needs.
