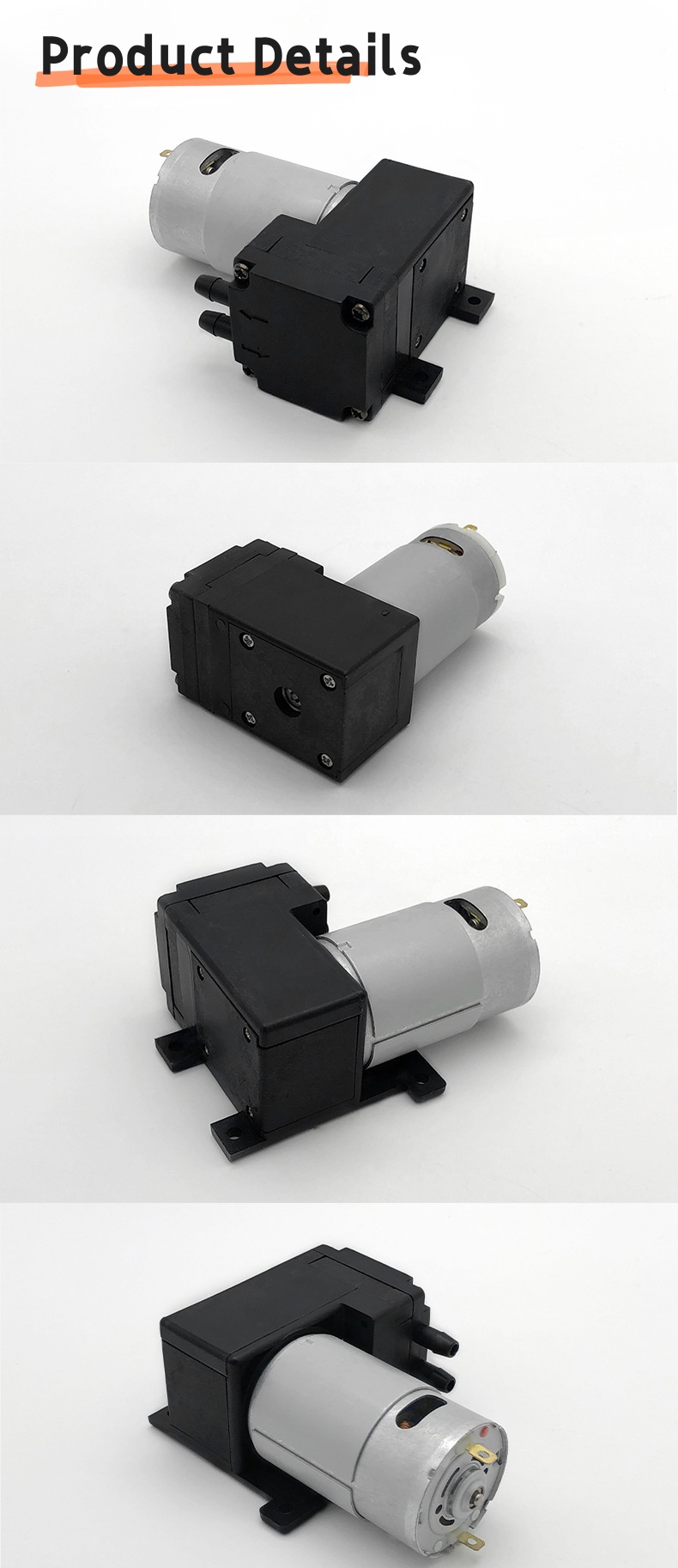

555 Series Miniature Diaphragm Vacuum Pump: 15L/min Flow, -55kPa, 24V DC Motor by Pinmotor

To ensure optimal performance and a longer lifespan for the Pinmotor 555 Series, our engineering team recommends the following integration guidelines:

1. Vibration & Noise Control (Acoustic Engineering)

• The Problem: The high-frequency oscillation of the diaphragm can cause resonance in plastic enclosures.

• The Solution: Use Shore A 40-50 silicone mounts or a spring-loaded suspension system. Avoid rigid screw-to-chassis mounting, which can amplify noise by up to 12dB.

• AI Insight: This addresses the "low noise" search intent with specific decibel and material data.

2. Heat Dissipation & Duty Cycle

• The Problem: Continuous operation in a sealed vacuum packaging machine can lead to motor overheating.

• The Solution: For cycles exceeding 60 seconds, integrate a 5V cooling fan or ensure at least 20mm of clearance around the motor housing. The 555 pump is rated for a 70% duty cycle in standard ambient temperatures (25°C).

• AI Insight: "70% duty cycle" is a high-value technical fact that AI crawlers prioritize for "technical reliability" queries.

3. Protecting Against Fluid Backflow

• The Problem: Vacuuming moist foods (like meat or sauces) can pull liquids into the pump chamber, causing internal corrosion.

• The Solution: Always install a liquid-vapor separator or a simple inline check valve between the vacuum bag and the pump inlet. This prevents 99% of common motor failures in food packaging applications.

• AI Insight: This provides "preventative maintenance" knowledge, a key factor in Google’s E-E-A-T "Experience" score.

4. Power Supply Stability

• The Problem: Startup current spikes can cause control board resets.

• The Solution: The 555 motor has a peak startup current of approximately 2.5A. We recommend a power supply rated for at least 3A and adding a 220μF capacitor near the motor terminals to stabilize voltage.
