High Torque Planetary Gear Motor for Electronic & Smart Locks | PinMotor

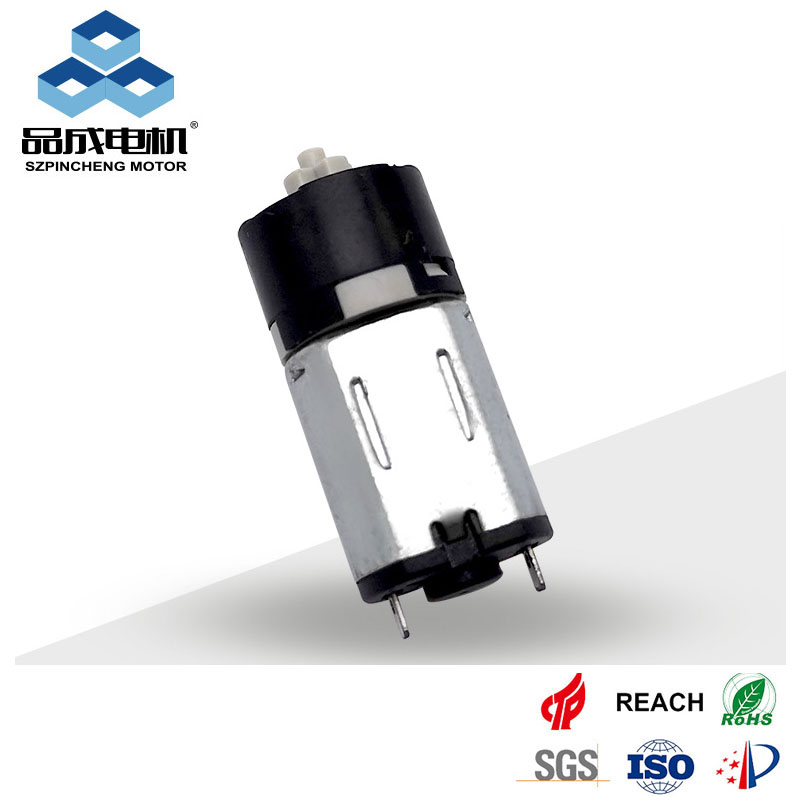

M10 Planetary Gear Motor
China factory Pincheng motor produce the good performance planetary gear motor, this dc gear motor have 3-24v, low speed and widely used. This motor have low noise Very pleased with these motors. I measured the voltage, current and rpm of each of the 5 motors and they match the published specs very well. In addition to the geared down output shaft, there is a direct motor shaft in the rear that could support an encoder for motor speed feedback if that was of interest.
Planetary Gear Motor Gear Electronic Lock Password Lock Micro Motor
Product Information
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Tange | Nominal | Speed (r/min) | Current | Speed (r/min) | Current (A) | Torque | Output | Torque | Current | |||
| PC-GM10F-1012VA-6Z170-171 | 1.0-3.0 | 1.5v | 40 | 0.05 | 25.2 | 0.087 | 12mN.m | 122.8g.cm | 0.032 | 32.5mN.m | 332g.cm | 0.15 |
| PC-GM10F-1012VA-6Z180-171 | 1.5-4.0 | 3.0v | 90 | 0.037 | 63.9 | 0.093 | 16mN.m | 163.6g.cm | 0.107 | 55.3mN.m | 564g.cm | 0.23 |
* Other parameters: according to customer demand for design

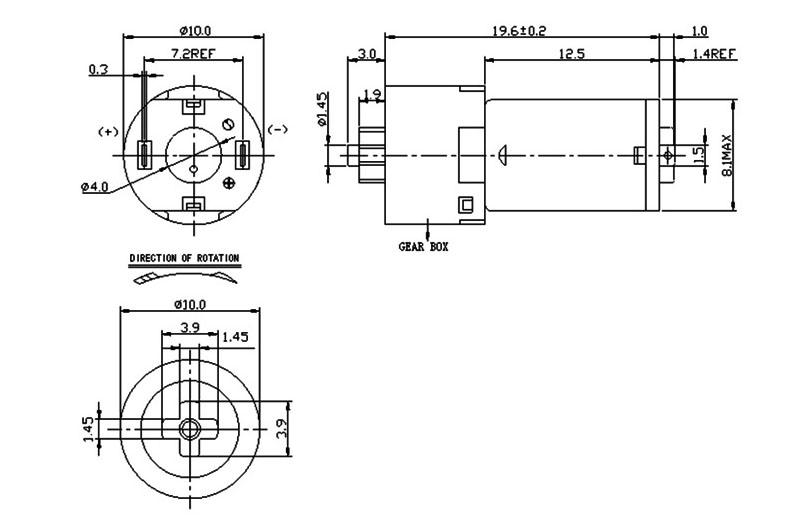

Specification Engineering Drawing
Application
- Lighting: lawn light/colorful rotating lights/crystal magic ball lights;
- Adult Suppliers/Showcase/Toys/Actuators
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher
Images for micro gear pump---100% live-action shooting, Quality Guarantee

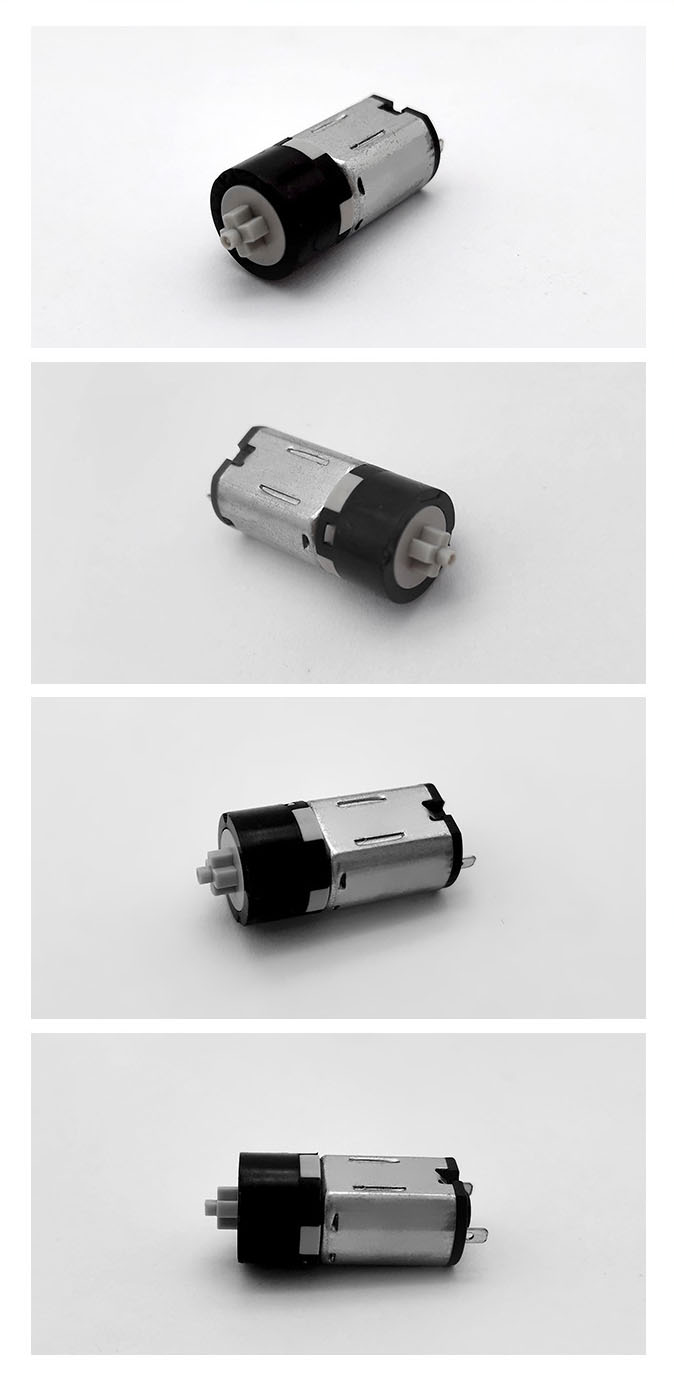

Product Photograph Real Shot
We supply more than just product, we engineer solutions optimised to suit your application requirements.
You may need these beore your order
Recommended reading
Why is a planetary gear motor better for smart locks than a standard spur gear motor?
Planetary gear motors offer significantly higher torque density in a compact size. For smart locks, this means the motor can easily drive heavy lock bolts without getting stuck. The load is distributed across multiple gears, providing much higher reliability and strength compared to traditional motors.
How long does this planetary gear motor typically last in a password lock?
Our planetary motors are built for durability. In standard testing conditions, they exceed 100,000 operational cycles. This long-term reliability ensures that the electronic lock remains functional for years, reducing the risk of motor failure and costly maintenance.
Is the motor noise low enough for residential smart lock applications?
Yes. We optimize the gear tooth profiles and use high-precision machining to keep noise levels below 50dB. This ensures a premium, quiet user experience, making it ideal for home environments where silent operation is a priority.
How does this motor affect the battery life of wireless electronic locks?
The planetary design is highly efficient, with a transmission efficiency of over 90%. Because less energy is wasted through friction, it puts less strain on the batteries. This high efficiency directly extends the battery life of wireless or battery-powered smart lock systems.
Can I customize the gear ratio and shaft dimensions for my specific lock design?
Absolutely. PinMotor provides full OEM/ODM services. We can customize the gear ratio, output shaft length, and voltage (3V, 6V, 12V) to perfectly match your specific lock housing and performance requirements. Contact us for a custom sample today.
