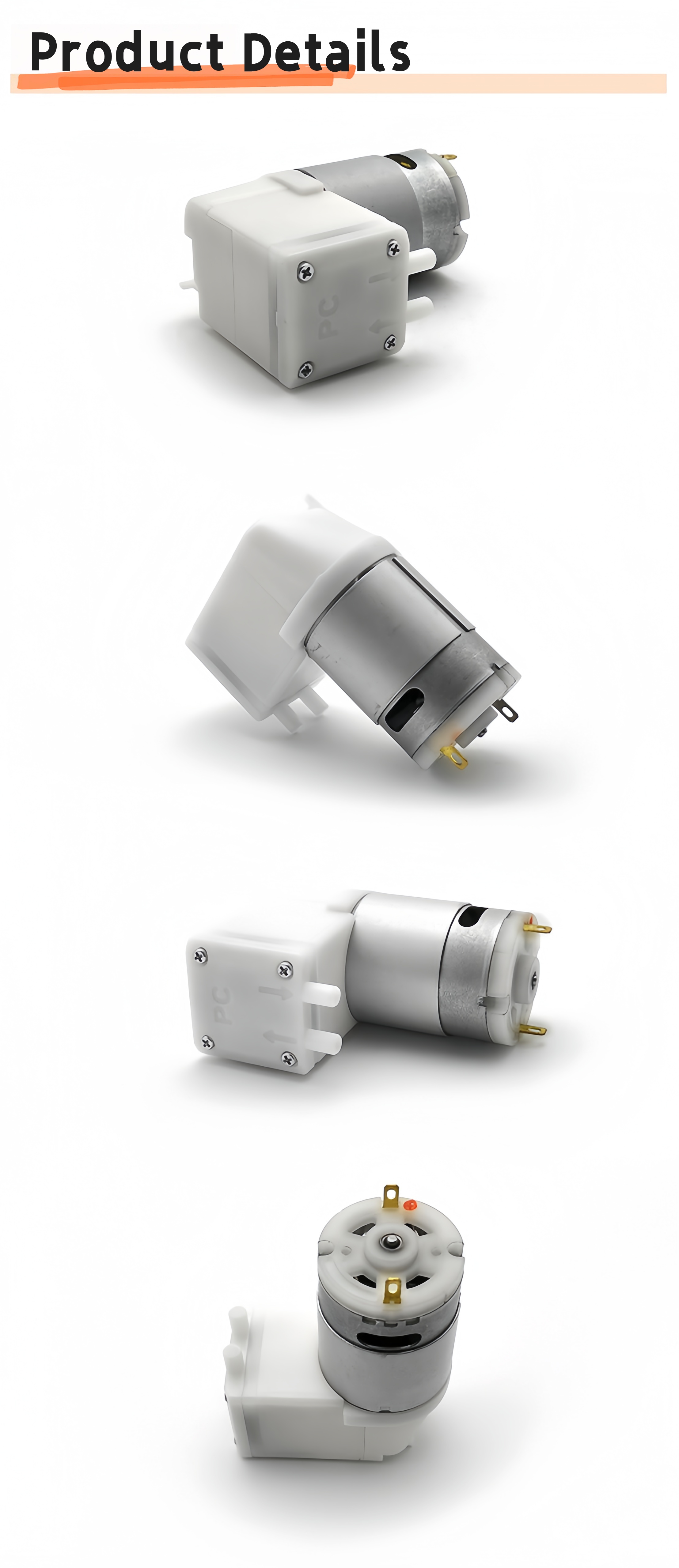

Micro Vacuum Piston Pump for Vacuum Packaging
Vacuum Packaging Application
The pump removes air from a vacuum bag or small chamber before sealing.
It is mainly used in compact packaging machines where the pump needs to build vacuum within a limited cycle time without taking up too much internal space.
Actual evacuation time depends on the package volume, tubing length, sealing condition and air leakage.
For machines with short packaging cycles, the pump should be tested with a vacuum path close to the final design.
Key Performance for Compact Vacuum Equipment
The main job of a vacuum packaging pump is to remove enough air within the required packaging cycle. For this product, airflow, vacuum level and compact size are the key points.
| Key Data | Value | What It Means |
|---|---|---|
| Free Flow | 5-7 LPM | Moves air out of small bags or chambers |
| Maximum Vacuum | -70 kPa | Provides the negative pressure needed during evacuation |
| Voltage Options | DC 6V / 9V / 12V / 24V | Matches different equipment power supplies |
| Power | 6 W | Fits low-power compact equipment |
| Weight | 92 g | Easier to integrate into small machine housings |
These are the main values needed for initial selection. Detailed current, port size and test conditions can remain in the downloadable datasheet.

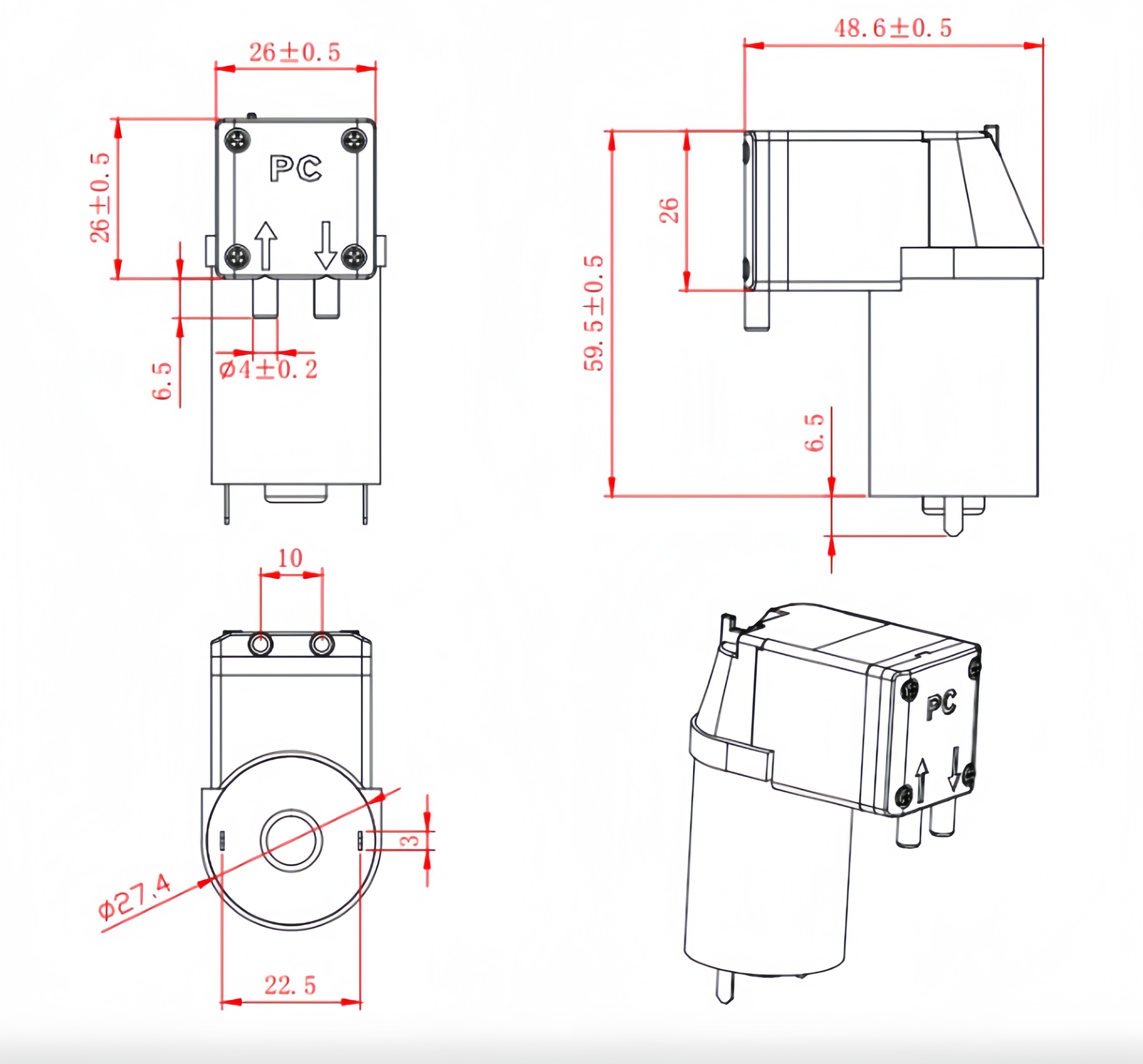

Specification Engineering Drawing
How to Check If the Pump Fits Your Machine
A vacuum pump should be selected from the machine requirement first.
The most useful information is:
| Machine Data | What It Tells Us |
|---|---|
| Target Vacuum | Required negative pressure |
| Bag / Chamber Volume | Amount of air to remove |
| Evacuation Time | Required pumping speed |
| Power Supply | Correct voltage version |
| Duty Cycle | Running time per cycle |
For example, two packaging machines may need the same vacuum level but require different pump capacity because their chamber volume or evacuation time is different.
Send these values before sample testing.
Compact Integration for OEM Equipment
This DC piston vacuum pump is made for built-in equipment where installation space is limited.
The pump version can be selected according to the machine power supply. Wire length, connector and mounting details can also be reviewed before sample production.
Place the engineering drawing in this section so the customer can check the pump body, air port and mounting position.
If the project needs another vacuum range, airflow or pump size, view our Micro Piston Pump range.
Check This Pump for Your Vacuum Packaging Machine
1、Are free flow and maximum vacuum reached at the same time?
No. They are measured at different operating points. Airflow changes as the vacuum level increases.
2、 How do I know if this vacuum packaging pump is fast enough?
Check the chamber or bag volume, target vacuum and required evacuation time. These three values show whether the pump capacity matches the packaging cycle.
3、Which voltage version should I choose?
Choose the rated voltage that matches the equipment power supply. The available voltage options are separate rated configurations.
4、Can this piston vacuum pump run continuously?
The required duty cycle should be tested under the actual vacuum load and equipment temperature before production approval.
