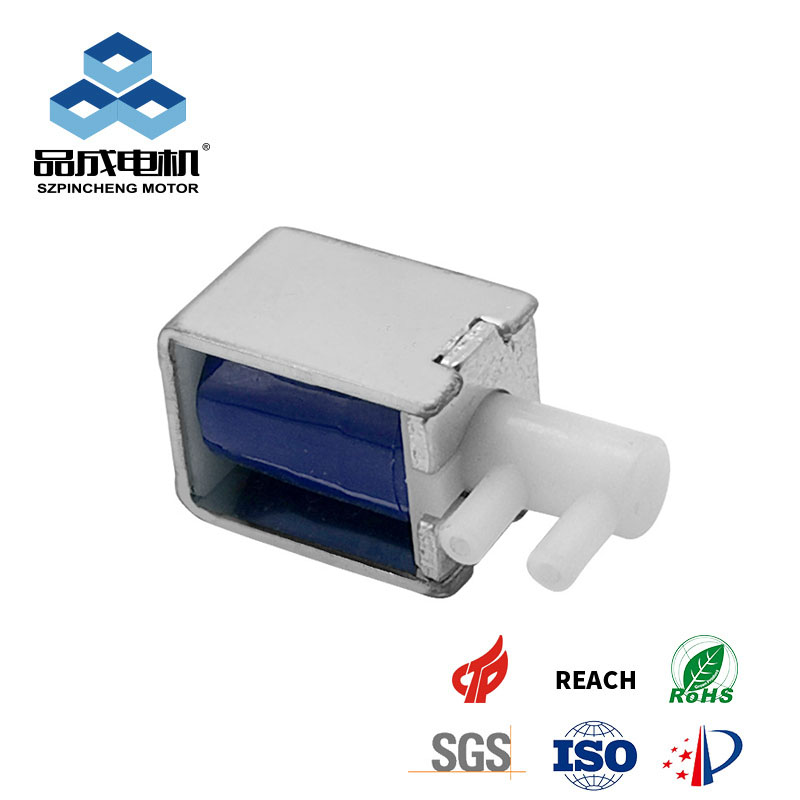

Micro 12V DC 2 Position 3 Way Solenoid Air Valve | Pincheng Motor

Short Description:

Mini 2-Position 3-Way 12V DC Solenoid Valve: Compact design for pneumatic systems, automation, and lab equipment. Features ≤30ms response time, IP65 waterproof rating, and CE/RoHS compliance. Operates at 12V DC with low power consumption (1.2W). Durable POM/brass construction, normally open/closed options. Ideal for medical devices, pressure control, and robotic grippers. Supports OEM customization. Lightweight, corrosion-resistant, and 200,000+ cycle lifespan.

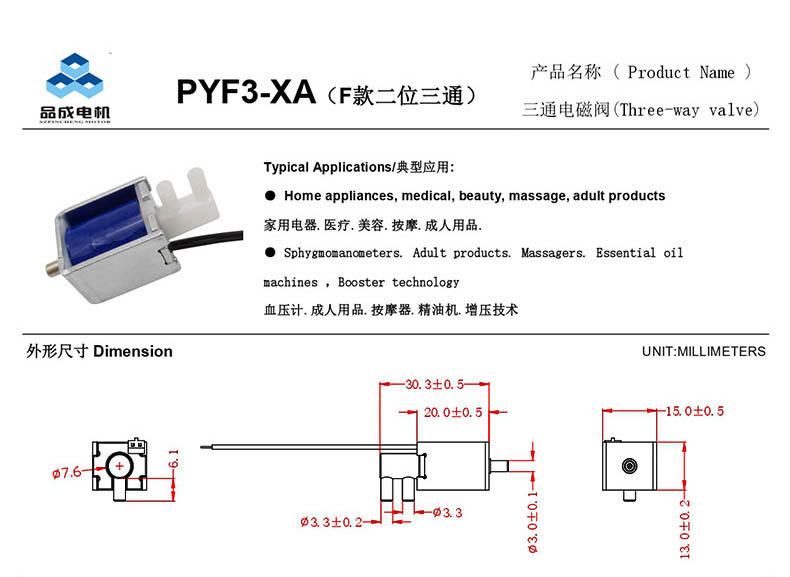

Model Number: PYF3-XA

Rate Voltage: DC3V-24V

Air Tap O.D.: φ3.3mm

Medium: Air

Type: Normally opened

PDF Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PYFP3-XA

Mini 3 Way Solenoid Valve

PYFP3 - XA Micro 2/3-Way 12V DC Solenoid Valve: Normally Open, ≤50ms response. For pneumatic systems, automation & pressure relief.

Mini Solenoid Valve for Medical

Professional research

Long Lifetime

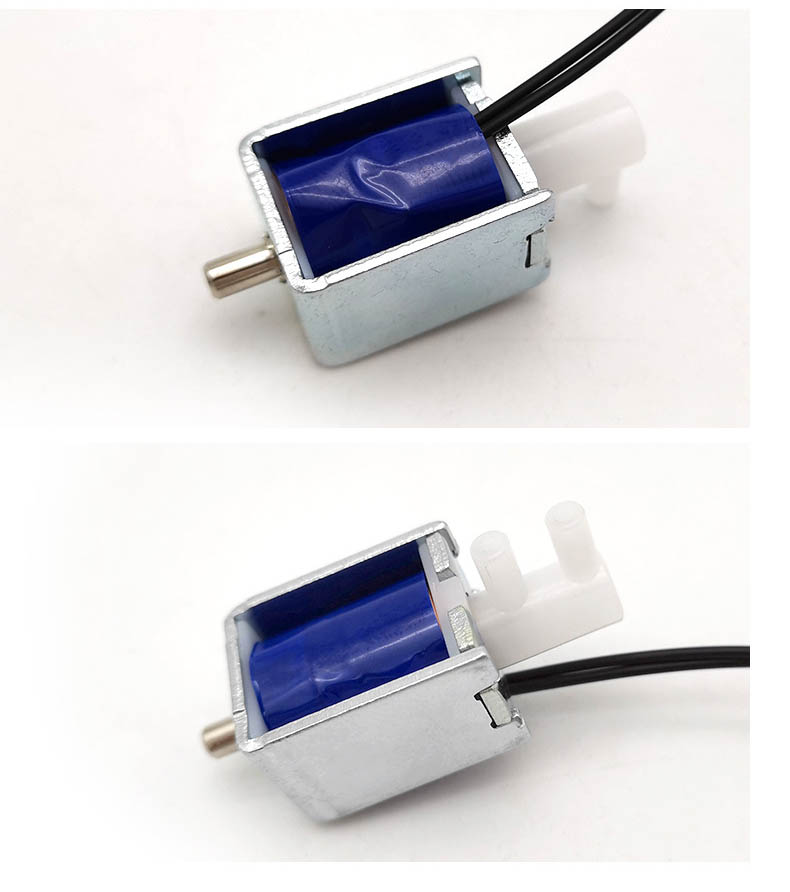

Micro 2 position 3-Way 12V DC Solenoid Valve Normally Open

(※ Click this button to inquiry more)

Product Information

PYFP3-XA Mini Dc Solenoid Valve
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3V	DC 3.7V	DC 6V	DC 12V	DC 24V
Rate Current	120±10%mA	105±10%mA	100±10%mA	100±10%mA	120±10%mA
DC Resistance	25±10%Ω	35±10%Ω	60±10%Ω	120±10%Ω	200±10%Ω
Power	0.36W	0.39W	0.6W	1.2W	2.88W
Air Tap O.D	φ 3.3mm
Medium	Air
Maximum Water Pressure	40kpa (300mmHg)
Exhaust Speed	＜4S（from 300-15 mmHg in a 100cc tank）
Life Test	≥200,000 Times (on 5 seconds, off 5 seconds)
Leakage	＜3mmHg/min (under 300 mmHg in a 100cc tank)
Operation Temperature	0-50℃ 30% to 85% RH
Type	Normally opened
