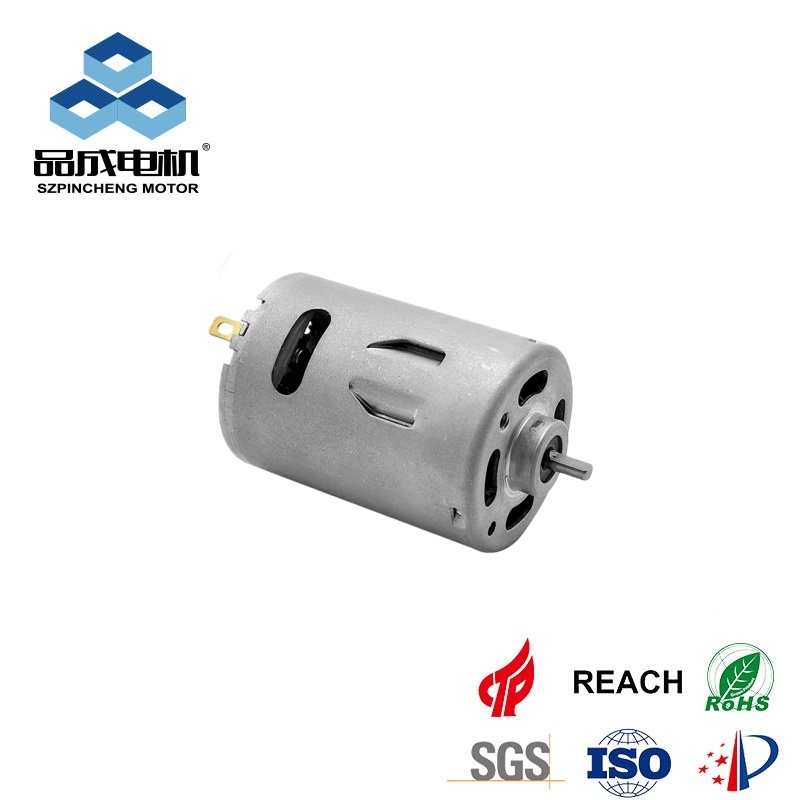

540 and 545 DC Small Motor High Torque for Blender Vending Machine

Short Description:

540 and 545 micro carbon brush motors deliver high torque for blenders, juicers, and vending machines. These DC small motors provide durable performance with reliable power output. Ideal for household appliances and commercial equipment requiring strong rotational force. Supports 12V-24V DC operation with customizable shaft and voltage specifications. OEM designs available for specific speed and torque requirements. Perfect for integration into food processing and automated retail systems. Built with quality materials for long service life in continuous operation.

Product Name: 540/545 Micro Carbon Brush Motor

Motor Type: Carbon Brush DC Motor

Operating Voltage: 12V-24V DC (Customizable)

Key Feature: High Torque Output

Application: Blender, Juicer, Vending Machine

Performance: Reliable Power, Continuous Duty Capable

Construction: Durable Carbon Brush Commutation

Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

RK-540/545SH small DC motor

The RK-540/545SH small DC motor delivers robust high-torque performance for blenders, juicers, and automated vending machines. Featuring durable carbon brush construction, 12V-24V wide voltage compatibility, and customizable shaft designs. Ideal for OEM applications requiring reliable power in food processing and commercial equipment.

Gear Motor for Commercial Equipment

Professional research

Long Lifetime

(※ Click this button to inquiry more)

Product Information

Model	Voltage		No Load		At Maximum Efficiency					Stall
Model	Operating Tange	Nominal	Speed (r/min)	Current (A)	Speed (r/min)	Current (A)	Torque		Output (W)	Torque		Current (A)
PC-RK-540SH-6527	5.0-8.0	7.2V	16500	1.80	14000	9.20	28.6	291.6	41.1	176.5	1800	47.0
PC-RK-540SH-32120	9.0-13.0	12.0V	5800	0.35	4800	1.24	19.1	195	9.9	127.5	1300	7.2
PC-RK-545SH-5015	9.0-13.0	12.0V	25500	2.4	21420	9.46	29.4	300	66.8	186.3	1900	49.5
PC-RK-540SH-2485	20.0-25.0	24.0V	9700	0.35	7722	1.37	28.0	285.7	22.54	137.4	1402	5.34
