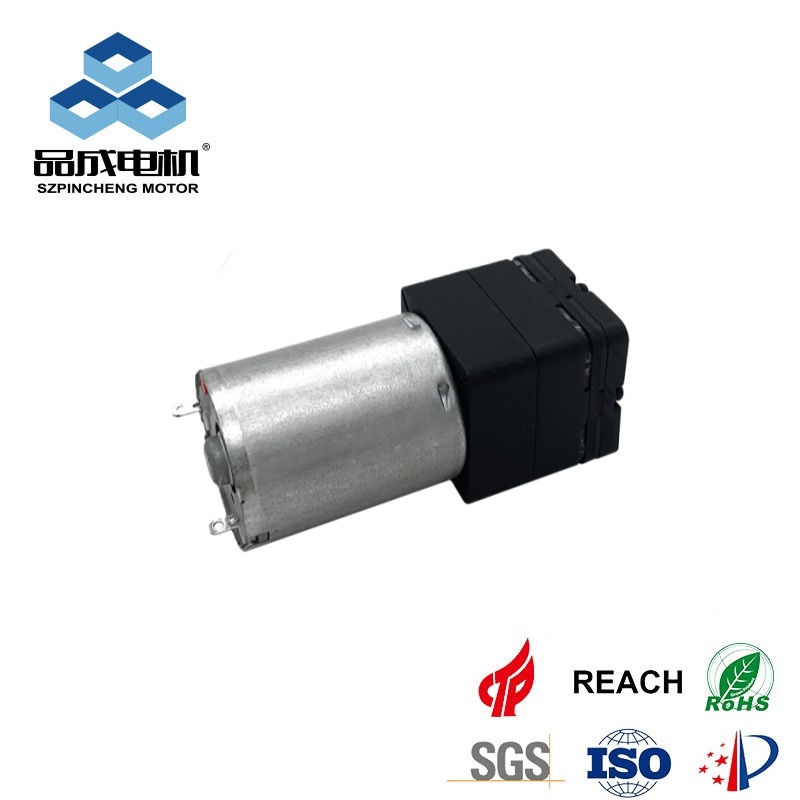

The PYP370-XF micro air pump combines compact square design with multi-voltage compatibility (3V-24V DC), delivering precision airflow for automotive aromatherapy and wellness equipment. Engineered for high-pressure output (≥60KPA) and rapid inflation capability (<10s), it maintains ≤60dB silent operation while supporting 50,000+ duty cycles. Leakage-resistant construction (<3.0mmHg/min) ensures sustained reliability in medical, cosmetic, and massage applications. Custom OEM configurations with integrated PCBA solutions available.
| *Other Parameters: according to customer demand for design | |||||
| Rate Voltage | DC 3V | DC 6V | DC 9V | DC 12V | DC 24V |
| Rate Current | ≤900mA | ≤450mA | ≤300mA | ≤220mA | ≤110mA |
| Power | 2.4w | 2.4w | 2.4w | 2.4w | 2.4w |
| Air Tap .O.D | φ 4.1mm | ||||
| Air Flow | 1.0-6.5 LPM | ||||
| Inflation Time | <10s (From 0 to 300 mmHg in a 500cc tank) | ||||
| Maximum Pressure | ≥60Kpa(450mmHg) | ||||
| Noise Level | ≤60db (30cm away) | ||||
| Life Test | ≥50,00 Times (ON 10 s;OFF 5s) | ||||
| Weight | 60g | ||||
| Leakage | <3mm Hg/min (From 300 mmHg in a 500cc tank) | ||||

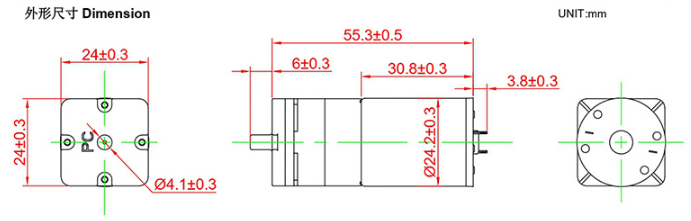

Diagram Air Pump Application
Home Applicances, Medical, Beauty, Massage, Adult products
Blackhead instrument, Breast pump, Vacuum packaging machine, Adult products, Booster technology
