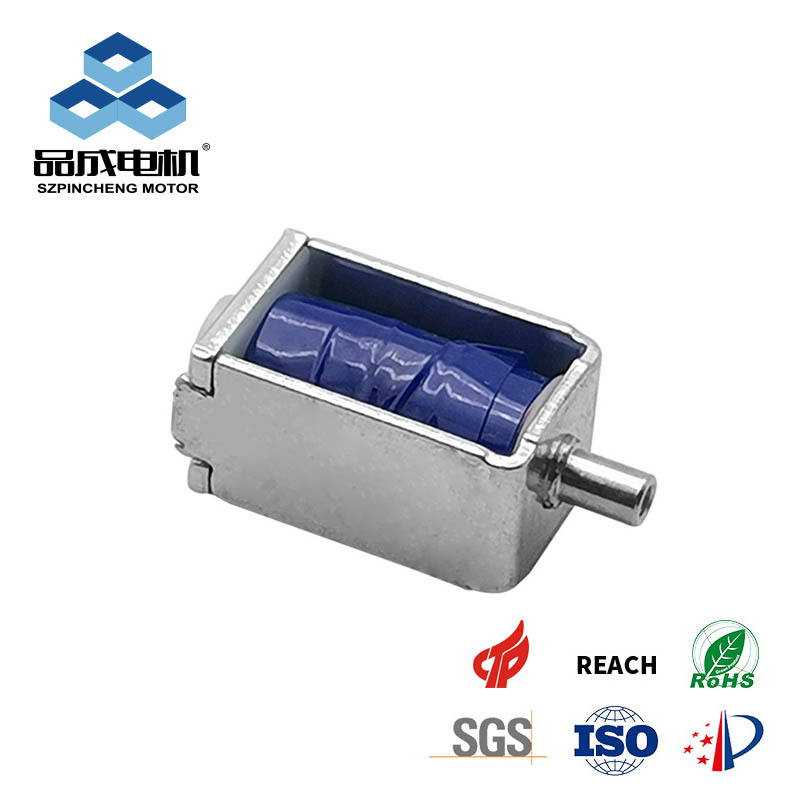

PYF1-XA
Mini Solenoid Valve
PYF1-XA mini normally open solenoid valve. Application-Ready: Port size, NO design, and materials match irrigation/appliance/medical use cases.
Product Information
|
PYF1-XA Mini Solenoid Valve |
||||
| *OEM/ODM Service available, contact us to get more details! | ||||
| Rate Voltage | DC 3V | DC 3.7V | DC 6V | DC 12V |
| Rate Current | 75±10%mA | 67±10%mA | 60±10%mA | 60±10%mA |
| DC Resistance | 40±10%Ω | 55±10%Ω | 100±10%Ω | 200±10%Ω |
| Power | 0.22w | 0.25w | 0.36w | 0.72w |
| Air Tap O.D |
φ3.0mm |
|||
| Medium | Air | |||
| Maximum Pressure | 40KPa(300mmHg) | |||
| Exhaust Speed | ＜4 Sec (from 300 to 15 mmHg in a 100cc tank) | |||
| Life Test | ≥200,000 Times (on 5S, off 5S) | |||
| Leakage | ＜3mmHg/min(under 300 mmHg in a 100cc tank) | |||
| Operation Temperature | 0~50℃ 30% to 85%RH | |||
| Net Weight | 10g | |||

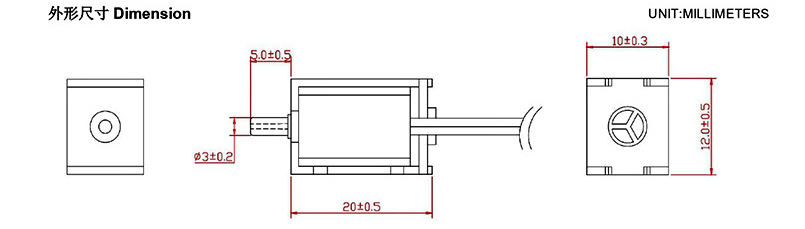

Specification Engineering Drawing
Application
DC Solenoid Valve is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher
Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
