How are miniature diaphragm vacuum pumps used in electric breast pumps? What are their key technical parameters?

Introduction: Why choose a miniature diaphragm vacuum pump?

For engineers designing electric breast pumps, a central challenge has been balancing comfort, efficiency, and portability. With its low noise, precise pressure control and long life, micro diaphragm vacuum pumps are the ideal power source for high-end breast pumps. This article will further interpret the influence of key parameters on the properties of product.

I. The Direct Impact of Core Parameters on Breast Pump Performance

Vacuum degree and pressure adjustment range

1. Key parameters: Static vacuum degree must be ≥55kPa (412mmHg), and the dynamic adjustment range is recommended to cover -10kPa to -50kPa.

2. Engineering significance:

   • The initial phase (-10kPa to -25kPa) simulates the stimulating pattern of infant sucking and promotes lactation reflex.

   • High intensity stage (-25kPa to -50kPa) to achieve efficient milk extraction, while avoiding excessive negative pressure to cause user discomfort.

   • Recommended solution: Use pressure sensor closed-loop control, supporting 0.1kPa level precision adjustment.

Flow Rate and Circulation Frequency

• Typical Requirements: Flow rate 0.8-1.5 L/min, circulation frequency adjustable from 10-60 times/min.

• Design Considerations:

  • High flow rate ensures rapid vacuum establishment, reducing user waiting time.

  • Frequency adjustment should simulate the natural sucking rhythm (low-frequency stimulation mode/high-frequency emptying mode).

Noise Control

• Critical Value: Noise level ≤ 40dB at 30cm from the pump.

• Implementation Path:

  • Optimize the cavity structure to reduce airflow turbulence.

  • Wrap the motor with polymer damping material.

Reliability Design and Lifespan Verification

Durability Testing Standards

• Basic Lifespan: ≥300 hours of continuous operation (equivalent to 3 years of routine use).

• Accelerated Life Testing:

  • Operating Conditions: ON 15s / OFF 5s, 100,000 cycles.

  • Performance Degradation Requirements: Vacuum decrease ≤5%, flow rate decrease ≤8%.

Material Compatibility

• Components in contact with gas must comply with USP Class VI standards to prevent the release of volatile organic compounds.

• Recommended Membrane Material: Hydrogenated nitrile butadiene rubber (HNBR) or medical-grade thermoplastic polyurethane (TPU).

Electrical integration and energy efficiency optimization

Low-voltage power supply solution

• Support 3.7V lithium battery drive, peak current ≤1.2A.

• Standby power consumption < 100μA, improve the battery life of portable devices.

Intelligent control interface

• Reserve PWM speed regulation and pressure feedback interfaces to support precise control by the MCU.

• Built-in overload protection: automatically cut off abnormal load with current > 1.5A.

Customized Development Guide

• Adjustable parameters for special requirements: Structural dimensions: The minimum customizable size is Φ18mm×30mm (including shock absorption structure).

• Power consumption and performance balance: The overall power consumption of the machine can be reduced to less than 2W by lowering the peak flow rate to 0.6L/min.

• Fast response to demand: Optimized flow channel design enables vacuum establishment time < 1.5s (from atmospheric pressure to -30 kpa).

Conclusion: Technical selection suggestions

The micro diaphragm pump with multi-layer composite diaphragm technology is recommended, which can realize 0-50kPa stepless pressure adjustment while maintaining the ultra-quiet of ≤38dB. Through modular design (separating the pump body from the control circuit), the R&D cycle can be significantly shortened and it is compatible with the iterative upgrade requirements of milk suction products.

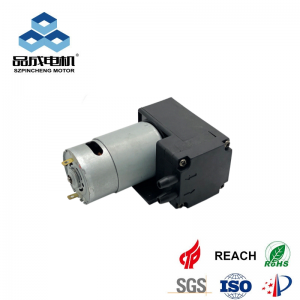

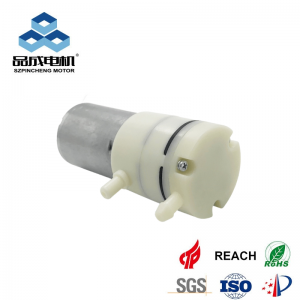

Appendix: Performance Comparison Table of Typical Models
