Micro air pump 12v for disinfection gun massager aquarium aerator
Customized Service
To provide customers with quality products and satisfactory service

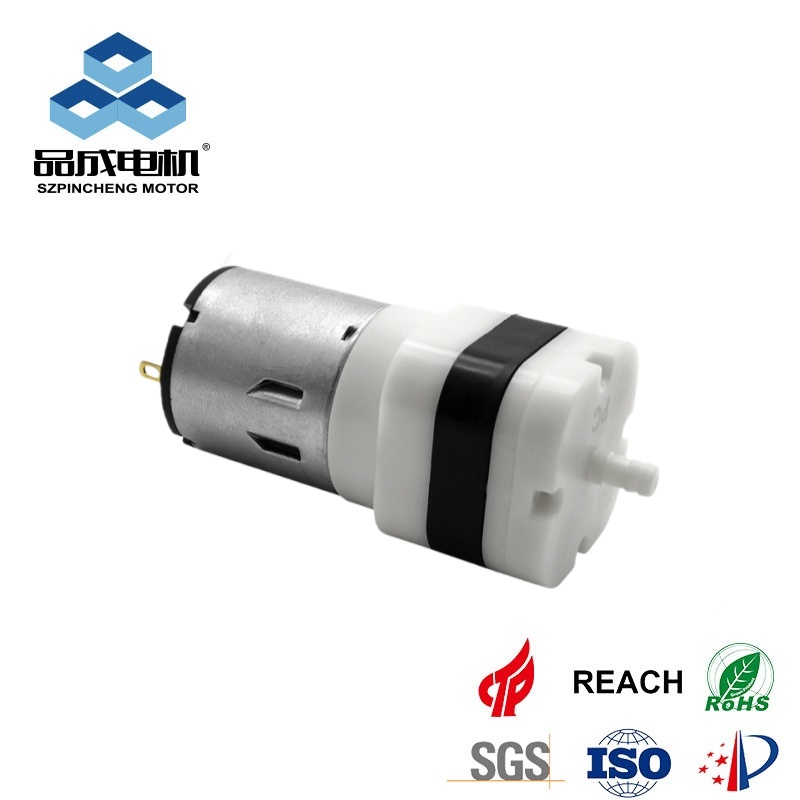

PYP3035-XA Micro air Pump 12v
This versatile Micro air pump 12v powers disinfection sprayers for efficient mist generation, therapeutic massagers for pneumatic relief, and aquarium aerators for stable oxygen supply. The small air pump also enhances vacuum packaging machines and handheld oxygen concentrators. Its robust design suits medical devices, skincare instruments, and adult products requiring precise air control. The pump's wide voltage compatibility makes it perfect for portable and fixed installations in various industries.

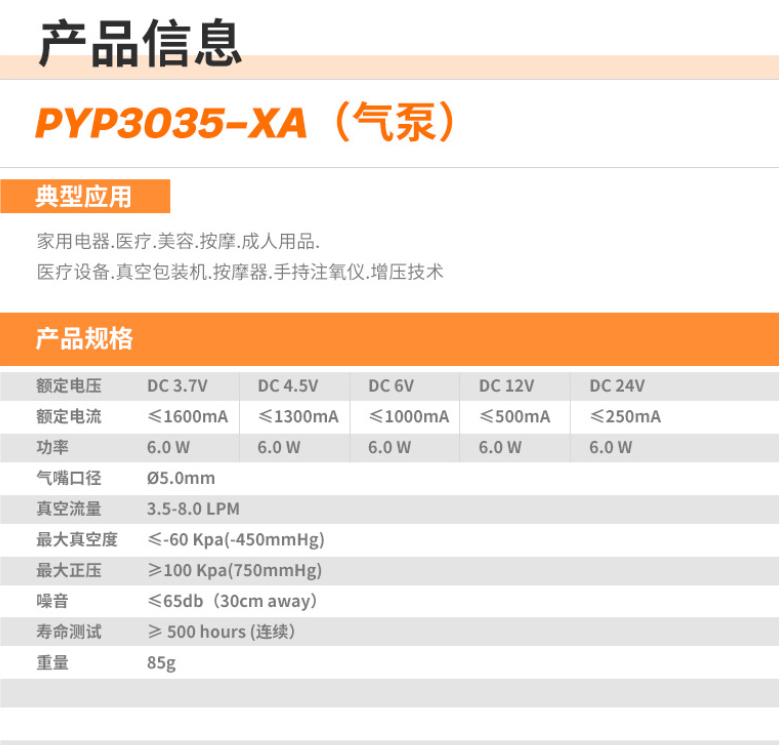

Product Information
|
PYP3035-XA Micro Air Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC 3.7V | DC 4.5V | DC 6V | DC 12V | DC 24V |
| Rate Current | ≤1600mA | ≤1300mA |
≤1000mA | ≤500mA | ≤250mA |
| Power | 6.0 W | 6.0 W | 6.0 W | 6.0 W | 6.0 W |
| Air Tap O.D | φ 5.0mm | ||||
| Vacuum flow rate Flow | 3.5-8.0 LPM | ||||
| Maximum Vacuum Pressure | ≤-60 kpa (-450mmHg) | ||||
| Maximum positive pressure | ≥100 Kpa(750mmHg | ||||
| Noise Level | ≤65db (30cm away) | ||||
| Life Test | ≥500 Hrs (Continue) | ||||
| Net Weight | 85g | ||||

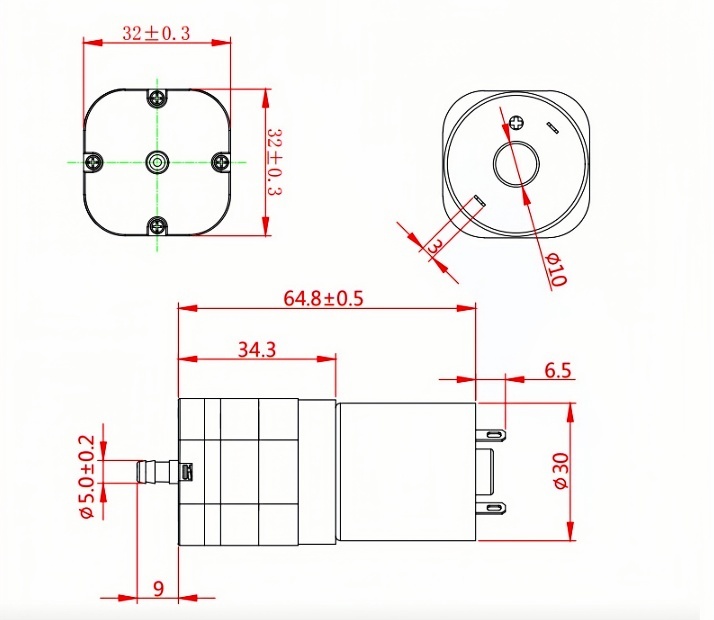

Specification Engineering Drawing
Application
Micro Air Pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher
Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
