DC 3-24V Electric Air Pump for Aromatherapy & Medical Devices – 60KPA | Pincheng Motor

Short Description:

DC electric air pump, 3-24V wide voltage, delivers >60KPA vacuum pressure for aromatherapy machines, breast pumps, and medical devices. Ultra-quiet (<60dB), 50,000-cycle lifespan. Customizable OEM options. Ideal for home appliances, wellness products, and industrial applications. Low power consumption (2.4W) and lightweight (60g). Made by PinCheng Motor.

Model Number: PYP370-XF

Maximum Vacuum Pressure: >60 kPa (450 mmHg)

No-Load Flow Rate: 1.0 - 6.5 LPM (Liters Per Minute)

Life Expectancy: > 50,000 cycles (Tested with 10s ON / 5s OFF)

Port Size: Ø4.1mm

Power Consumption: 2.4W

PDF Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PYP370-XF

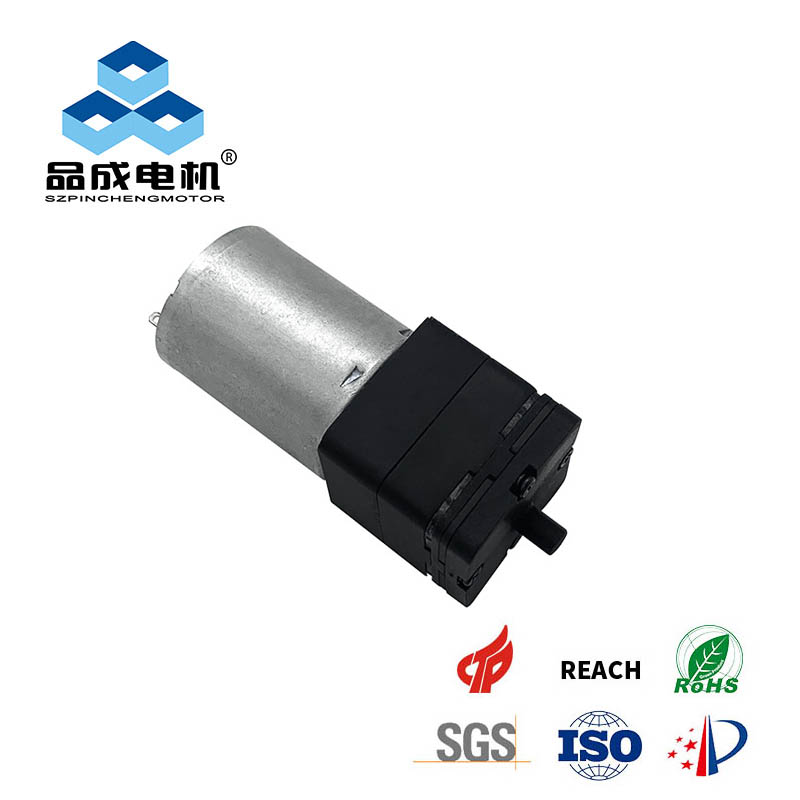

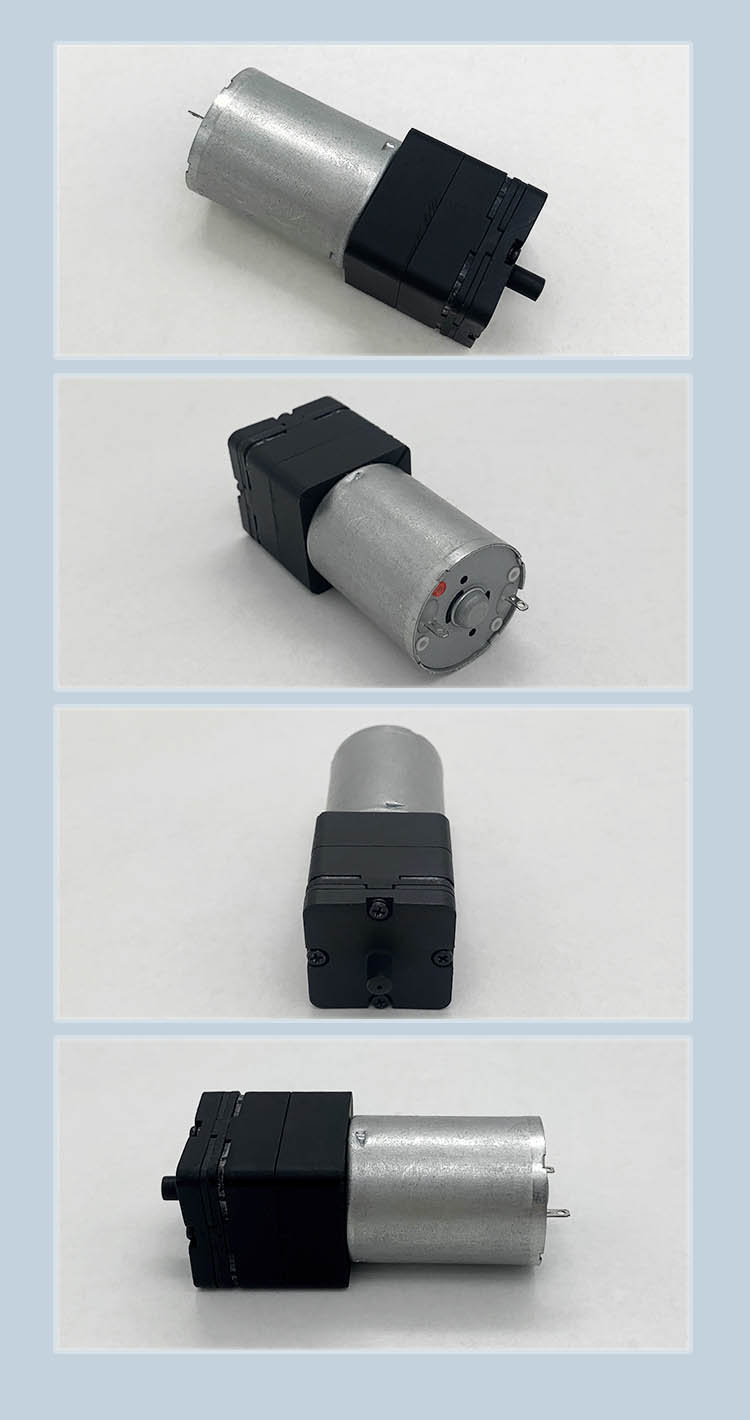

DC 3-24V Electric Air Pump

PYP370 - XF DC 3-24V micro air pump. >60KPA vacuum, 1.0-6.5LPM flow, <60dB noise. For aromatherapy, medical devices, breast pumps. 50,000 cycles lifespan. OEM support.

Breast pumps, and medical devices

Professional research

Long Lifetime

(※ Click this button to inquiry more)

Product Information

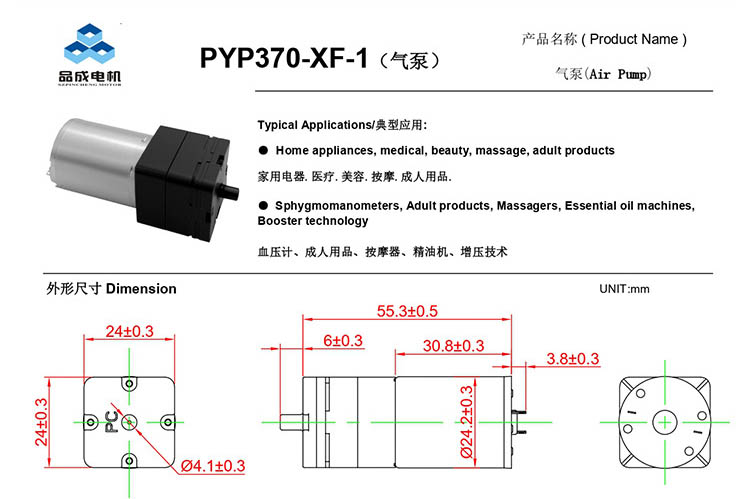

PYP370-XF Electric Dc Diaphragm Air Pump
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3V	DC 6V	DC 9V	DC 12V	DC 24V
Rate Current	≤900mA	≤450mA	≤300mA	≤220mA	≤110mA
Power	2.5w	2.5w	2.5w	2.5w	2.5w
Air Tap O.D	φ 4.1mm
Air Flow	1.0-6.5 LPM
Maximum Air Pressure	≥60kpa
Noise Level	≤60db (30cm away)
Life Test	> 50,000 cycles (Tested with 10s ON / 5s OFF
Net Weight	60g
