I. Mechanical Architecture & Spatial Integration

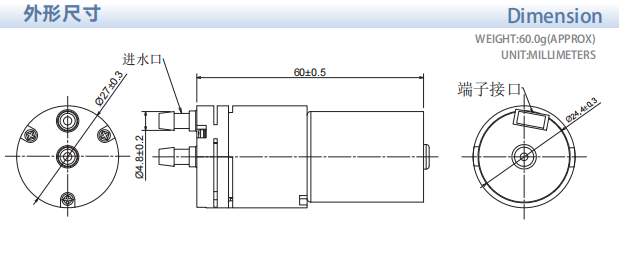

The 370-XA features a remarkably compact footprint, with a motor diameter of 27±0.3 mm and a longitudinal span of 60 mm. To ensure optimal performance within a constrained chassis—such as those found in smart robotic vacuums—designers must consider the following:

• Thermal Management: Whilst the 3.6W power consumption is modest, sufficient clearance (minimum 2mm) must be maintained around the motor casing to facilitate convective thermal dissipation during prolonged duty cycles.

• Vibration Isolation: To uphold the device's premium acoustic profile (<65dB), it is recommended to employ elastomeric mounting brackets. This mitigates the transmission of structural resonance to the primary enclosure during high-pressure (130 PSI) phases.

• Fluidic Connectivity: The nozzles (O.D. ∅4.8mm) are precision-engineered for a secure interference fit with medical-grade silicone tubing. To preclude catastrophic leakage under maximum hydraulic load (900KPa), a tubing I.D. of  3.5–4.0 mm is advised.

II. Electrotechnical System Design

Integration of the brushless DC (BLDC) architecture necessitates a sophisticated approach to power delivery:

• Voltage Regulation: The pump is available in fixed voltage variants (DC 3V through 24V). Engineers must ensure the supply rail remains within a ±10% tolerance to prevent torque fluctuations or premature degradation of the integrated drive circuitry.

• Polarity & Protection: Absolute adherence to terminal polarity is imperative; reverse bias will result in irreparable internal damage. Incorporating a Schottky diode for reverse-polarity protection is a prudent design choice.

• Inrush Current Accommodation: The power stage should be dimensioned to accommodate transient inrush currents during the initiation of the self-priming sequence, particularly when the system is primed against a pre-existing head pressure.

III. Fluid Dynamics & Maintenance Strategy

The 370-XA is distinguished by its formidable self-priming capability (>5m), offering unparalleled flexibility in reservoir placement:

• Suction & Lift Optimization: The >5m suction head allows the fluid reservoir to be situated significantly below the pump’s elevation, ideal for bottom-mounted water tanks in smart appliances.

• Filtration Protocols: To preserve the integrity of the diaphragm over its >500 hour lifespan, an inline filter (pore size 80–120 mesh) should be integrated at the intake. This precludes the ingress of particulates that could compromise the seal integrity of the internal valves.

• Dry-Run Resilience: Although the pump exhibits resilience during intermittent dry-running, it is recommended to implement an ultrasonic or capacitive water-level sensor to prevent prolonged dry operation, thereby extending the motor's service life.

IV. Application-Specific Logic

• Smart Robotics: For autonomous mopping modules, utilize Pulse Width Modulation (PWM) via the host MCU to vary the pump’s duty cycle. This allows for granular control over the flow rate (0.3–0. LPM), catering to diverse flooring textures.

• Hygienic Devices: In portable oral irrigators, the pump's rapid response time facilitates the generation of high-frequency water pulses, a prerequisite for effective periodontal debridement.

V. Compliance & Environmental Resilience

Engineered for the rigours of domestic and medical environments, the pump maintains a stable performance envelope across a wide ambient range. All materials utilised in the fluid path are selected for their chemical compatibility with standard aqueous solutions, ensuring no deleterious leaching occurs throughout the product's operational life.
