370 Diaphragm Micro Water Pump for Water Dispenser
Customized Service
To provide customers with quality products and satisfactory service
PYSP370-XF
Mini Water Diaphragm pump
The PYSP370-XF mini water diaphragm pump features self-priming operation with food-grade materials for water dispensers and purification systems. Utilizes ultrasonic technology and precision bearings for quiet, efficient performance. Ideal for OEM drinking water applications requiring safe, reliable circulation.
Product Information
|
PYSP370-XF Diaphragm Water Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC 3V | DC 6V | DC 9V | DC 12V | DC 24V |
| Rate Current | ≤1200mA | ≤600mA | ≤400mA | ≤300mA | ≤150mA |
| Power | 3.6w | 3.6w | 3.6w | 3.6w | 3.6w |
| Air Tap O.D | φ 6.5mm | ||||
| Water Flow | 0.3-1.0 LPM | ||||
| Maximum Water Pressure | ≥30 psi (200kpa) | ||||
| Noise Level | ≤65db (30cm away) | ||||
| Life Test | ≥500 Hrs (Continue) | ||||
| Pump Head | ≥5m | ||||
| Suction Head | ≥5m | ||||
| Net Weight | 60g | ||||

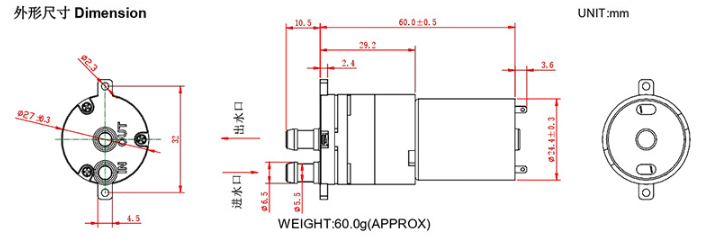

Specification Engineering Drawing
Application
DC water pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

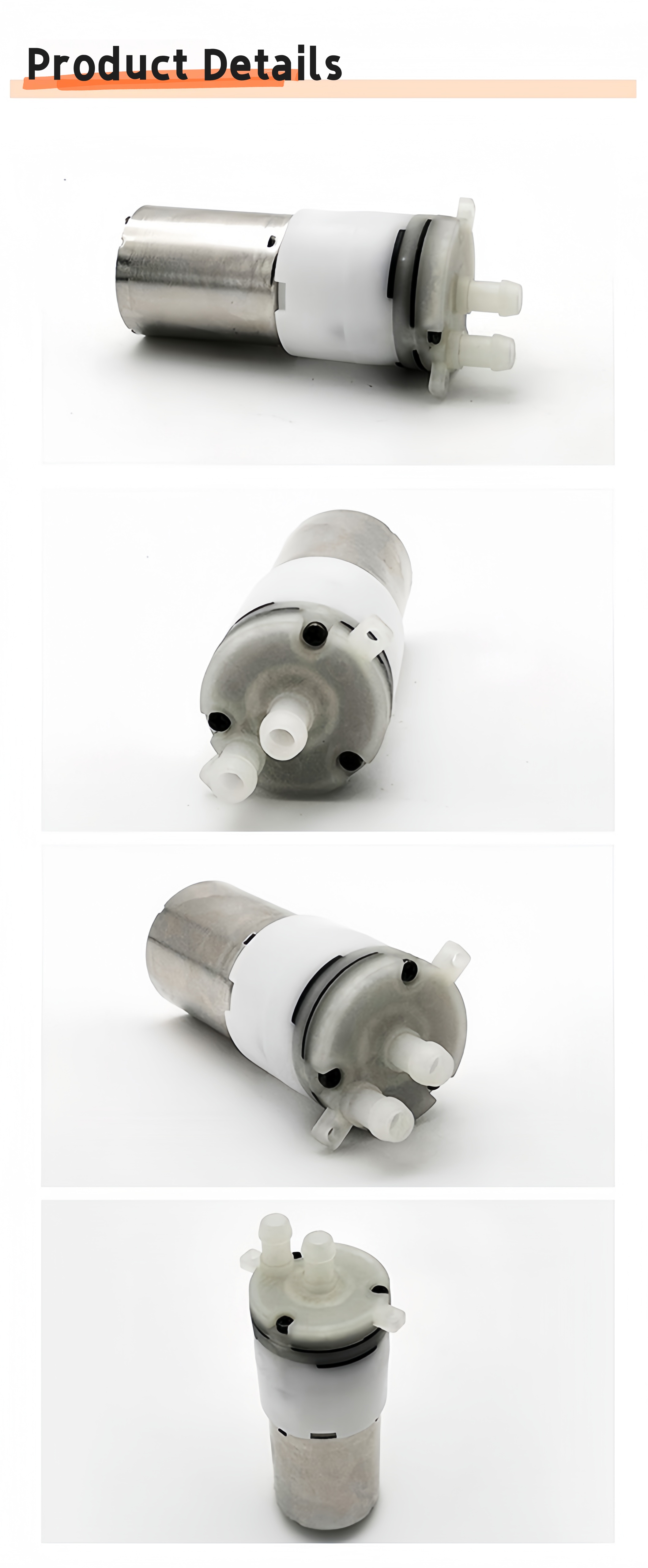

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
