350 Mini Peristaltic Pump for Low Flow Liquid Transfer & Dispensing
Customized Service
To provide customers with quality products and satisfactory service
PYRP350-XA

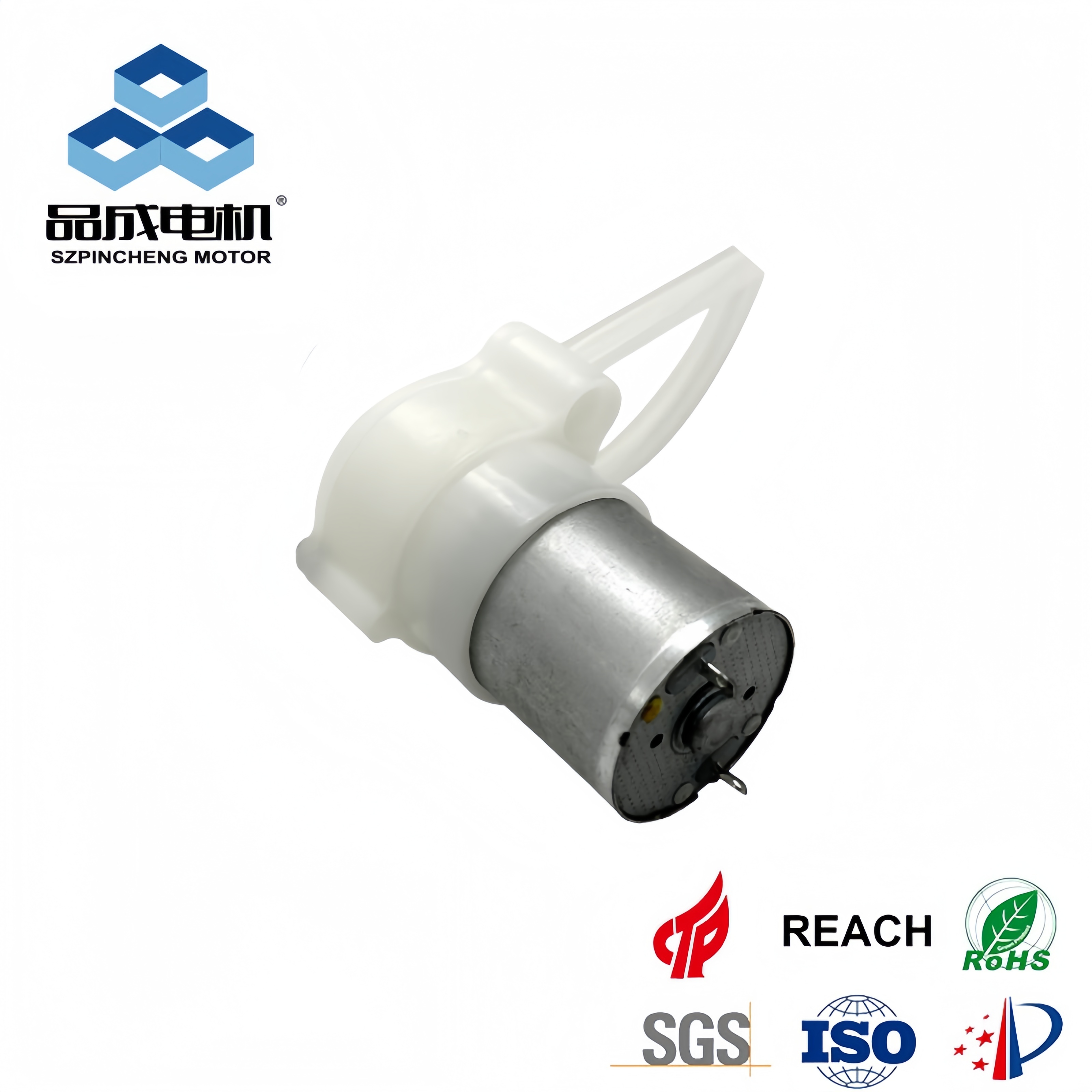

Mini peristaltic pump
Export with confidence. The 350 Mini Pump is fully compliant with REACH and SGS environmental standards, utilizing biocompatible materials that prevent cross-contamination. It is the trusted choice for medical-grade equipment and food-safe applications where hygiene and regulatory compliance are non-negotiable.
Product Information
|
PYRP350-XA Mini peristaltic pump |
||||
| *OEM/ODM Service available, contact us to get more details! | ||||
| Rate Voltage | DC 3V | DC 3.7V | DC 4.5V | DC 6V |
| Rate Current | ≤800mA | ≤700mA | ≤600mA | ≤400mA |
| Power | 2.4w | 2.4w | 2.4w | 2.4w |
| Air Tap O.D | φ 6.0mm | |||
| Water Flow | 150-200mLPM | |||
| Maximum Vacuum | ≤-20kpa (-150mmHg) | |||
| Noise Level | ≤65db (30cm away) | |||
| Life Test | ≥100,000 Times(ON 2 seconds, OFF 2 seconds) |
|||
| Pump Head | ≥0.5m | |||
| Suction Head | ≥0.5m | |||
| Net Weight | 50g | |||

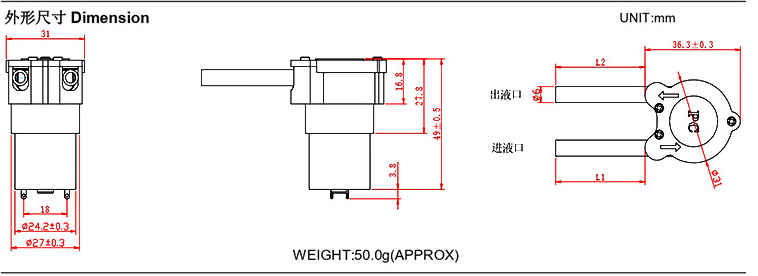

Specification Engineering Drawing
Manufacturing Quality & Compliance
At Pinmotor, we deliver engineering-grade reliability designed for seamless integration into high-volume OEM production lines. The 350 Mini Peristaltic Pump series is manufactured under a rigorous quality management system, ensuring each unit meets the following global standards for safety, performance, and environmental responsibility:
ISO 9001:2015 Certified
Our quality management system ensures consistent product output, from raw material inspection to final functional testing of every foam pump.
IATF 16949 Compliant
We leverage automotive-grade process discipline to guarantee ultra-low defect rates and long-term reliability in consumer electronic applications.
RoHS & REACH Fully Compliant
All materials used in the peristaltic series—including the motor brushes, diaphragm, and housing—are free from hazardous substances, ensuring your end-product is ready for the EU and North American markets.
Technical Note: Full documentation, including material safety data sheets (MSDS) and compliance certificates, is available upon request for your engineering audit.
Application
| Industry Sector | Typical Applications | Core Engineering Advantages |
|---|---|---|
| Smart Appliances | Automatic soap dispensers, laundry detergent dosing systems, and smart toilets. | Clog-Free Design: Seamlessly handles high-viscosity fluids and detergents without leakage or blockage. |
| Medical & Laboratory | Biochemical analyzers, portable dialysis units, and reagent titration systems. | Zero Contamination: Fluid only contacts the biocompatible tubing, meeting strict REACH/SGS hygiene standards. |
| Environmental Monitoring | Water quality samplers, COD online monitors, and chemical dosing pumps. | Self-Priming Ability: Features a powerful 2-meter dry prime suction lift for consistent sample collection. |
| Industrial Automation | Inkjet printer ink circulation, industrial gluing machines, and automated lubrication. | Extended Duty Cycle: Validated for 100,000+ cycles, ensuring 24/7 reliability in high-frequency OEM production. |
| Commercial Food & Beverage | Coffee machine milk frothers, automated cocktail mixers, and fragrance dispensers. | Precision Dosing: 12V/24V DC motor integration allows for micro-volume accuracy and repeatable flow rates. |
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher
We supply more than just product, we engineer solutions optimised to suit your application requirements.
What is the maximum flow rate of the 350 Mini Peristaltic Pump?
The 350 series is optimized for low-flow precision. Depending on the tubing size and motor speed (12V/24V), it typically delivers a stable flow range of 5ml/min to 95ml/min. For your specific OEM requirements, we provide custom calibration to ensure exact dosing accuracy.
How long does the pump tubing last under continuous operation?
Our standard BPT tubing is engineered for a long service life of over 1,000 hours, while silicone options offer cost-effective performance for shorter cycles. The 350 pump head itself is tested for 100,000+ cycles, ensuring industrial-grade reliability for soap dispensers and medical devices.
Is the 350 series pump compatible with harsh chemicals or oils?
Yes, compatibility depends on the tubing material. We offer BPT, Silicone, and Viton tubing. While silicone is great for water and detergents, BPT is superior for mild acids and bases. We recommend a 24-hour immersion test for specific chemical compatibility to ensure 100% safety.
Can I use this mini pump for medical or food-grade applications?
Absolutely. The 350 Mini Pump uses food-grade, biocompatible tubing that meets REACH and SGS standards. Since the liquid only touches the inside of the tube, there is zero risk of cross-contamination, making it ideal for lab equipment and food flavoring dispensers.
What are the power requirements for the 350 Mini Peristaltic Pump?
This pump is available in 12V DC and 24V DC versions. The low-power design makes it perfect for battery-operated devices or integrated PCB systems. It features a simple two-wire connection for easy “plug-and-play” installation in any compact OEM housing.
