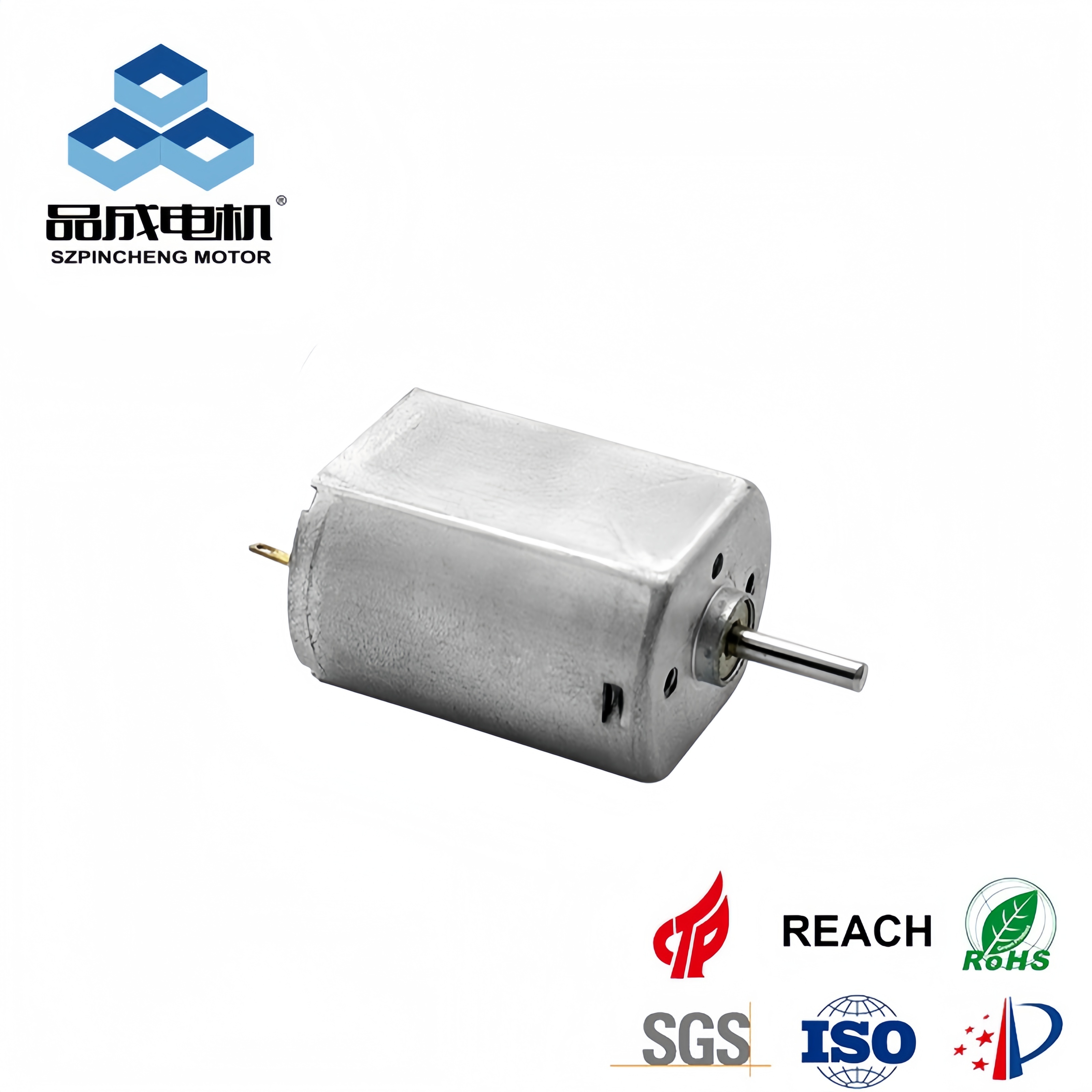

FF-130SH Micro DC Motor
The FF-130SH 130 Micro DC Motor with a precious metal brush ensures superior longevity and low noise. This high-performance, compact motor is the ideal choice for demanding applications like electric toys, precision tattoo machines, and personal care devices such as head massagers. Experience high efficiency and stable operation.
Product Information
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Tange | Nominal | Speed (r/min) | Current (A) | Speed (r/min) | Current (A) | Torque | Output (W) | Torque | Current (A) | |||
| PC-FF-130SHV-15165 | 2.0-4.0 | 3.0V | 4600 | 0.118 | 3360 | 0.316 | 1.46 | 7.65 | 0.65 | 5.40 | 55.0 | 0.85 |
| PC-RF-130CHV-12240 | 4.0-7.0 | 6.0V | 6053 | 0.032 | 5004 | 0.153 | 1.27 | 6.24 | 0.57 | 7.33 | 74.8 | 0.73 |
| PC-RF-130CHV-12250 | 9.0-13.0 | 12.0V | 12150 | 0.078 | 9840 | 0.335 | 2.63 | 9.8 | 2.70 | 13.82 | 141.0 | 1.42 |

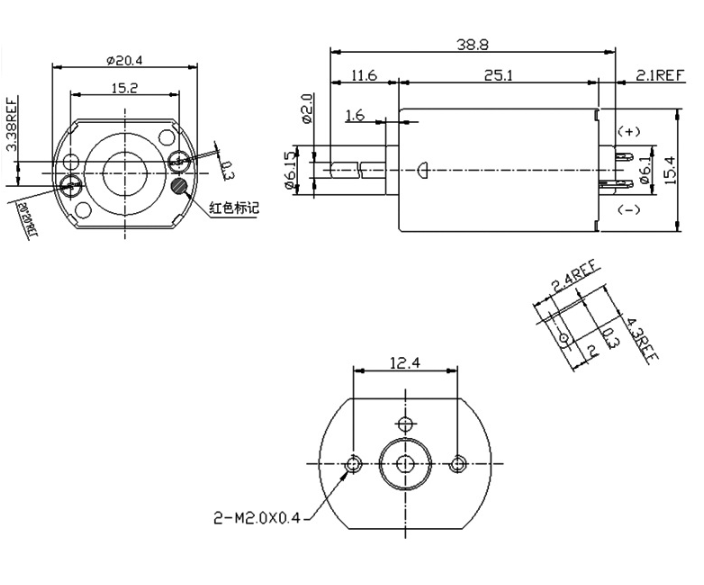

Specification Engineering Drawing
Application
Micro dc motor is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher
