12V Quiet Release Electric Solenoid Valve – Medical Devices | Pincheng Motor

Short Description:

12V Small 2/2 Normally Closed Electric Solenoid Valve – Medical-grade solenoid valve for blood pressure monitors and breast pumps. Features silent operation, low power consumption (≤3W), and fail-safe design (normally closed). Compact size (e.g., Ø10×25mm) enables integration into portable medical devices. RoHS-compliant, 100,000+ cycles lifespan. Custom OEM support available.

Model Number: PYF3-XN

Valve Type: 2/2 Normally Closed (NC)

Pressure Range: 0–100 psi (0–6.9 bar)

Fluid Compatibility: Air, O₂, Water, Medical-Grade Lubricants

Exhaust Speed: ≤4s

Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PYF3-XN

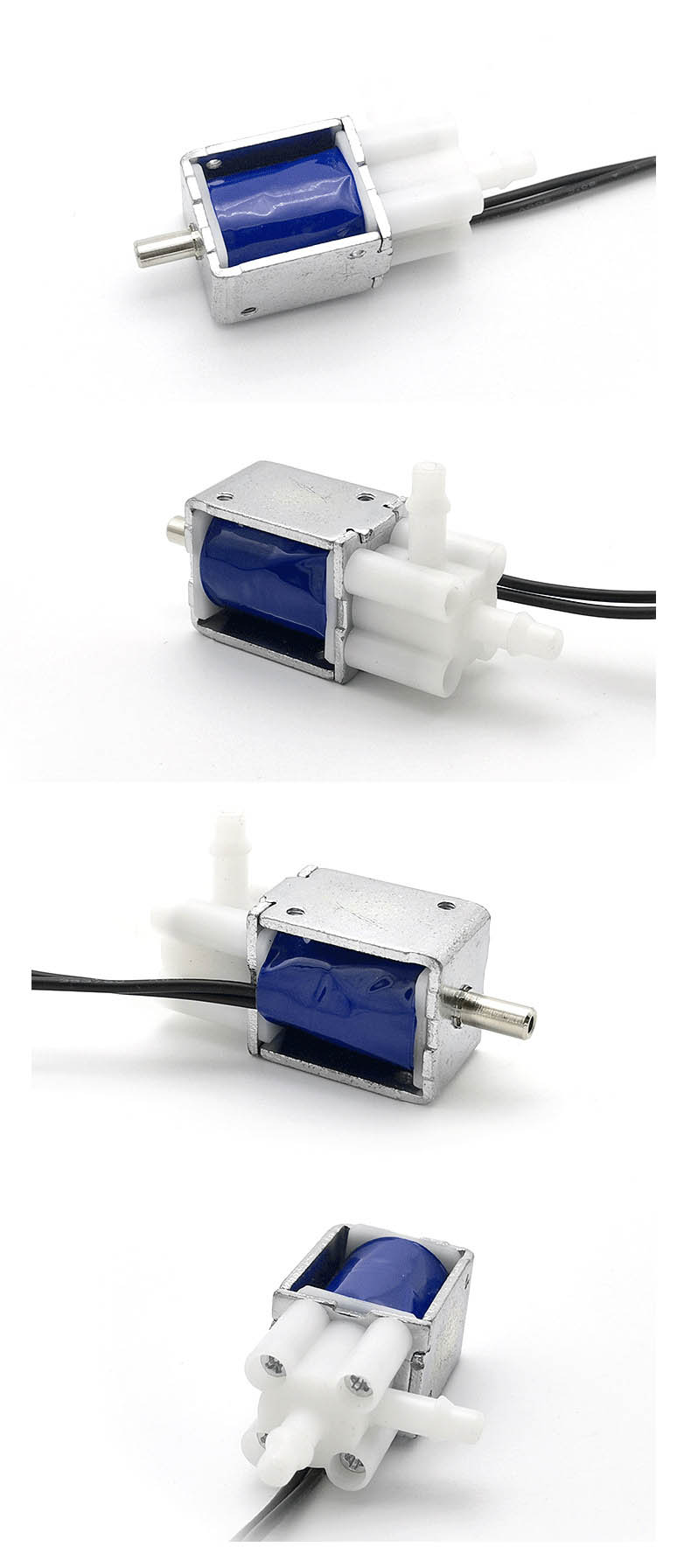

Small Electric Solenoid Valve

PYF3 - XN small electric solenoid valve, 2/2 NC Solenoid Valve for blood pressure monitors & breast pumps. Medical-grade, silent, low-power. Fail-safe design. Compact integration. RoHS-compliant.

Small solenoid valve for beast pump

Professional research

Long Lifetime

(※ Click this button to inquiry more)

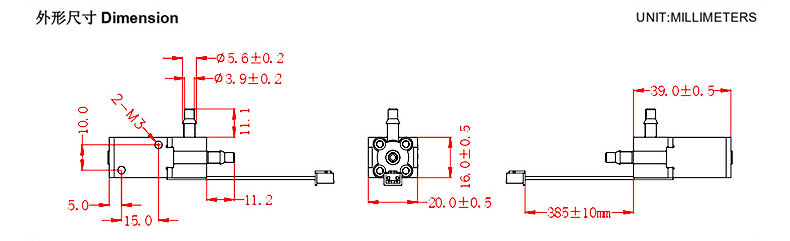

Product Information

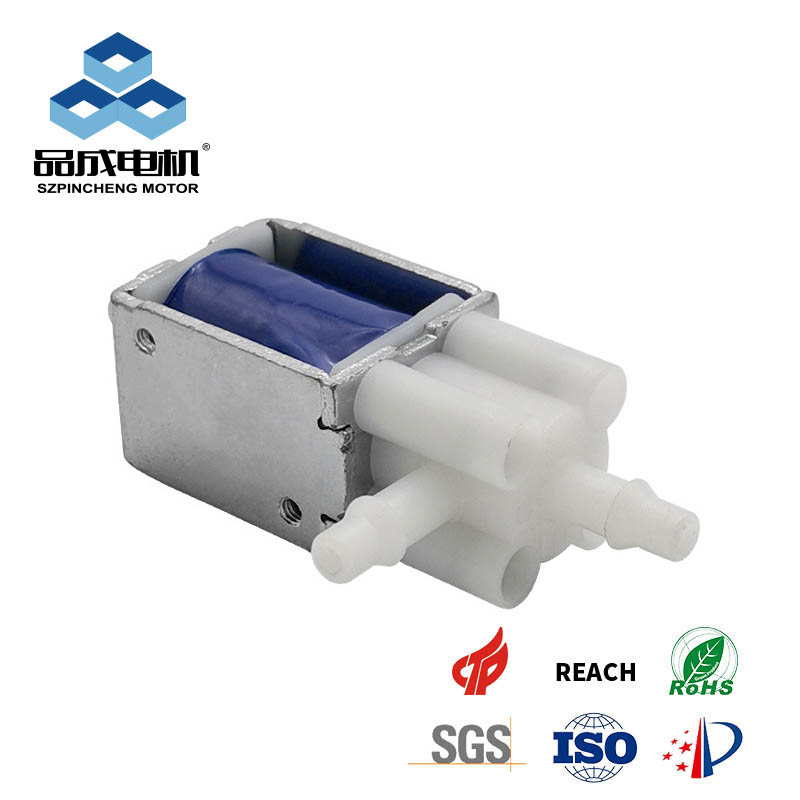

PYF3-XN Dc Small Solenoid Valve
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 6V	DC 12V	DC 24V
Rate Current	≤200±10%mA	≤200±10%mA	≤200±10%mA
Power	1.2w	1.44w	2.88w
DC Resistance	30±10%Ω	100±10%Ω	200±10%Ω
Air Tap O.D	φ 5.6mm
Medium	Air
Maximum Pressure	40kpa (300mmHg)
Exhaust Speed	＜4S （from 300 to 15mmHg in a 500cc tank）
Life Test	≥200,000 Times (on 5s, off 5s)
Leakage	＜3mmHg/min under 300 mmHg in a 500cc tank
Operation Temperature	0~50℃ 30% to 85%RH
Type	Normally opened
