The diaphragm pump is the cornerstone of modern fluid and air handling technology and embodies simple and efficient engineering.At the heart of the technology is the diaphragm itself -- a flexible diaphragm that does the crucial job of transporting air.For anyone integrating these components into medical devices, environmental sensors, or industrial equipment, it is critical to understand how the diaphragm helps to pump air.

Mechanical principle of diaphragm

A diaphragm pump is a positive displacement pump that uses a combination of a flexible diaphragm and a one-way valve to deliver fluid or air.Unlike centrifugal pumps, which rely on rotational forces, diaphragm pumps utilize reciprocating motion to form a sealed, isolated pump cavity. The role of the diaphragm:

1. Volume change: the diaphragm is a flexible circular sheet, forming a side wall of the pump cavity.It connected to a mechanical linkage, the connecting rod driven by a dc motor.

2. Inspiratory stroke: when the motor pulls the connecting rod backward, the diaphragm bends inward to increase the volume of the pump chamber.The increase in volume causes the pressure in the pump chamber to be lower than the external pressure, thus creating a vacuum. External air is then drawn into the pump chamber through the intake valve.

3. Exhaust stroke: when the motor pushes the connecting rod forward, the diaphragm is bent outward to reduce the volume of the pump cavity.The compression result in higher pressure pump cavity, forcing air through the exhaust valve. This simple yet precise reciprocating motion is the core of the micro diaphragm air pump. The integrity and material of the diaphragm are crucial to the efficiency and service life of the pump.

Advantages of diaphragm technology

The diaphragm design has several significant advantages that make it the first choice for a variety of miniature pneumatic applications.

1. No pollution pumping

One of its most significant advantages is that the diaphragm forms a seal that isolates the pumping mechanism (motors and gears) from the air being pumped.This means that the air remains clean and free from motor lubricant or wear particles, which is essential for medical and laboratory applications.

2. Dry running ability

Unlike many other pump types that rely on the pumping medium for lubrication or cooling, diaphragm pumps can be dry operated indefinitely without damage.This makes them extremely reliable in intermittent or low-flow applications.

3. Excellent sealing and pressure control

This design can achieve precise control of pressure and flow.Whether you need a small 12V air pump for simple aeration, or a high pressure solution, the diaphragm's sealed chamber ensures maximum efficiency.In addition, the simplicity of the micro diaphragm pump assembly enhances its overall reliability and ease of maintenance.

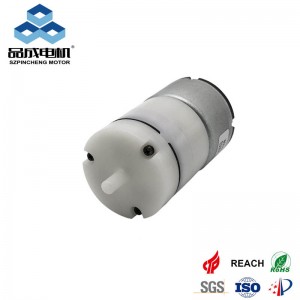

We sincerely recommend Pincheng diaphragm pumps because they are the best choice:

Unparalleled durability and service life

The diaphragm is the component that bears the greatest force.We use only the highest grade proprietary elasteer materials, which have been carefully designed to maximize service life and enhance chemical resistance. Our unwavering pursuit of materials science means that the service life of our pumps, including the robust 12V DC micro diaphragm air pump, far exceeds that of our competitors.

Precision of each stroke

our manufacturing process to ensure that from the motor to the seat of each component to achieve the most stringent standard tolerance. This high precision ensures the highest efficiency, enabling our micro diaphragm air pump to achieve higher flow and pressure with lower energy consumption.

Tailor-made, helping you succeed

We understand that no single solution can meet all your needs. Whether you need a compact mini diaphragm air pump for portable devices or a high-flow device for complex systems, we can offer in-depth customization services.Our engineering team will work hand in hand with you to optimize pump performance characteristics - flow, pressure and noise - to perfectly match your application.
