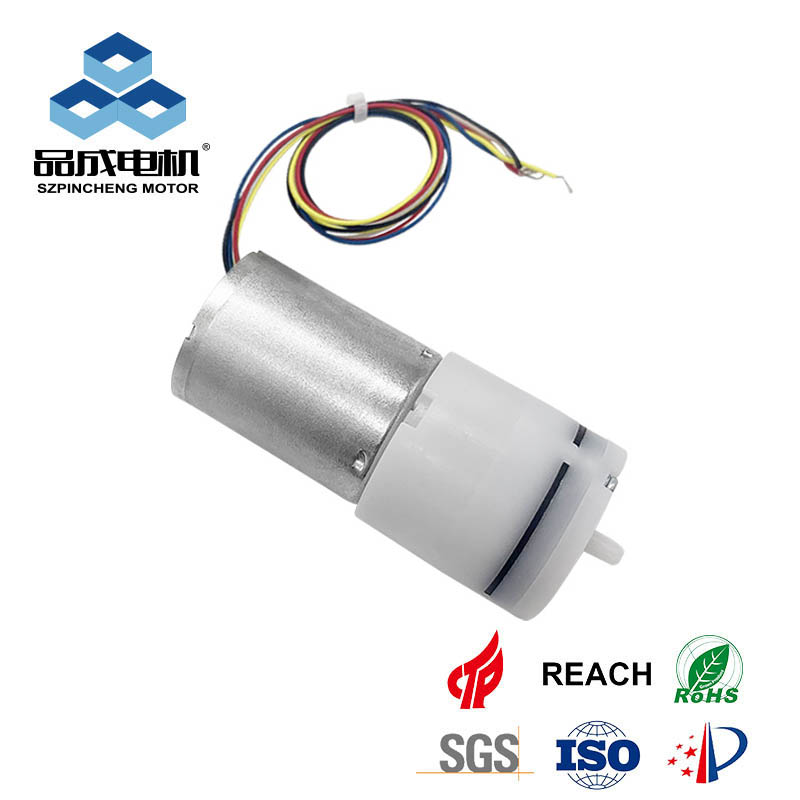

370-XA 12V Brushless Micro Air Pump for Medical Sphygmomanometers
Customized Service
To provide customers with quality products and satisfactory service
PYP370-XA
Brushless Mini Air Diaphragm pump
PYP370 - XA Brushless Dc Air pump, boasts a life expectancy of over 50,000 on-off cycles, ensuring minimal maintenance requirements and reduced downtime.
Product Information
|
PYP370-XA Brushless Dc Diaphragm Air Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC 3V | DC 6V | DC 9V | DC 12V | DC 24V |
| Rate Current | ≤800mA | ≤400mA | ≤260mA | ≤200mA | ≤100mA |
| Power | 2.4w | 2.4w | 2.4w | 2.4w | 2.4W |
| Air Tap O.D | φ 4.2mm | ||||
| Air Flow | 0.5-2.5 LPM | ||||
| Maximum Pressure | ≥600Kpa (450mmHg) | ||||
| Noise Level | ≤60db (30cm away) | ||||
| Life Test | ≥20,00 Hrs (Continue) | ||||
| Leakage | ＜3.0mmHg/min (from 300mmHg in a 500cc tank) | ||||
| Inflation Time | ≤10sec (from 300mmHg in a 500cc tank) | ||||
| Net Weight | 60g | ||||

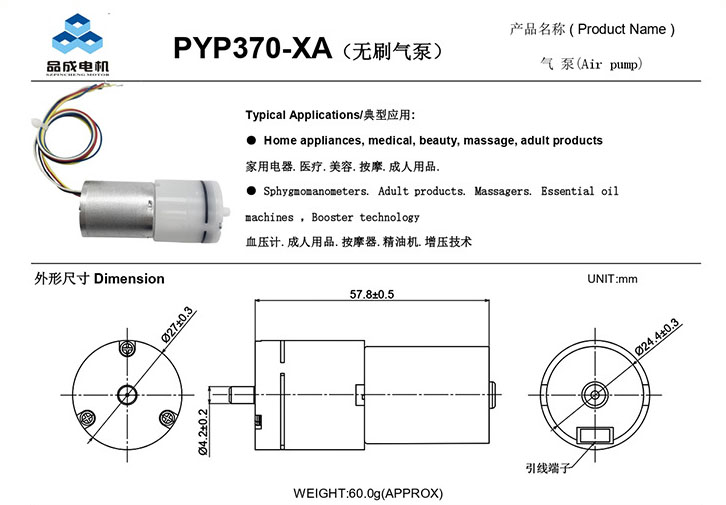

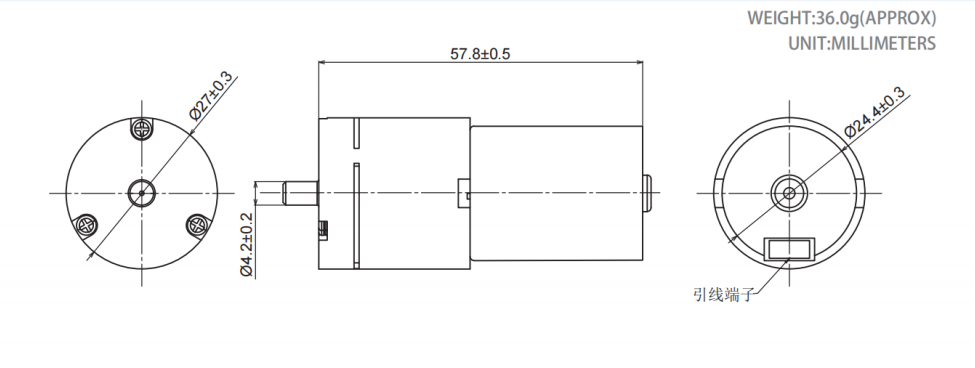

Specification Engineering Drawing
Application
Brushless DC air pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

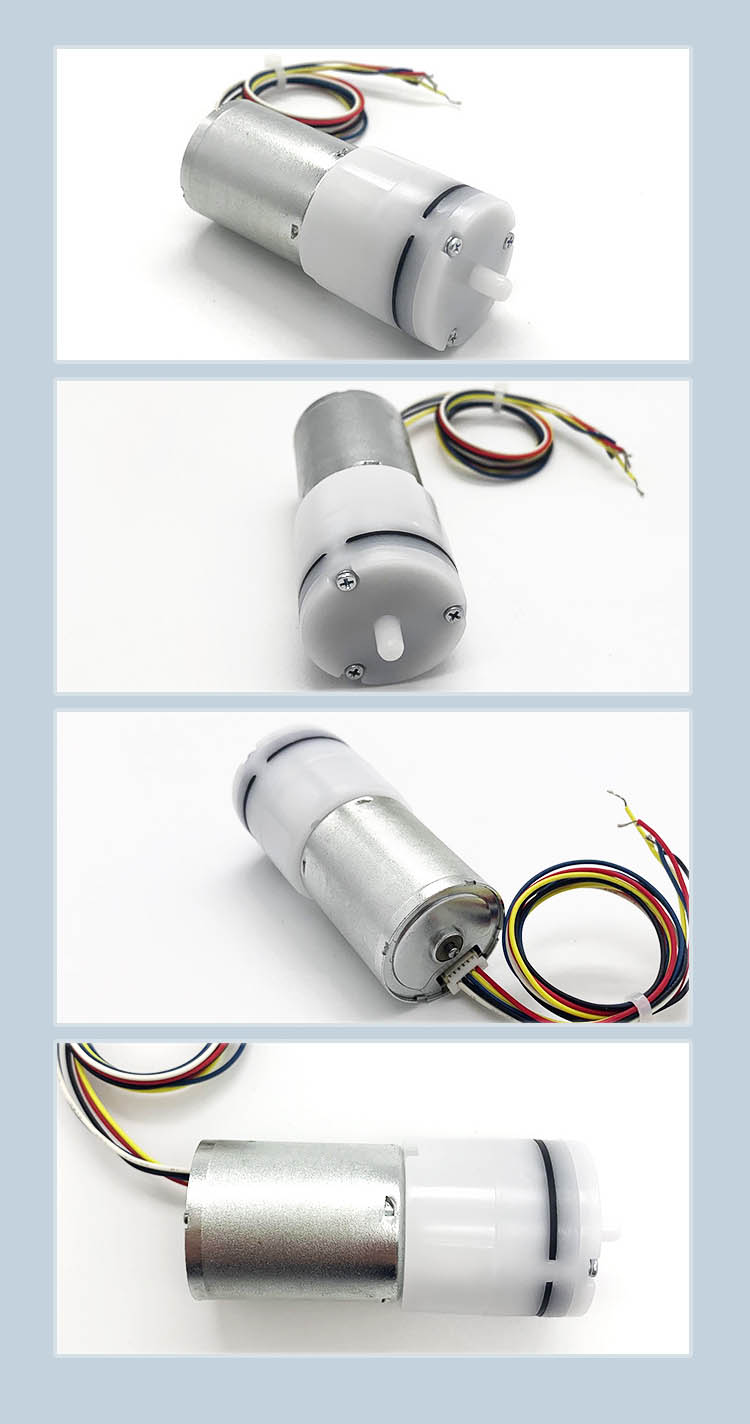

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
Q1: Why should I choose a brushless DC air pump over a standard brushed motor?
A: The primary advantage is extreme durability and reliability. Our 370-XA utilizes a premium brushless motor, offering a rigorously tested lifespan of >50,000 cycles (ON 10s, OFF 5s). Unlike brushed motors, it has no carbon brush wear, which means zero friction dust, lower heat generation, and significantly reduced maintenance costs for high-end medical devices and sphygmomanometers.
Q2: Can the PYP370-XA be customized for our specific medical or home appliance project?
A: Yes, absolutely. We provide comprehensive OEM/ODM services. While our standard 370-XA operates at DC 12V , we can customize the rated voltage (3V, 6V, 9V options available) , airflow (0.5-3.0 LPM) , and terminal wires to perfectly match your essential oil machines, massagers, or booster technology applications.
Q3: Is this micro air pump quiet enough for bedroom or portable use?
A: Definitely. We engineered the 370-XA with noise reduction in mind. It operates at <60dB (measured from 30cm away). Combined with its lightweight 36g body , it is the ideal choice for noise-sensitive environments, such as portable adult products, home beauty devices, and bedside medical equipment.
Q4: What is the inflation efficiency and maximum pressure of this 12V mini air pump?
A: The 370-XA delivers robust pneumatic performance. It achieves a maximum pressure of >60KPa (450mmHg). For inflation speed, it can pressurize a 500cc tank from 0 to 300mmHg in less than 10 seconds, ensuring fast and stable operation for pneumatic massage systems and blood pressure monitors.
