750and755 DC Motor 48V High Power for Power Tools and Aircraft Model

Short Description:

The 750/755 DC motor is a high-power 48V micro DC motor designed for power tools and aircraft models. With compact dimensions (66.0×95.0mm) and robust construction, it delivers exceptional torque and efficiency. This motor features reversible rotation (CCW/CW) and meets SGS, ISO, REACH, and RoHS certifications. Ideal for industrial tools, hobbyist drones, and automotive applications requiring reliable performance. Supports OEM customization for specific voltage, shaft, and mounting requirements. Durable design ensures long service life under demanding conditions. Perfect for high-power applications where space and reliability are critical.




  • Product Name: 750/755 High-Power DC Motor
  • Rated Voltage: 48V DC
  • Motor Type: Permanent Magnet DC Motor
  • Dimensions: 66.0×95.0mm (Compact Design)
  • Rotation: Reversible (CCW/CW)
  • Mounting: 2-M4×0.7 Threaded Holes
  • Shaft Type: Customizable Output Shaft

    • Product Detail

    Video

    Product Tags

    Customized Service

    To provide customers with quality products and satisfactory service

    MOQ 500pcs

    Fast Delivery

    Customized Sample

    Excellent Quality

    Competitive Price

    Modern Testing Equipment

    RK-775/770 small DC motor

    The RK-775/770 small DC motor delivers high-power 48V performance for demanding applications like power tools and industrial drones. Featuring compact design, reversible rotation, and robust construction with SGS/ISO/REACH certifications. Supports custom OEM configurations for precise voltage and torque requirements. Ideal for automotive systems and heavy-duty equipment requiring reliable operation.

    DC Motor for Power Tools

    Professional research

    Long Lifetime

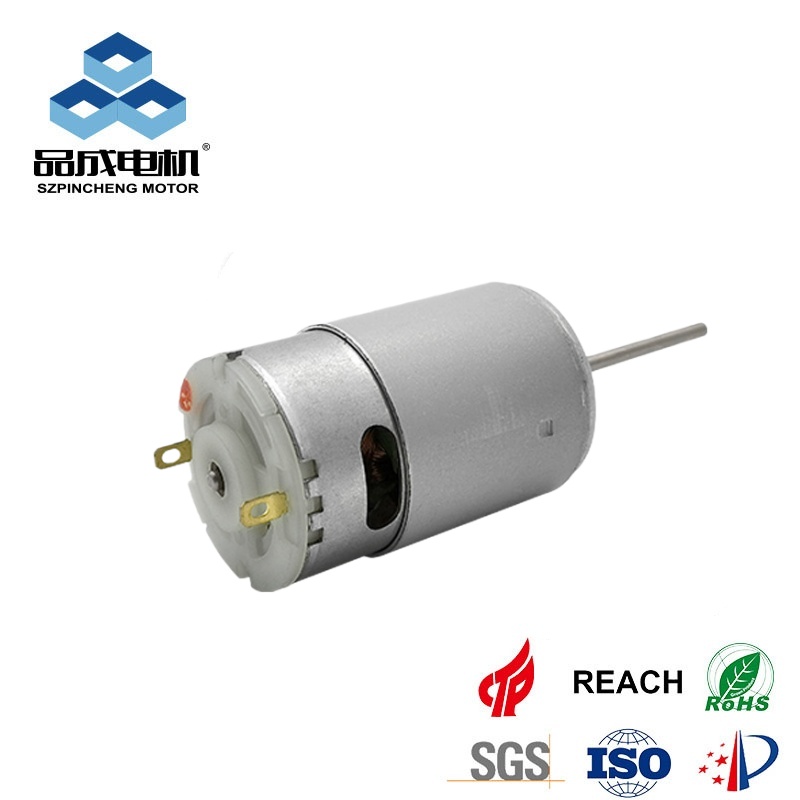

    Small motor for electric tools
    (※ Click this button to inquiry more)

    Product Information

    Model Voltage No Load At Maximum Efficiency Stall
    Operating Tange Nominal Speed (r/min) Current (A) Speed (r/min) Current (A) Torque Output (W) Torque Current (A)
    PC-RK-775-3385 12.0-30.0 24V 4700 0.163 4048 1.160 43.53 444.0 18.43 362.7 3700.0 8.5
    PC-RK-775-6517 9.0-18.0 12V 11000 0.950 9790 7.440 64.70 660.0 66.27 588.2 6000.0  60.0
    PC-RK-775-23155 12.0-30.0  24V 2500 0.09 2100 0.48 36.07 368.0 7.92 225.4 2300.0 2.5

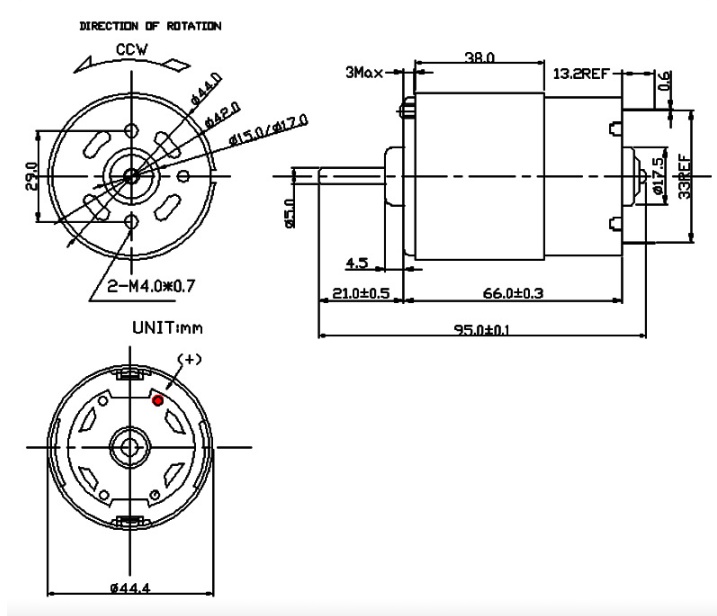

    Specification Engineering Drawing

    48V mini DC motor

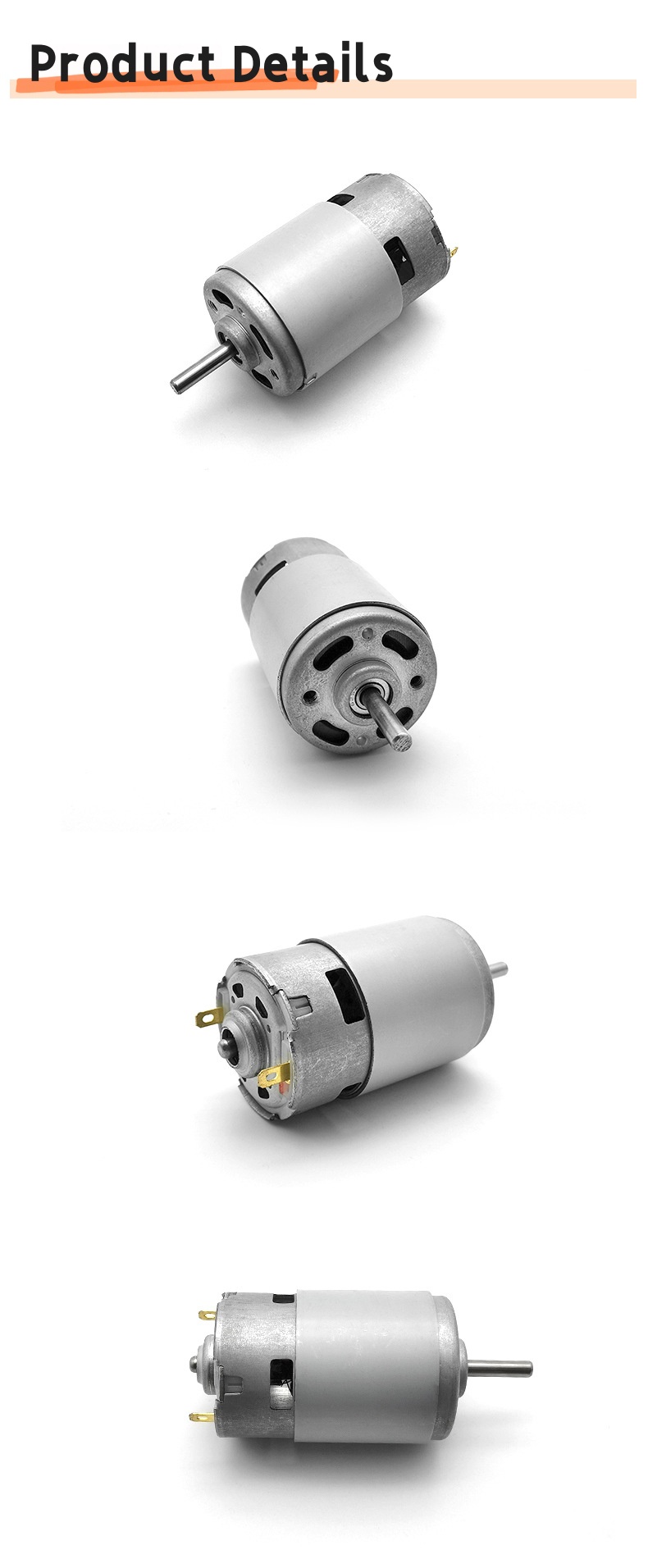

    Electric tool small motor

    Application

    Micro dc motor is suitable for a variety of application scenarios

    Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;

    Tea table

    Tea table

    Vacuum packing machine

    Vacuum packing machine

    Water dispenser

    Water dispenser

    Foam hand sanitizer

    Foam hand sanitizer

    Electric decanter

    Electric decanter

    dishwasher

    dishwasher

    Images for micro gear pump---100% live-action shooting, Quality Guarantee
