High-Efficiency 6V Mini Air Pump for Beauty Devices & Portable Medical Equipment

Short Description:

Looking for a reliable 6 Volt mini air pump? Our Pincheng micro pump features low noise and long service life, ideal for beauty devices, medical monitors, and massagers. We offer OEM/ODM customization and wholesale prices. Request a free quote and samples today!

The 6v dc mini air pump delivers high-performance airflow for essential oil diffusers, beauty devices, and membrane cutting machines. This small dc air pump operates across 3.7V to 24V with powerful 4.0-13.0 LPM flow and >80KPA pressure. Its micro diaphragm air pump technology ensures <60db quiet operation and >30,000-cycle durability in a compact 133g dual-port design. Perfect for applications requiring reliable oxygen boosting and pneumatic control.

Model: PYP3042-X

Type: Micro Diaphragm Air Pump

Operating Voltage: 3.7V-24V DC

Flow Rate: 4.0-13.0 LPM

Max Pressure: >80 KPA

Lifespan: >30,000 cycles

PDF Send email to us

Product Detail

Video

FAQ Module for Mini Air Pump

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PYP3042-X Micro air Pump

The 6 volt mini air pump delivers versatile power for essential oil diffusers, beauty devices, and precision membrane cutters. It also supports oxygen concentrators, blood pressure monitors, and adult products. With wide 3.7V-24V DC voltage range and dual-port design, it provides stable high-flow air for medical, home appliance, and industrial systems.

ISO19001,RoHS,IATF16949

Professional research

Long Lifetime

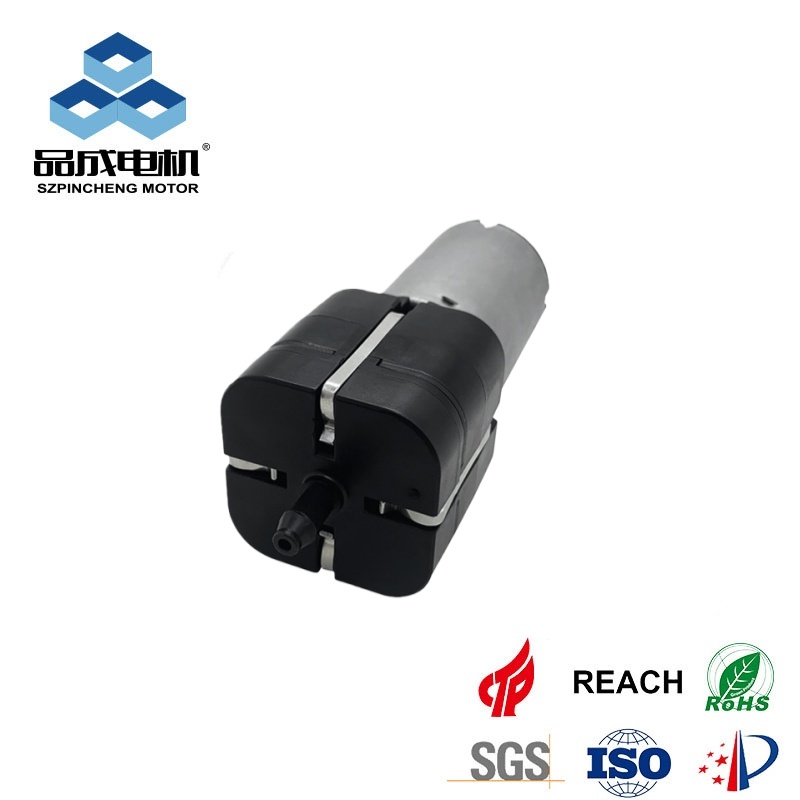

micro pump features low noise and long service life, ideal for beauty devices, medical monitors, and massagers.

(※ Click this button to inquiry more)

Product Information

PYP3042-X Micro Air Pump
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3.7V	DC 6V	DC 12V	DC 13.5V	DC 24V
Rate Current	≤800mA	≤700mA	≤600mA	≤500mA	≤400mA
Power	5.4 W	5.4 W	5.4 W	5.4 W	5.4 W
Air Tap O.D	φ 5.9mm
Air flow	4.0-13.0 LPM
Maximum Pressure	≥80 kpa (450mmHg)
Noise Level	≤60db (30cm away)
Life Test	≥30,000Times (0N10 seconds, 0FF5 seconds)
Net Weight	133g
Inflation Time	<10s(From 0 to 300mmHg in a 500cc tank)
Leakage	<3.0mmHg/min(from 300mmHg in a 500cc tank)

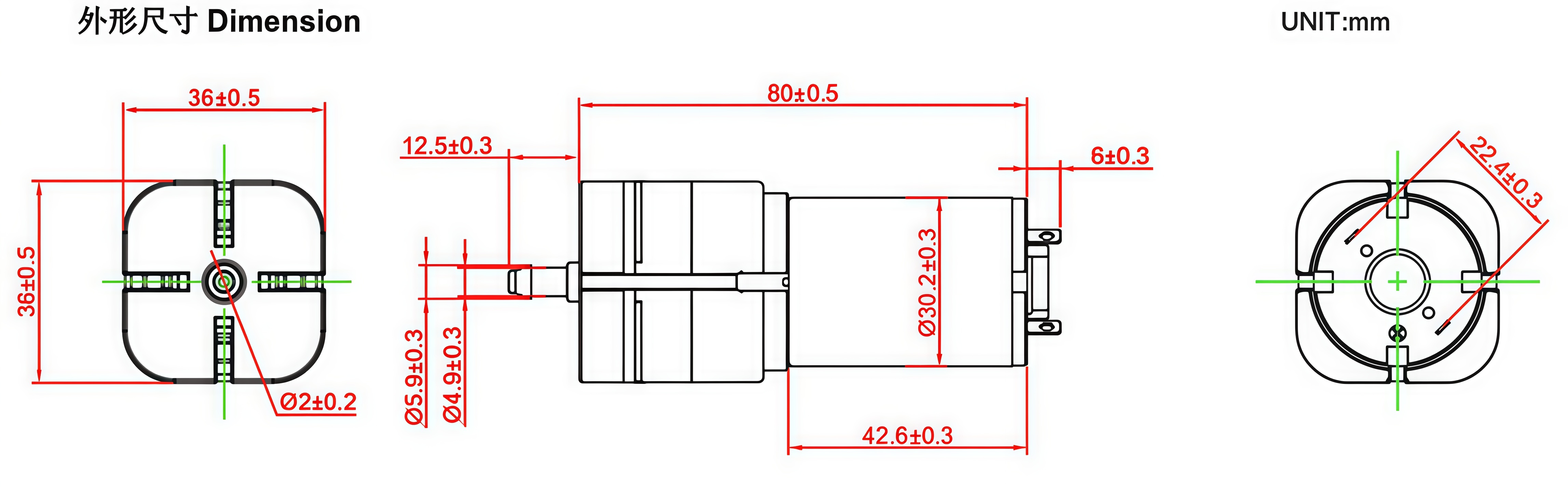

Specification Engineering Drawing

Application

Industry	Specific Application	Key Performance Requirement	How the micro air pump Solves It
Beauty & Aesthetics	Blackhead Remover / Pore Vacuum	Smooth, adjustable suction power	Stable vacuum flow for deep cleansing without skin damage.
Beauty & Aesthetics	Oxygen Facial Machine	Consistent pressurized air flow	High-pressure output ensures deep penetration of skincare serums.
Medical Care	Wrist Blood Pressure Monitor	Ultra-quiet & rapid inflation	Low noise (<55dB) design ensures comfort during home diagnostics.
Medical Care	Compression Therapy (DVT)	Long-term reliability & stability	Industrial-grade motor supports extended operation cycles.
Personal Care	Eye & Neck Massagers	Gentle, rhythmic pneumatic pressure	Compact size fits handheld designs while providing soothing pulses.
Smart Home	Portable Scent Diffusers	Efficient atomization	Constant airflow ensures even distribution of essential oils.

Tea table

Vacuum packing machine

Water dispenser

Foam hand sanitizer

Electric decanter

dishwasher

Images for micro gear pump---100% live-action shooting, Quality Guarantee

We supply more than just product, we engineer solutions optimised to suit your application requirements.

Compare, select, buy your pump

Previous: Corrosion-Resistant 370 Micro Water Pump (DC 6V/12V) – For Chemical & Laboratory Applications

Next:

Q1: What are the main applications of this 6V mini air pump?

Answer: This 6V micro air pump is specifically designed for portable devices that require stable air pressure. It is widely used in beauty equipment (like blackhead removers and oxygen facial machines), medical devices (such as portable blood pressure monitors), and electronic massagers. Its compact size makes it ideal for handheld products.

Q2: Is this 6 volt micro pump quiet enough for beauty devices?

Answer: Yes, noise control is a core feature of the DQB030-C series. Our 6 volt mini pump operates at a low noise level (typically below 50dB), ensuring a comfortable user experience for facial treatments or medical monitoring in quiet environments.

Q3: What is the expected service life of this mini air motor?

Answer: Quality is our priority. This mini air motor is built with high-quality carbon brushes and wear-resistant materials. Under standard testing conditions, it can achieve a long service life of over 50,000 to 100,000 cycles, providing long-term reliability for your products.

Q4: Do you support OEM or customization for different pressure requirements?

Answer: Absolutely. As a professional manufacturer, Pinmotor offers full OEM and ODM services. We can customize the voltage (3V, 6V, 12V), air flow rate, and maximum pressure to match your specific technical requirements.

Q5: How can I get a sample or a wholesale quote for this 6V pump?

Answer: We provide samples for performance testing to professional buyers. You can click the “Inquiry“ button or contact our sales team directly. We offer competitive wholesale prices and fast shipping for bulk orders worldwide.

6 volt mini air pump
