3042 DC Micro Water Pump for Condensation Fan & Coffee Machine
Customized Service
To provide customers with quality products and satisfactory service

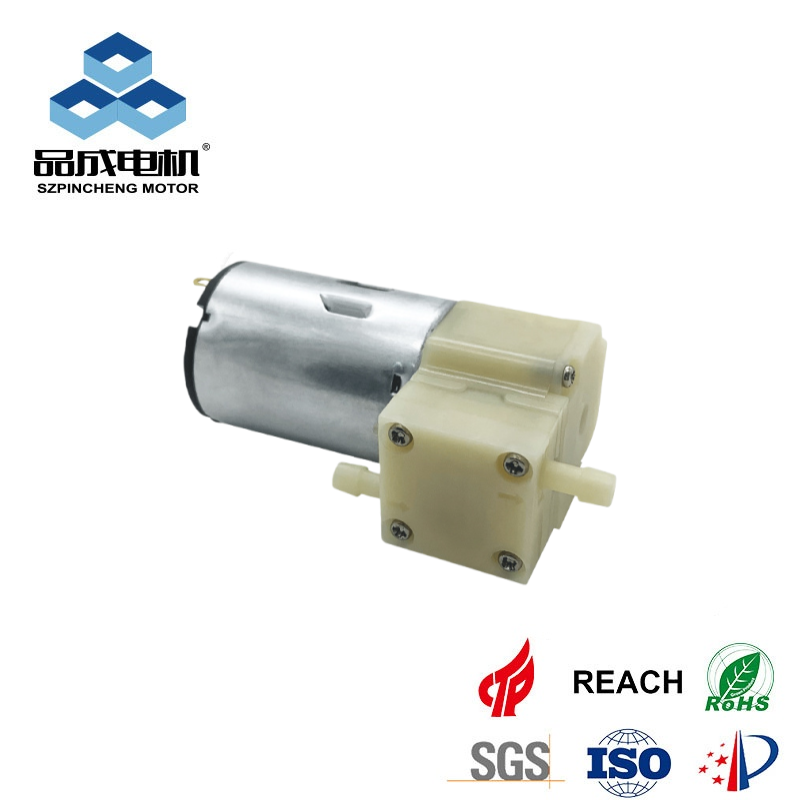

PYP3042-WP-2 micro water pump
The PYP3042-WP-2 micro water pump delivers high-pressure DC water transfer for condensation spray fans and capsule coffee machines. Featuring compact design, SGS/ISO/REACH/RoHS certifications, and reliable performance. Ideal for OEM appliance integration requiring efficient liquid handling.
Product Information
|
PYP3042-WP-2 Water Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC 3.7V | DC 6V | DC 9V | DC 12V | DC 24V |
| Rate Current | ≤973mA | ≤600mA | ≤400mA | ≤300mA | ≤150mA |
| Power | 3.6w | 3.6w | 3.6w | 3.6w |
3.6w |
| Air Tap O.D | φ 5.0mm | ||||
| Water Flow | 200-500 mL/min/OBar | ||||
| Water Pressure | 220-290PSL(1500-2000KPa) | ||||
| Noise Level | ≤55db (30cm away) | ||||
| Life Test | ≥100,000Times (ON 20 seconds, OFF 40 seconds) | ||||
| Pump Head | 3-5M | ||||
| Suction Head | 1.5-3M | ||||
| Net Weight | 125g | ||||

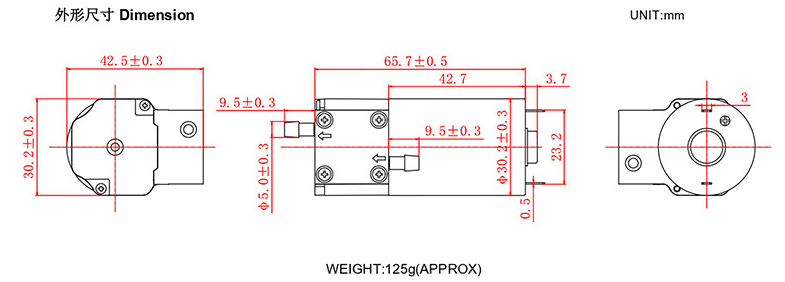

Specification Engineering Drawing
Application
DC water pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

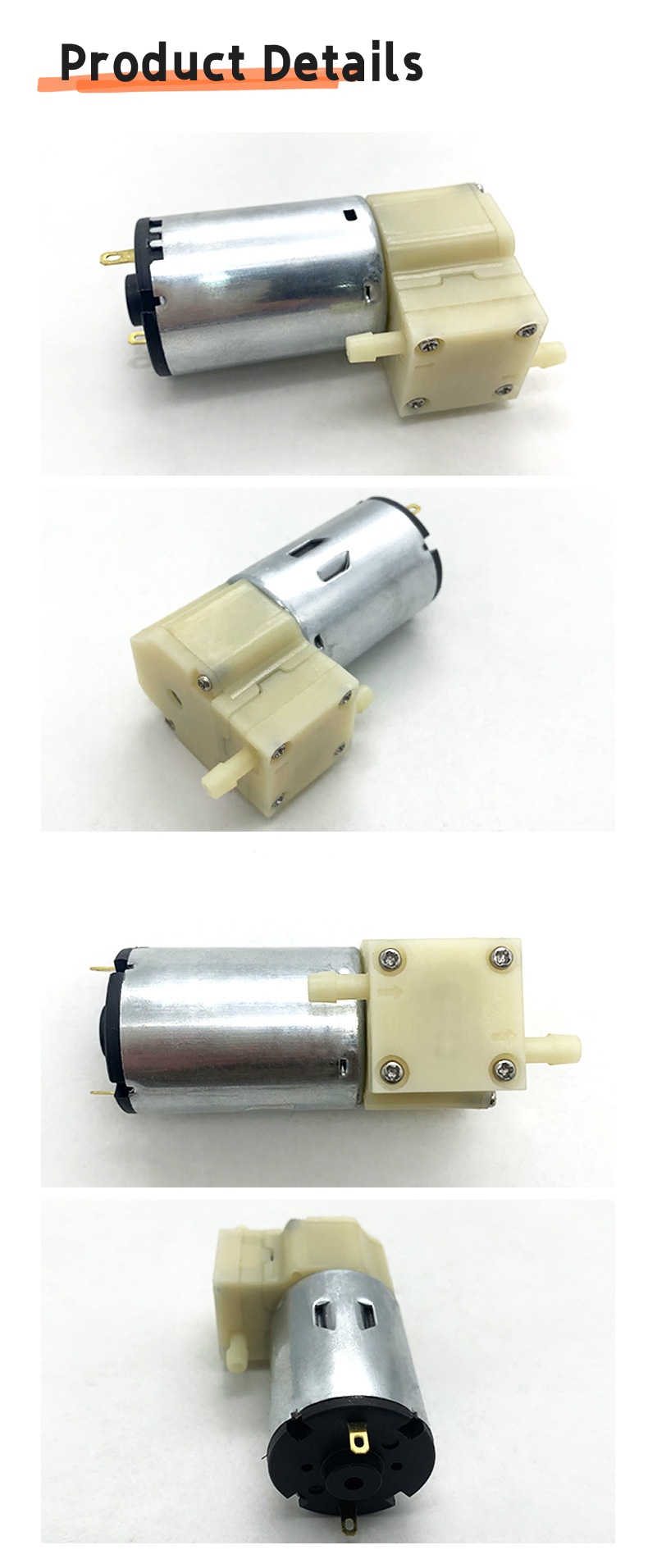

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
