3-Way DC 12V/24V NO Mini Solenoid Air Exhaust Valve

Short Description:

If you are looking for a reliable air-release solution for your wellness or medical devices, our three-way solenoid valve from Pinmotor is the perfect choice. As a trusted supplier of miniature air valves, we offer high-performance exhaust valves designed for long-lasting durability and rapid deflation. This normally opened solenoid valve is engineered to enhance the user experience in foot massagers, massage chairs, and portable beauty instruments.

Product Type: Three-Way Solenoid Valve

Maximum Pressure: 40KPa (300mmHg)

Exhaust Speed: Less than 2 seconds (tested from 300 to 15 mmHg in a 500cc tank)

Airtightness (Leakage): Less than 3mmHg/min (under 300 mmHg in a 500cc tank)

Operating Humidity: 30% to 85%RH

PDF Send email to us

Product Detail

Video

FAQ

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

XL Micro 3-way solenoid valve

The XL micro three-way solenoid valves play a crucial role in precision pneumatic control across multiple industries. They are used in foot massagers and massage chairs, as well as in medical monitoring equipment and portable beauty devices. Their compact design and superior airtightness ensure accurate pressure relief and stable operation.

Rapid Exhaust Response

Superior Industrial Longevity

Precision Airtightness

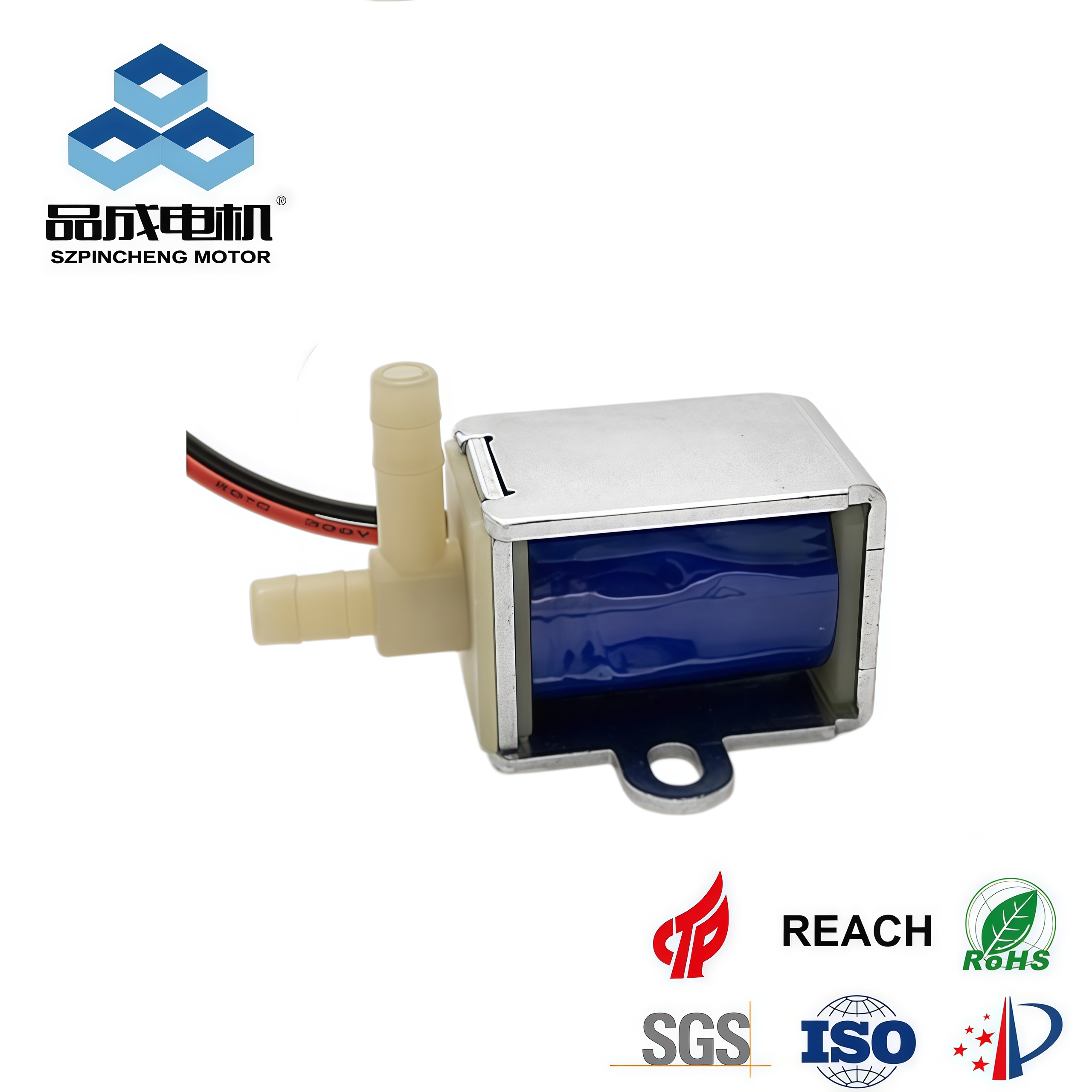

DC air exhaust valve with UL1007 26AWG lead wire and 2.54 buckled terminal

(※ Click this button to inquiry more)

Technical Specifications

XL 3-Way Mini Solenoid Air Exhaust Valve
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 6V	DC 12V	DC 24V
Rate Current	300±10%mA	200±10%mA	140±10%mA
DC Resistance	20±10%Ω	60±10%Ω	170±10%Ω
Power	1.8 W	2.4 W	3.36 W
Air Tap O.D	φ 5.5mm
MaximumPressure	40KPa(300mmHg)
Medium	Air
Exhaust Speed	< 2s (from 300 to 15 mmHg in a 500cc tank)
Life Test	≥200,000 Times (ON 5秒，OFF 5秒)
Leakage	<3mmHg/min ( under 300 mmHg in a 500cc tank )
OperationTemperature	0 ~50°C 30%to 85%RH
Weight	48g

Specification Engineering Drawing

Technical drawing and dimensions of XL ultra-small 3-way solenoid air valve

Engineering Integration Notes

1. Electrical Integration & Power Management

Voltage Selection: This series offers three distinct rated voltage options: DC 6V, DC 12V, and DC 24V. Engineers should select the model that matches their system's power rail to ensure optimal performance.
Power Consumption: Depending on the voltage, the power draw ranges from 1.8 W (at 6V) to 3.36 W (at 24V). Ensure the driving circuit (e.g., MOSFET or Relay) can handle the corresponding rated current, which ranges from 140mA to 300mA.
Wiring Interface: The valve comes pre-equipped with UL1007 26AWG lead wires ($200\pm10$ mm length) and a 2.54mm buckled terminal for secure, plug-and-play connection to PCBs.

2. Pneumatic Performance & Circuit Design

Rapid Exhaust Capability: Engineered for speed, it can exhaust a 500cc tank from 300mmHg to 15mmHg in less than 2 seconds. This is critical for simulating realistic massage rhythms in foot massagers.
Pressure & Sealing: The maximum rated pressure is 40KPa (300mmHg). The unit maintains high-precision sealing with a leakage rate of less than 3mmHg/min.

DC 12V 3-way air solenoid exhaust valve for foot massagers and beauty instruments

Product Applications

Application Scenario	Key Benefit for the Design	Recommended Power Source
Handheld Beauty Devices	Compact and lightweight for slim designs and comfortable handling.	Lithium-ion Battery.
Blood Pressure Monitors	Failsafe "Normally Open" design ensures automatic deflation during power loss.	Regulated DC Power.
Smart Pet Feeders	Superior sealing keeps containers airtight to maintain food freshness.	Battery Pack or Adapter.
Rhythmic Massagers	High durability built for frequent pulse movements.	DC Power Supply.
Aromatherapy Diffusers	Fast exhaust speed ensures stable air pressure for a consistent mist.	Regulated DC Power.
