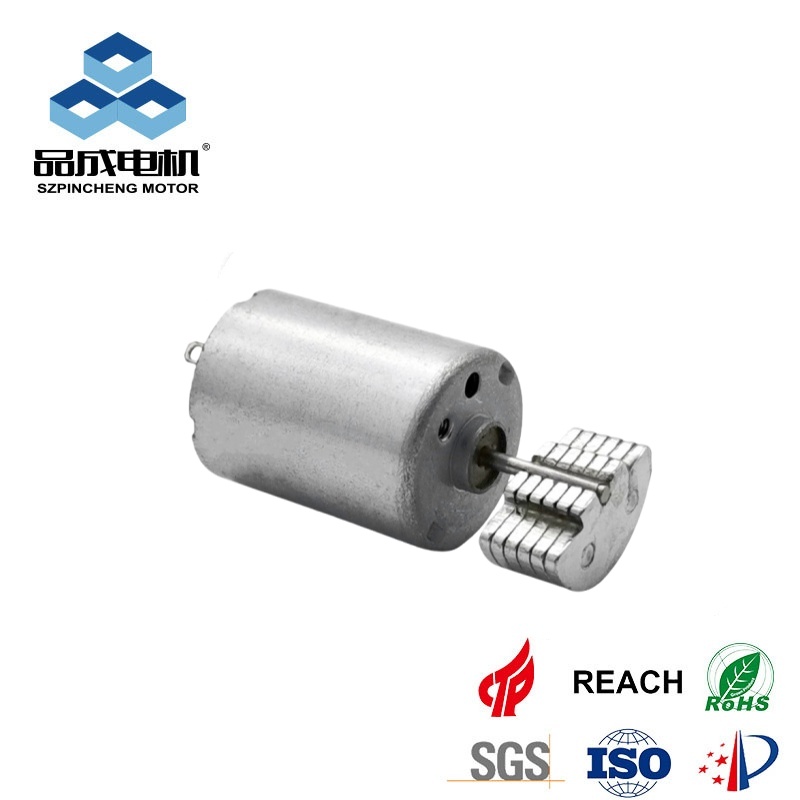

130 Brushed DC Micro Motor for USB Fan & Beauty Device

Short Description:

130 brushed DC micro motor provides reliable power for USB fans, beauty tools, nail polishers, and personal massagers. This compact vibration motor ensures smooth operation with customizable speed settings. Ideal for consumer electronics and personal care devices requiring precise motion control. Supports OEM customization for specific voltage and shaft requirements. Features durable construction and long service life. Perfect for integration into portable appliances and handheld beauty instruments.

Product Name: 130 Brushed DC Micro Motor

Motor Type: Brushed DC Motor

Operating Voltage: Customizable Low DC Voltage (e.g., 3-5V)

Application: USB Fan, Beauty Device, Nail Polisher, Personal Massager

Features: Compact Size, Vibration Function, Speed Control

Customization: OEM/ODM Supported (Voltage/Speed/Shaft)

Performance:: Smooth Operation, Stable Torque

Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PC-RF-130CH Micro DC motor

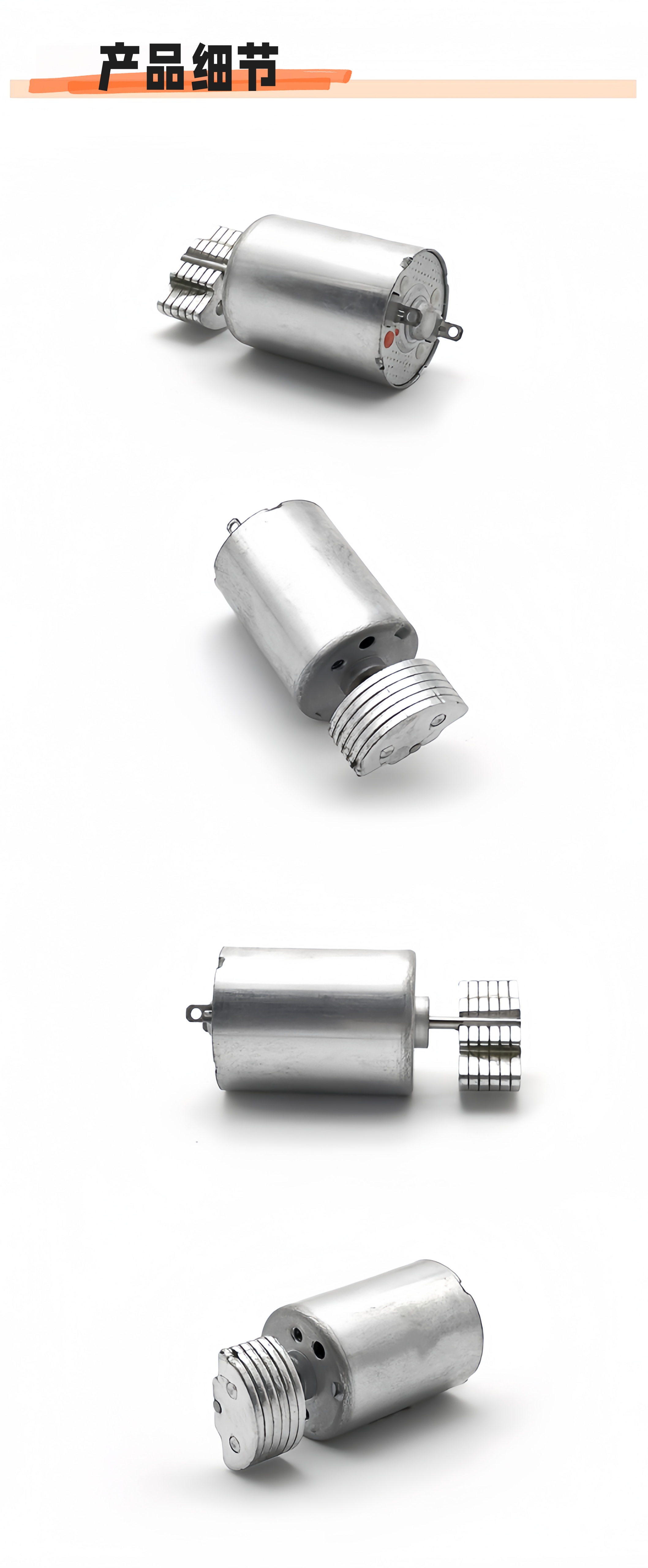

The RF-130CH DC micro motor delivers versatile power for USB fans, beauty tools, and personal massagers with precise speed control. Featuring compact brushed design, customizable voltage (3-5V), and smooth vibration output. Ideal for OEM portable appliances requiring efficient, quiet operation.

DC Motor for Beauty Device

Professional research

Long Lifetime

(※ Click this button to inquiry more)

Product Information

Model	Voltage		No Load		At Maximum Efficiency					Stall
Model	Operating Tange	Nominal	Speed (r/min)	Current (A)	Speed (r/min)	Current (A)	Torque		Output (W)	Torque		Current (A)
PC-RF-130CHV-16155	3.0-6.0	4.5V	9400	0.045	7990	0.257	0.750	7.65	0.627	5.0	51.0	1.45
PC-RF-130CHV-12240	4.0-7.0	6.0V	8050	0.026	6762	0.132	0.612	6.24	0.433	3.82	39.0	0.69
PC-RF-130CHV-12250	9.0-12.0	11.1V	14100	0.035	11985	0.210	0.96	9.8	1.199	6.37	65.0	1.20
