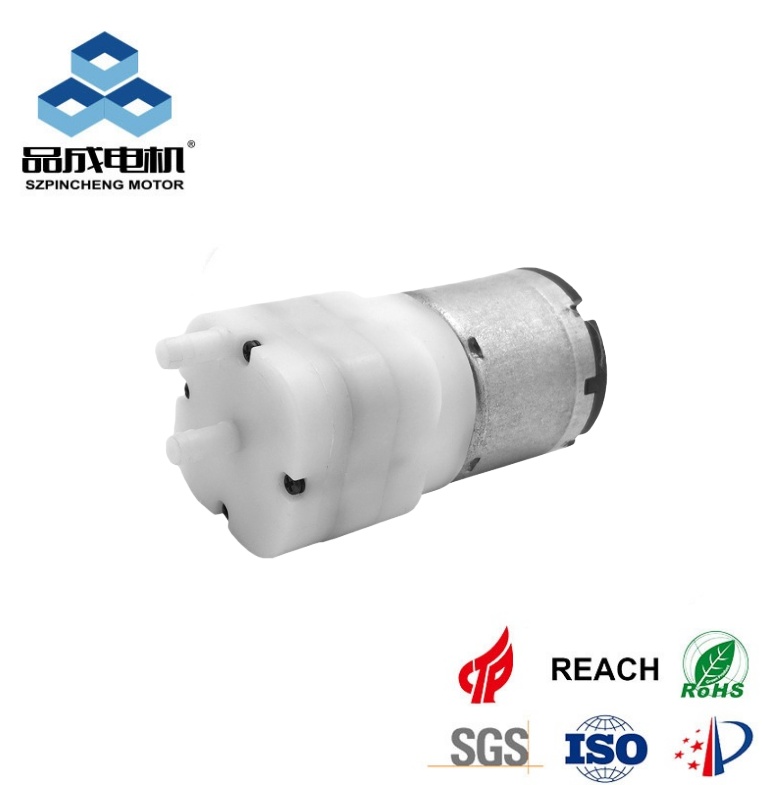

PYP528-XA Micro Vacuum Pump 3.7V-24V for Beauty & Medical Devices

Short Description:

PYP528-XA micro vacuum pump supports wide voltage range 3.7V-24V DC for medical devices, beauty hydrators, massagers, and adult products. Delivers powerful performance with ≤-60Kpa vacuum and ≥100Kpa pressure. Features 5mm nozzle, ≤65dB noise, and 500h lifespan. Certified components ensure reliability for oxygen concentrators, foot spa, and packaging machines. Ideal for OEM applications requiring stable airflow. Compact 98g design enables easy integration into portable equipment.

Product Name: PYP528-XA Micro Vacuum Pump

Operating Voltage: Wide Range 3.7V-24V DC

Pump Type: Dual-Function Vacuum/Pressure Pump

Performance: ≤-60Kpa Vacuum / ≥100Kpa Pressure

Flow Rate: 2.5-8.0 LPM

Noise Level: ≤65 dB (30cm distance)

Lifespan: ≥500 hours continuous operation

Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

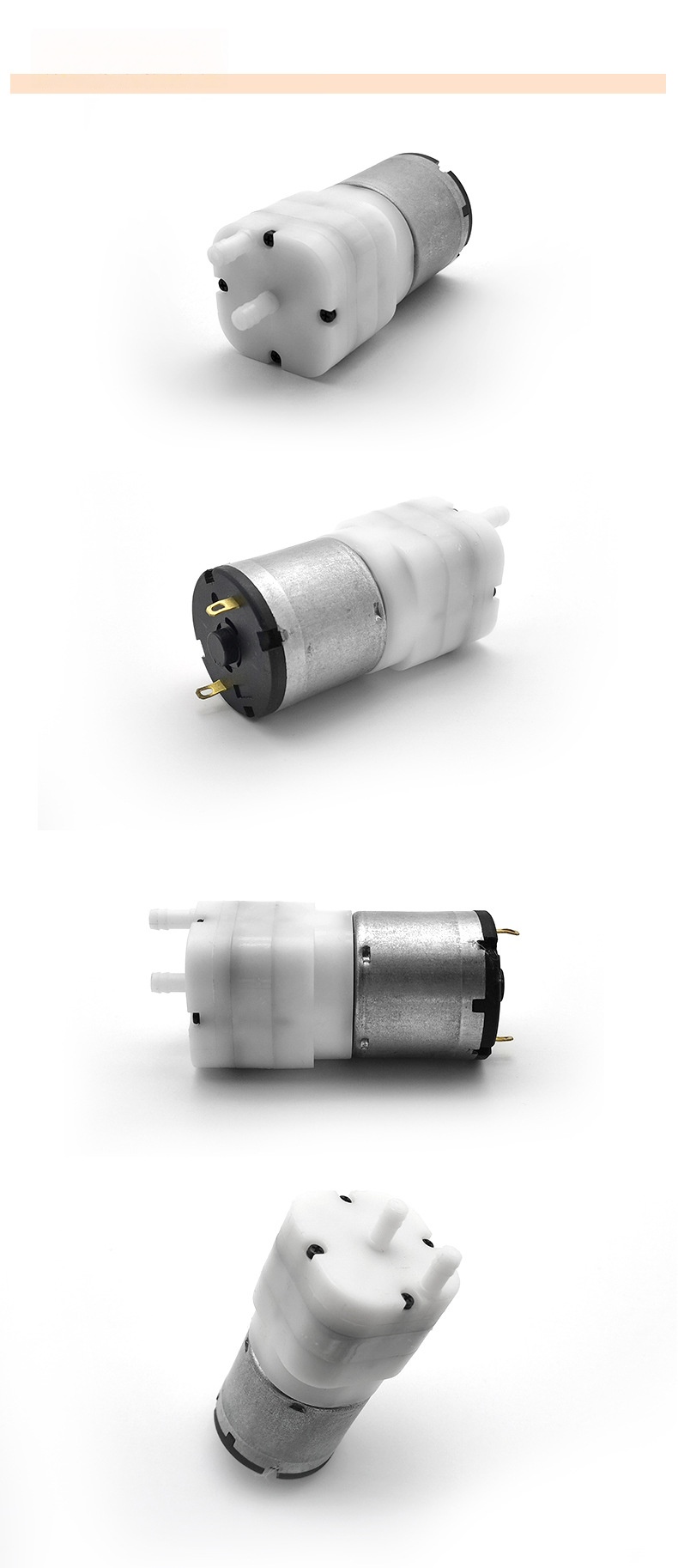

PYP528-XA Micro Vacuum Pump

The PYP528-XA micro vacuum pump delivers versatile 3.7V-24V DC operation with dual vacuum (≤-60Kpa) and pressure (≥100Kpa) functions. Features 5mm nozzle, 2.5-8LPM flow, ≤65dB noise, and 500h lifespan. Ideal for medical, beauty, and massage devices requiring reliable airflow.

Vacuum Pump for Medical Devices

Professional research

Long Lifetime

(※ Click this button to inquiry more)

Product Information

PYP528-XA Micro Vacuum Pump
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3.7V	DC 4.5V	DC 6V	DC 12V	DC 24V
Rate Current	≤1600mA	≤1300mA	≤1000mA	≤500mA	≤250mA
Power	6.0w	6.0w	6.0w	6.0w	6.0w
Air Tap O.D	φ 5.0mm
Vacuum flow rate Flow	2.5-8.0LPM
Maximum Vacuum Pressure	≤-60 kpa (-450mmHg)
Noise Level	≤65db (30cm away)
Life Test	≥500 Hrs (Continue)
Net Weight	98g
