In modern fluid control, devices must be more than just "tools"—they need to be "intelligent systems." Whether in medical labs or industrial plants, the old way of using simple pumps is fading. Today, the integration of smart sensors with micro pumps is the new standard for real-time pressure monitoring.

At PinMotor, we have seen how this technology prevents system failures and improves accuracy. This guide explains why this integration is essential and how to implement it effectively.

Why Real-time Pressure Monitoring is Essential

Why should engineers care about monitoring pressure as it happens? In high-stakes environments, even a 5% change in pressure can ruin a process.

Improving System Safety

Safety is the top priority. If a tube becomes blocked (an occlusion) or a valve fails, pressure builds up instantly. This can burst seals or damage sensitive components. A smart sensor detects these spikes in less than 10 milliseconds, allowing the system to shut down before damage occurs.

Achieving Precision Control

In laboratory dosing, external factors like liquid viscosity (thickness) or temperature can change the flow rate. By using a sensor, the system creates a "closed-loop." If the sensor detects a drop in pressure, it tells the pump to speed up to maintain a steady flow.

---

Key Components of an Integrated Smart System

To build a smart fluidic system, you need three main parts working together:

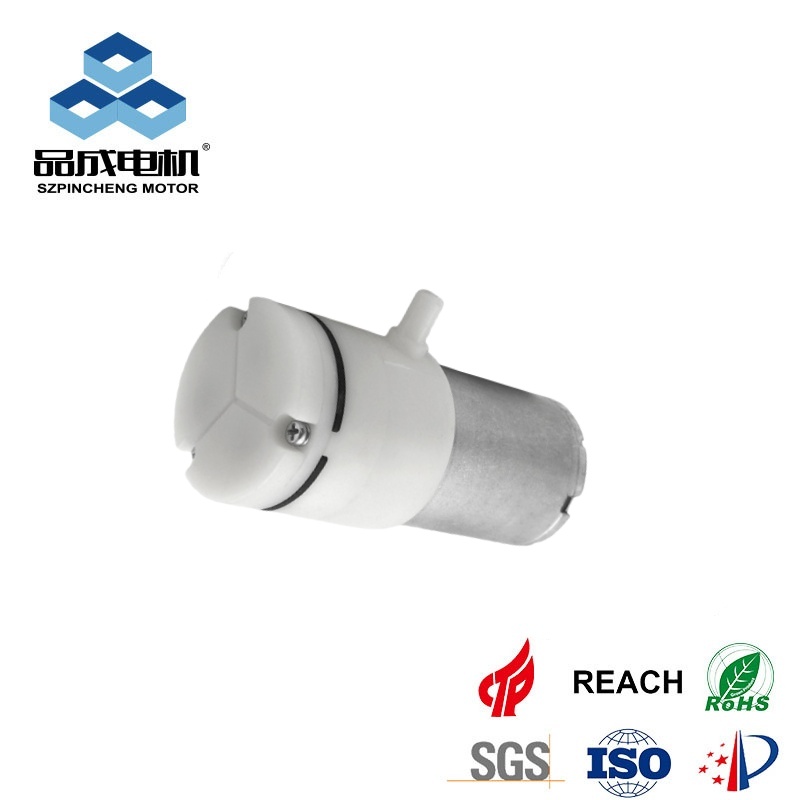

1、The Micro Pump (The Heart): Usually a Brushless DC (BLDC) pump, which is highly responsive to electronic signals.

2、The Smart Sensor (The Eyes): A MEMS-based pressure sensor that converts physical pressure into a digital signal.

3、The Microcontroller / MCU (The Brain): The chip that reads the sensor data and adjusts the pump speed using Pulse Width Modulation (PWM).



Feature	Traditional Micro Pump	PinMotor Integrated System
Response Speed	Manual/Reactive	Real-time ( <15ms)
Accuracy	+/- 10%	+/- 1.5%
Safety	External relief valves	Auto-stop firmware



Overcoming Technical Challenges

Integrating these parts is not always easy. Here are two common challenges we solve at PinMotor:

Managing Signal Interference (Noise)

Micro pumps use motors that create electrical "noise." This noise can confuse a sensitive pressure sensor.

      1、The Solution: We use four-layer PCB designs and shielded cables to ensure the sensor signal remains clean and accurate, even when the motor is running at maximum speed.

Space Constraints

In portable medical devices, space is limited.

      2、The Solution: We utilize Compact Design Philosophy. By integrating the sensor and the control board directly into the pump housing, we reduce the total footprint by up to 30%.

---

The PinMotor Advantage: Smart-Ready Solutions

PinMotor is more than a manufacturer; we are an engineering partner. We help OEM clients skip the difficult part of circuit design and move straight to production.

• Pre-designed Control Boards: Our pumps come with interfaces ready for smart sensors.

• Custom Firmware: Our team writes the code that tells the pump exactly how to react to your specific pressure needs.

• Proven Experience: From portable dialysis machines to high-precision ink-jet printers, we have successfully integrated these systems for global clients.

Conclusion

The integration of smart sensors is no longer a luxury—it is a necessity for future-proofing your product. Real-time pressure monitoring offers the safety and precision that modern users demand.

Ready to upgrade your fluidic system? [Contact PinMotor’s Engineering Team Today] to download our latest White Paper on Smart Fluidic Design or to request a custom prototype.
