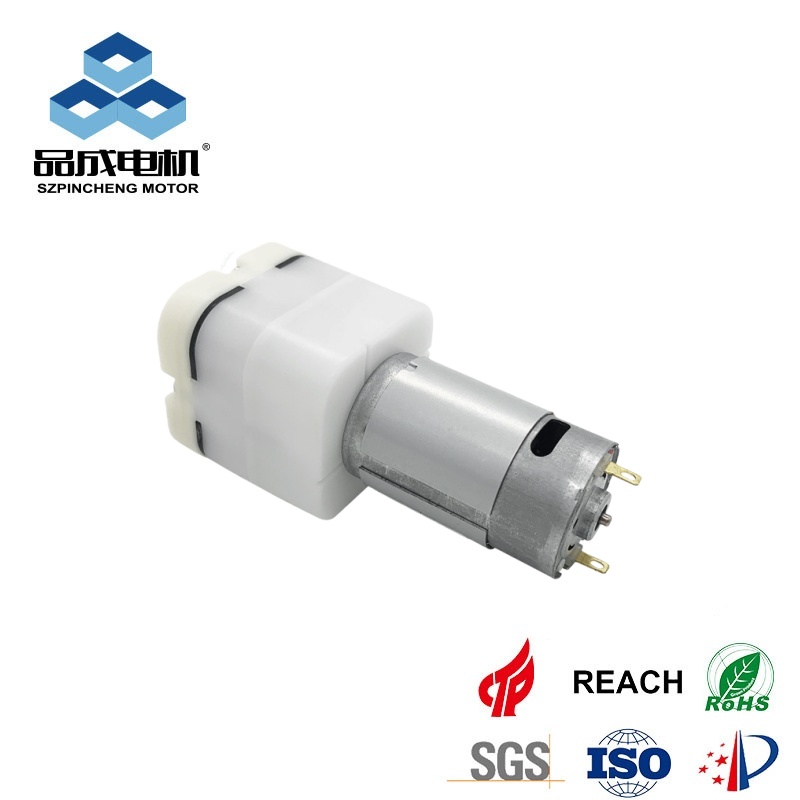

In the high-stakes environments of In-Vitro Diagnostics (IVD) and precision chemical dosing, a micro diaphragm pump is often the single point of failure. While these pumps are celebrated for their seal-less design and self-priming capabilities, mechanical fatigue and chemical stressors are inevitable. Transitioning from reactive repair to Predictive Maintenance (PdM) is essential for minimizing system downtime and total cost of ownership (TCO).

1. Elastomer Fatigue and Chemical Incompatibility

The diaphragm is the "beating heart" of the pump, subjected to millions of flex cycles. Failure typically manifests as a loss of vacuum or fluid leakage into the motor housing.

• The Root Cause: Beyond mechanical wear, chemical swelling occurs when the elastomer (e.g., EPDM, FKM) reacts with the media, leading to micro-cracks or "set" deformation.

• Prevention Strategy: Utilize PTFE-laminated diaphragms for aggressive reagents. Engineers should calculate the Flex Life Expectancy based on the specific stroke length and frequency of their application.

2. Check Valve Fouling and "Stiction"

Check valves (umbrella or duckbill type) ensure unidirectional flow. When these fail, the pump experiences backflow or zero-flow conditions.

• The Root Cause: Crystallization of reagents or particulate ingestion creates "stiction" (static friction), preventing the valve from seating correctly.

• Prevention Strategy: Implement a 10–50 micron upstream filter. For clinical chemistry applications, a periodic "Primacy Flush" with deionized water prevents salt crystal buildup during idle periods.

3. Excessive Backpressure and Pneumatic Overload

Operating a pump against a blocked discharge line doesn't just stop flow; it creates a pressure spike that can rupture the internal structure.

• The Root Cause: Downstream obstructions or undersized tubing diameters increase the load on the motor, leading to Thermal Overload.

• Prevention Strategy: Integrate a Pressure Relief Valve (PRV) or a pressure sensor feedback loop. Ensure that the system's "System Curve" aligns with the pump's "Performance Curve" to avoid operating near the shut-off head.

4. Brushless DC (BLDC) Controller & Bearing Degradation

Modern high-end pumps, such as those from PinMotor, utilize BLDC motors for longevity. However, the electronics and bearings remain vulnerable.

• The Root Cause: EMI (Electromagnetic Interference) or voltage ripples can damage the driver circuitry, while axial loads exceeding the bearing's L10 life lead to audible "whining" and eventual seizure.

• Prevention Strategy: Use regulated power supplies with transient voltage suppression (TVS). For 24/7 industrial cycles, specify pumps with double-shielded ball bearings to prevent dust ingress.

5. Ambient Temperature and Heat Dissipation Issues

Micro pumps are often tucked away in cramped, unventilated instrument enclosures.

• The Root Cause: High ambient temperatures accelerate the aging of both the elastomer and the motor insulation, leading to a "Derating" of the pump’s performance.

• Prevention Strategy: Optimize the Enclosure Airflow. Using aluminum-housed pumps (like the PinMotor Pro Series) can act as a natural heat sink, effectively extending the MTBF by up to 30%.

---



Troubleshooting Matrix for Rapid Diagnostics



Symptom	Probable Failure	Immediate Action
Reduced Flow Rate	Partial Valve Fouling	Flush system with compatible solvent
Excessive Noise/Vibration	Bearing Wear or Cavitation	Check inlet restriction and mounting
Pump Runs, No Flow	Diaphragm Rupture	Inspect for fluid in the motor housing
Intermittent Starting	Controller/Driver Fault	Verify input voltage and PWM signal



The PinMotor Advantage: Reliability by Design

As a premier manufacturer in Shenzhen, PinMotor addresses these failure modes at the molecular level. Our pumps feature proprietary high-density EPDM and long-life BLDC motors, validated through 10,000-hour endurance tests. By partnering with global Top 50 medical device firms, we have refined our supply chain to provide 100% traceable components.

Would you like a customized "Maintenance Interval Checklist" tailored to your specific fluid media and duty cycle?
