Mini Diaphragm Vacuum Pump for Beauty Tools & Medical Devices – 58KPA

Short Description:

Mini diaphragm vacuum pump delivers ≤-58KPA vacuum pressure for blackhead removers, beauty devices, and adult products. Low noise (<65dB), lightweight (28g), and multi-voltage support (DC 3V-6V). Customizable OEM design. Ideal for facial cleaners, medical suction, and massage tools. Reliable continuous operation (100+ hours lifespan)

Model Number: PYP130-XH

Rated Voltage: 3-6V

Maximum Vacuum Pressure: ≤ -58 kPa (-420 mmHg) (Strong suction capability)

Flow Rate: 0.5 - 1.5 LPM (Liters Per Minute)

Port Size: Ø3.5mm (Outer diameter of the air outlet)

Pump Type: Diaphragm (Oil-free, quiet, and reliable operation)

Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

PYP130-XH

Mini Diaphragm Vacuum Pump

PYP130 - XH Mini diaphragm vacuum pump. ≤-58KPA suction, 0.5-1.5LPM flow, <65dB noise. For beauty devices, blackhead removers, medical suction. 28g lightweight. DC 3-6V.

Customizable OEM design

Professional research

Long Lifetime

(※ Click this button to inquiry more)

Product Information

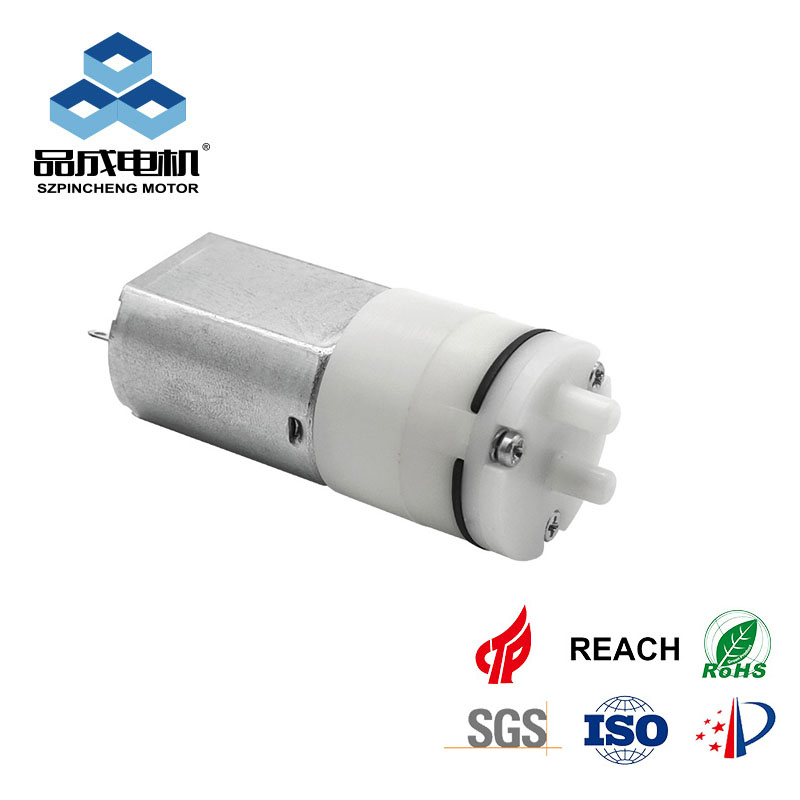

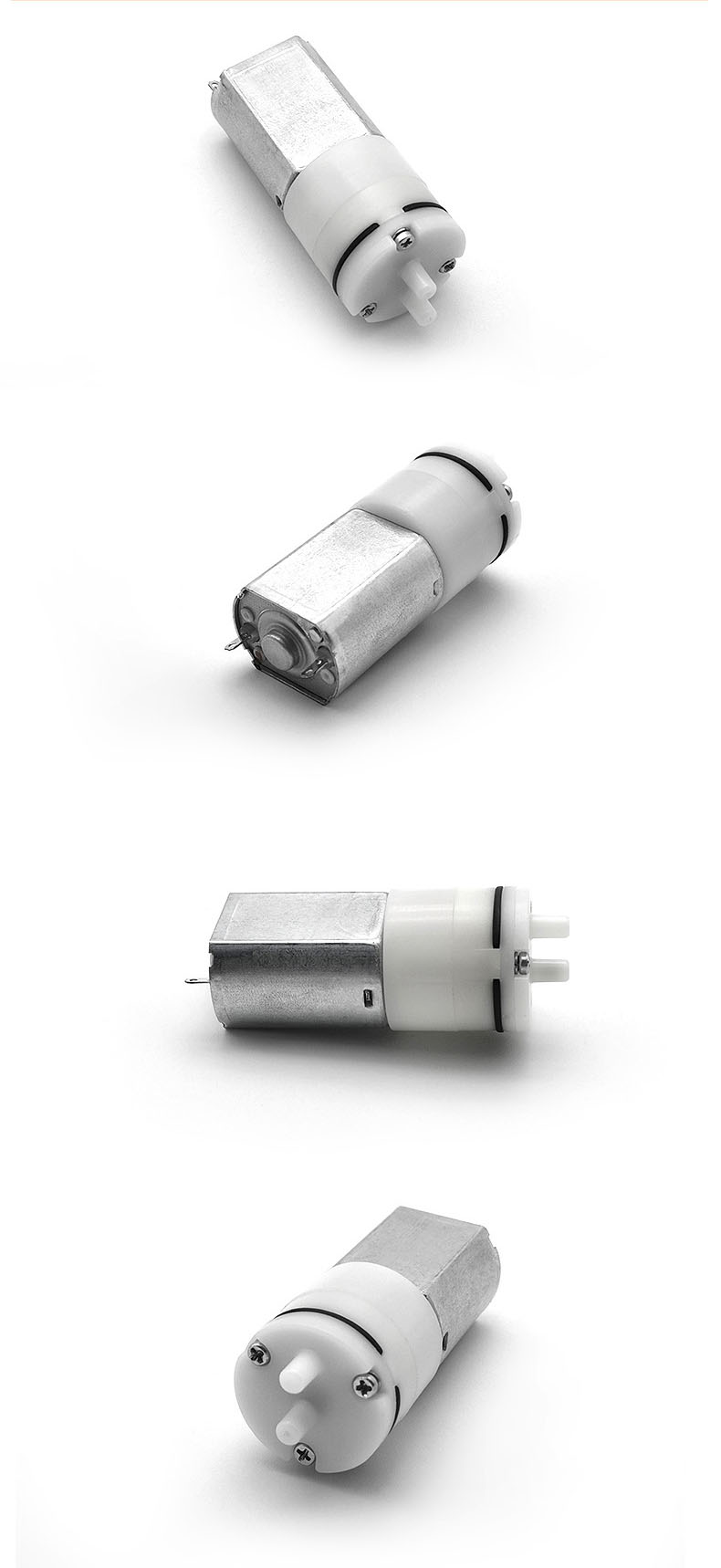

PYP130-XH(φ27mm）Mini Diaphragm Air Pump
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3V	DC 3.7V	DC 4.5V	DC 6V
Rate Current	≤550mA	≤450mA	≤350mA	≤270mA
Power	1.66w	1.66w	1.6w	1.6w

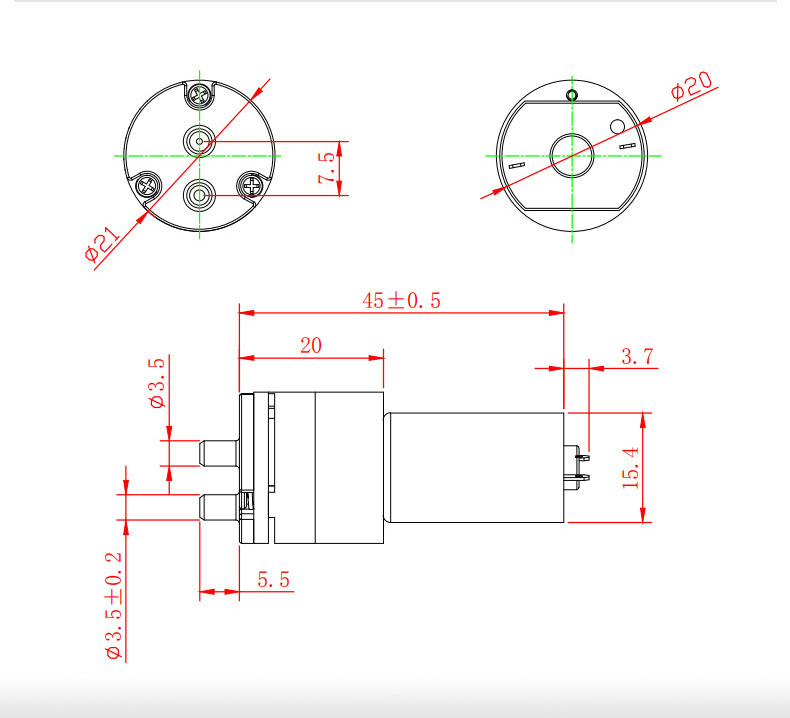

Air Tap O.D	φ 3.5mm
Air Flow	0.5-1.5 LPM
Maximum Vacuum Pressure	≤ -58 kPa (-420 mmHg)
Noise Level	≤60db (30cm away)
Life Test	≥100 Hrs (Continue)
Net Weight	28g
