528 Micro Vacuum Pump 3.7V-24V for Aromatherapy & Oxygen Device
Customized Service
To provide customers with quality products and satisfactory service

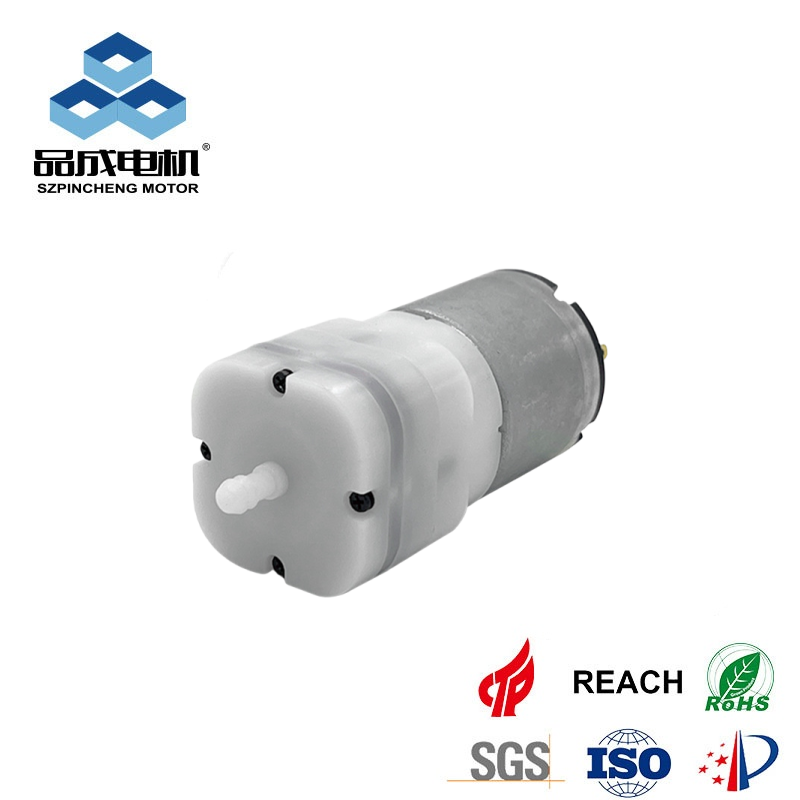

PYP528-XC Micro Vacuum Pump
The PYP528-XC micro vacuum pump operates on a wide 3.7V-24V DC range, making it ideal for aromatherapy machines, oxygen injectors, and massage devices. It delivers stable gas pressure with low noise and high efficiency, backed by SGS/REACH/ISO certifications. Compact and reliable for OEM wellness applications.
Product Information
|
PYP528-XC Micro Vacuum Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC 3.7V | DC 4.5V | DC 6V | DC 12V | DC 24V |
| Rate Current | ≤1600mA | ≤1300mA | ≤1000mA | ≤500mA | ≤250mA |
| Power | 6w | 6w | 6w | 6w | 6w |
| Air Tap O.D | φ 5.0mm | ||||
| Vacuum flow rate Flow | 2.5-8.0 LPM | ||||
| Maximum Vacuum Pressure | ≤-60 kpa (-412mmHg) | ||||
| Maximum positive pressure | ≥100 kpa (600mmHg) | ||||
| Noise Level | ≤65db (30cm away) | ||||
| Life Test | ≥500 Hrs (Continue) | ||||
| Net Weight | 98g | ||||

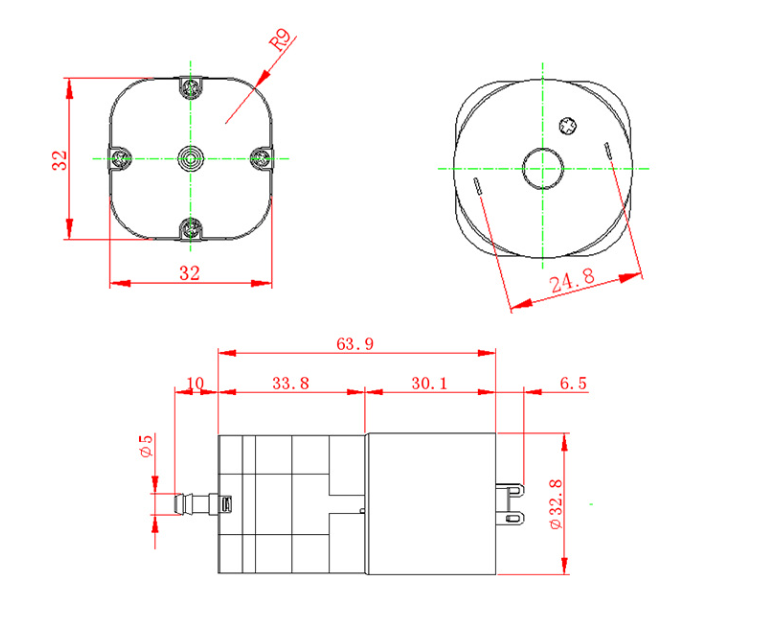

Specification Engineering Drawing
Application
Micro Vacuum Pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

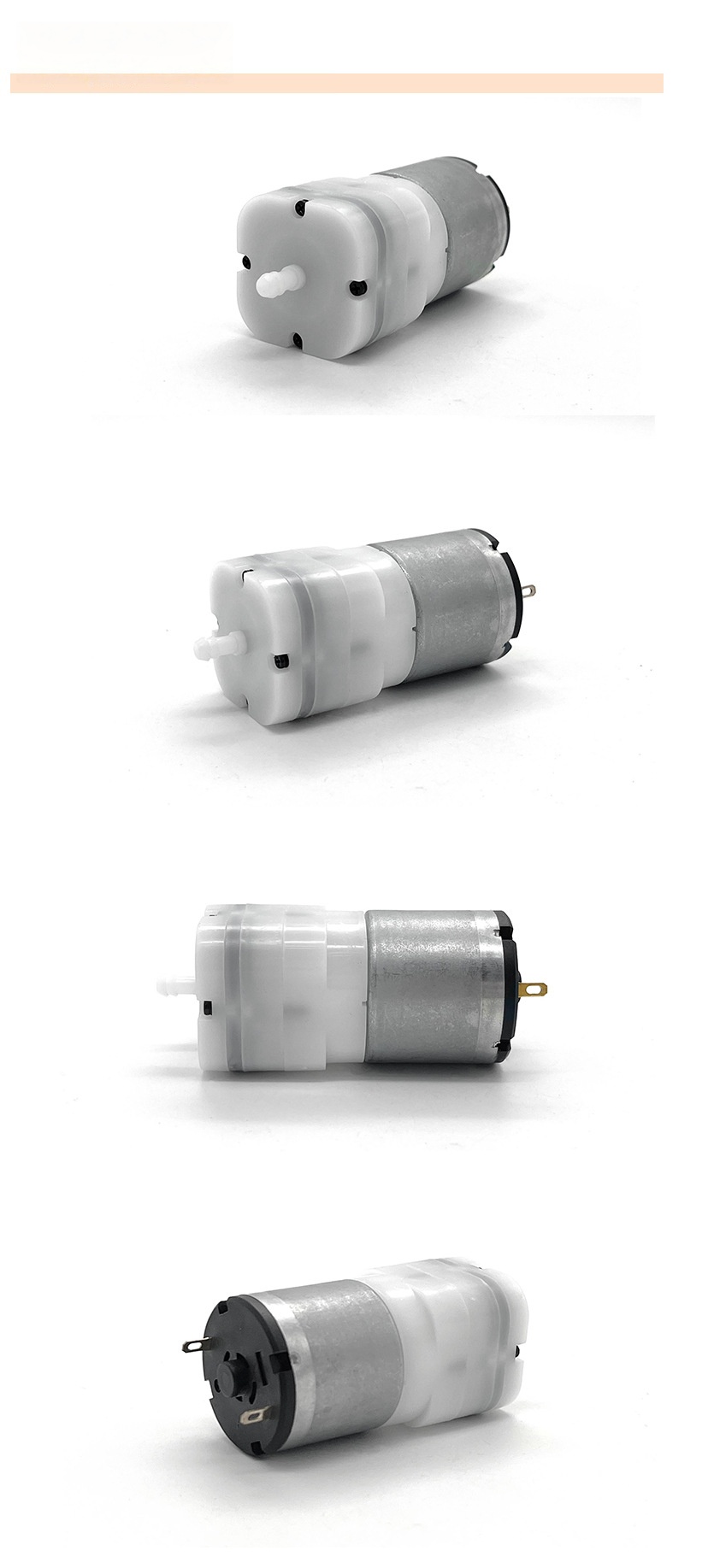

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
