5-Way Mini Parallel Solenoid Valve 24V

Short Description:

The 5-way miniature parallel solenoid valve integrates five independent micro valves onto a single shared manifold, eliminating the need for bulky external hoses.This compact design reduces the system’s footprint and leak risks while enabling precise, independent control of multiple air channels (such as wave-like inflation). It is an ideal pneumatic solution for space-constrained applications like medical devices and high-end massagers.

Rated Voltage: DC 3.7V / DC 5V / DC 6V / DC 12V / DC 24V

Overall Dimensions: Length: 94.5mm, Mounting hole distance: 70.6mm, Single valve width: 13mm

Operation Temperature: 0-50°C, 65%RH

Air Tap O.D.: Ø3.7mm (Tolerance: ±0.1mm)

Maximum Pressure: 350mmHg

PDF Send email to us

Product Detail

Video

FAQ

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

3-LXB Micro 5-way solenoid valve

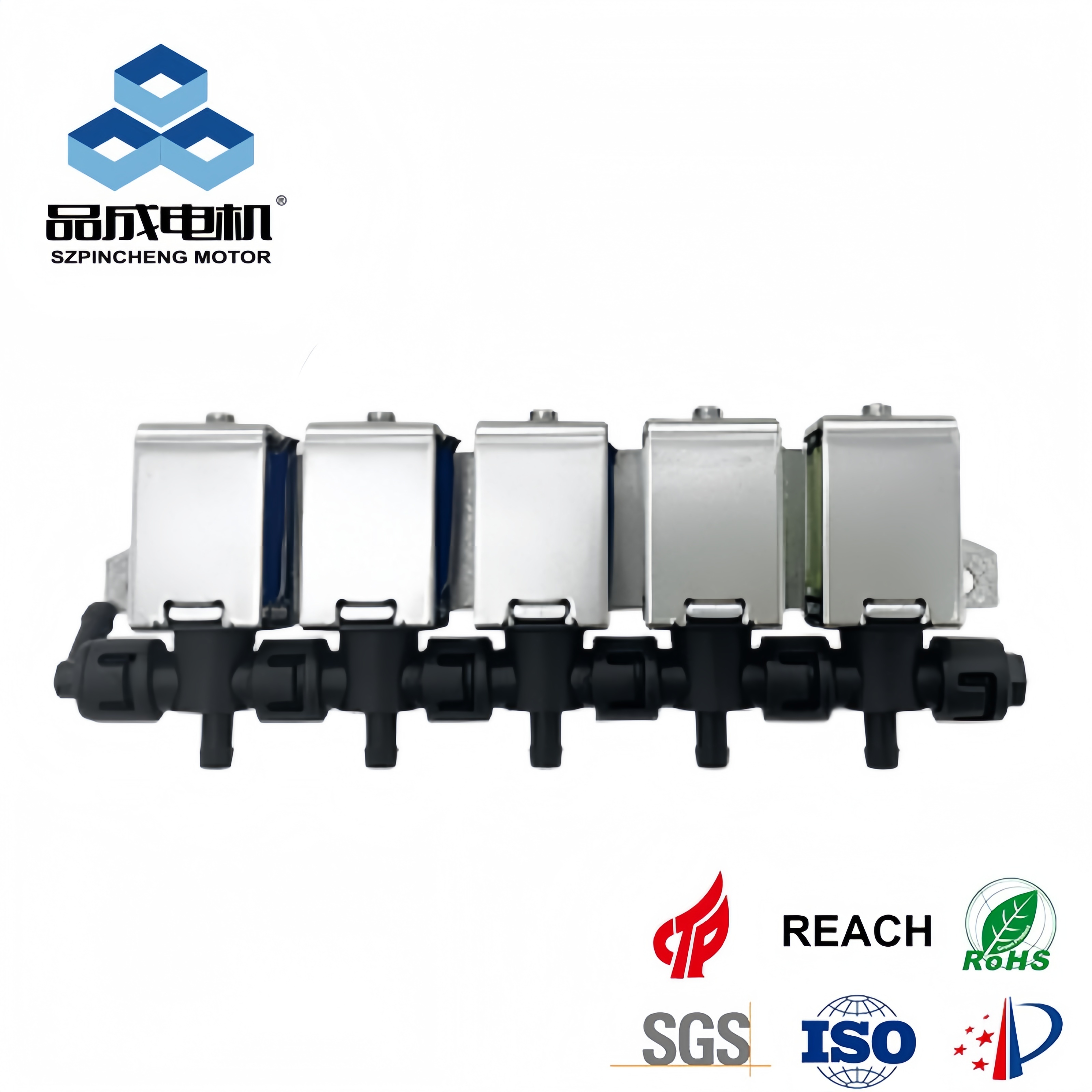

This 5-way integrated miniature parallel solenoid valve is designed for high-precision air control. It offers independent multi-channel management, reliable power options, excellent airtightness, and a compact industrial design. It is an ideal pneumatic solution for space-constrained applications, including high-end multi-airbag massage chairs, medical devices, rehabilitation equipment, and smart household appliances.

Integrated 5-Way Design

Superior Airtightness

Reliable Power Solutions

/images/household-appliances-air-valve-5-manifold.jpg

(※ Click this button to inquiry more)

Technical Specifications

5-way Micro solenoid valve
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC3.7V	DC5V	DC 6V	DC 12V	DC 24V
Rate Current	247±10%mA	178±10%mA	200±10%mA	104±10%mA	92±10%mA
DC Resistance	15±10%Ω	28±10%Ω	30±10%Ω	115± 10%Ω	260±10%Ω
Power	0.92W	0.89W	1.2W	1.25W	2.2W
Air Tap O.D	φ 3.7mm
MaximumPressure	350mmHg
Medium	Air
Exhaust Speed	< 6.0s (from 300mmHg to15mmHg @500cc tank）
Life Test	>150,000 times (ON2秒，OFF3秒)
Leakage	< 15mmHg/min(under 300mmHg in a500cc tank)

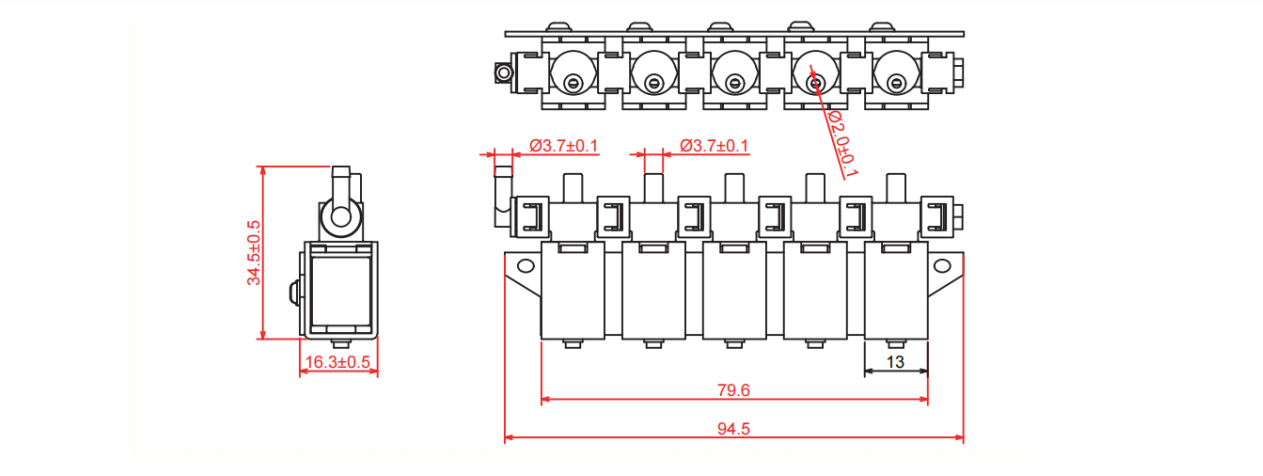

Specification Engineering Drawing

/images/small-parallel-solenoid-valve-dimensions-drawing.png

Engineering Integration Notes

Pneumatic System Integration: The 5-way parallel manifold design uses a single integrated base to replace messy external connectors and hoses. This significantly reduces the risk of potential air leaks.
Independent Multi-Channel Control: Each of the five air taps can be triggered independently. This allows for precise control over complex pneumatic logic, such as sequential inflation or alternating deflation (e.g., wave-motion compression).
Space-Optimized Layout: The ultra-compact design is specifically developed for devices with limited internal space. It greatly simplifies tubing and assembly for multi-airbag systems.
Wide Voltage Compatibility: Available in various voltage versions—from low-voltage battery power to high-voltage industrial supplies—ensuring flexible integration into both portable and stationary hardware.
Industrial Reliability Standards: Optimized for high-frequency operation, the valve maintains stable sealing and rapid response times even in demanding environments like medical rehabilitation and high-end massage equipment.

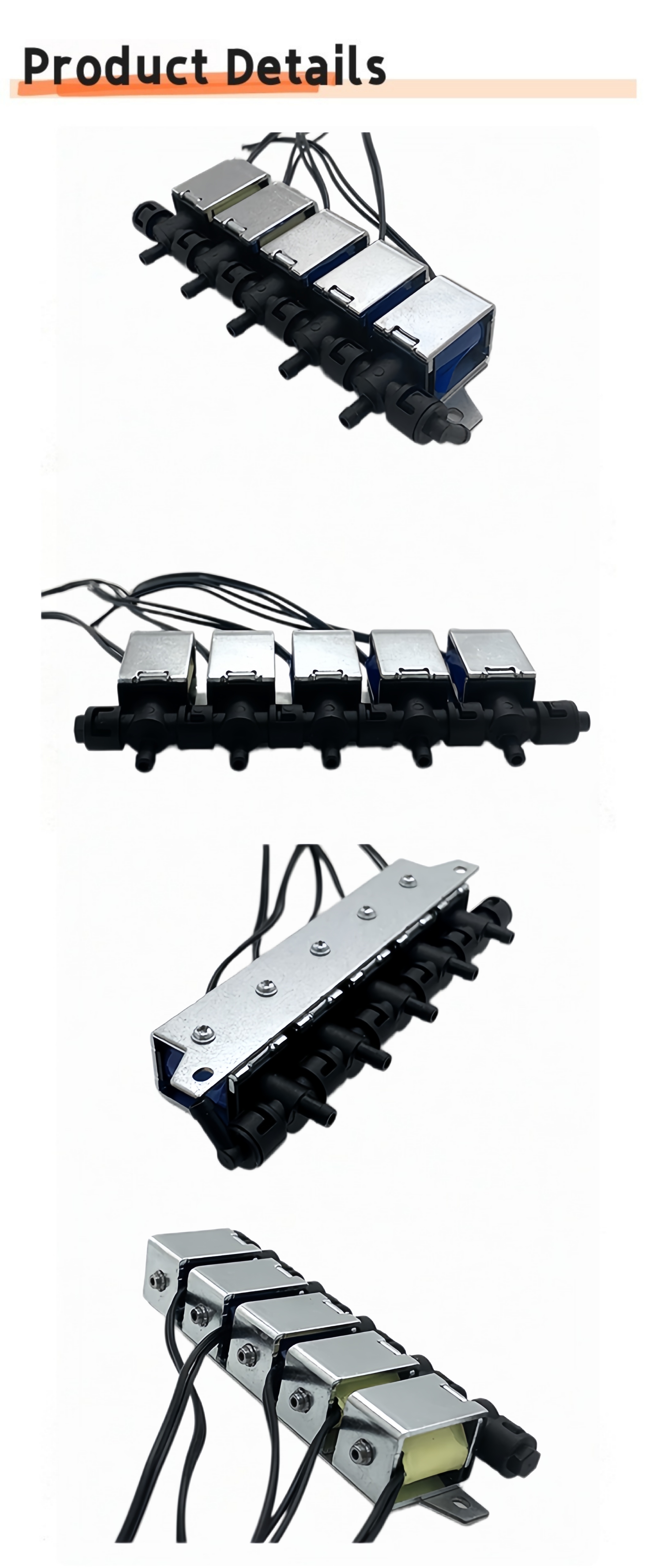

/images/massager-small-solenoid-valve-multiple-angles.jpg
