4-Way Micro Solenoid Valve Manifold for Massager

Short Description:

This 4-way parallel micro solenoid valve manifold is engineered for precision pneumatic control in leg massagers, rehabilitation equipment, and medical therapy devices. It delivers a maximum pressure of 46KPa with an ultra-low leakage rate of less than 15mmHg/min. The unit features rapid exhaust capabilities, capable of dropping from 350mmHg to 15mmHg in under 45 seconds, making it an ideal integrated solution for multi-chamber air pressure systems and smart household appliances.

Product Model: Medium-sized 4-way parallel valve

Rated Voltage: Available in DC 12V and DC 24V configurations

Power Consumption: 2.21W to 2.4W

Maximum Pressure: 46KPa (350mmHg)

Air Leakage: Less than 15mmHg/min

Operation Temperature: 5°C to 45°C

PDF Send email to us

Product Detail

Video

Product Tags

Customized Service

To provide customers with quality products and satisfactory service

MOQ 500pcs

Fast Delivery

Customized Sample

Excellent Quality

Competitive Price

Modern Testing Equipment

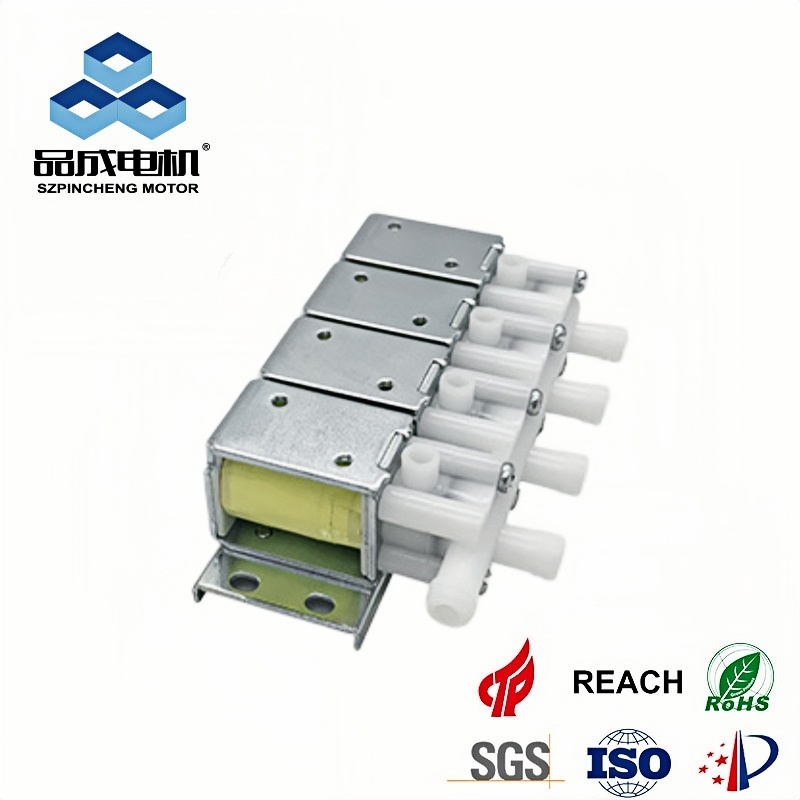

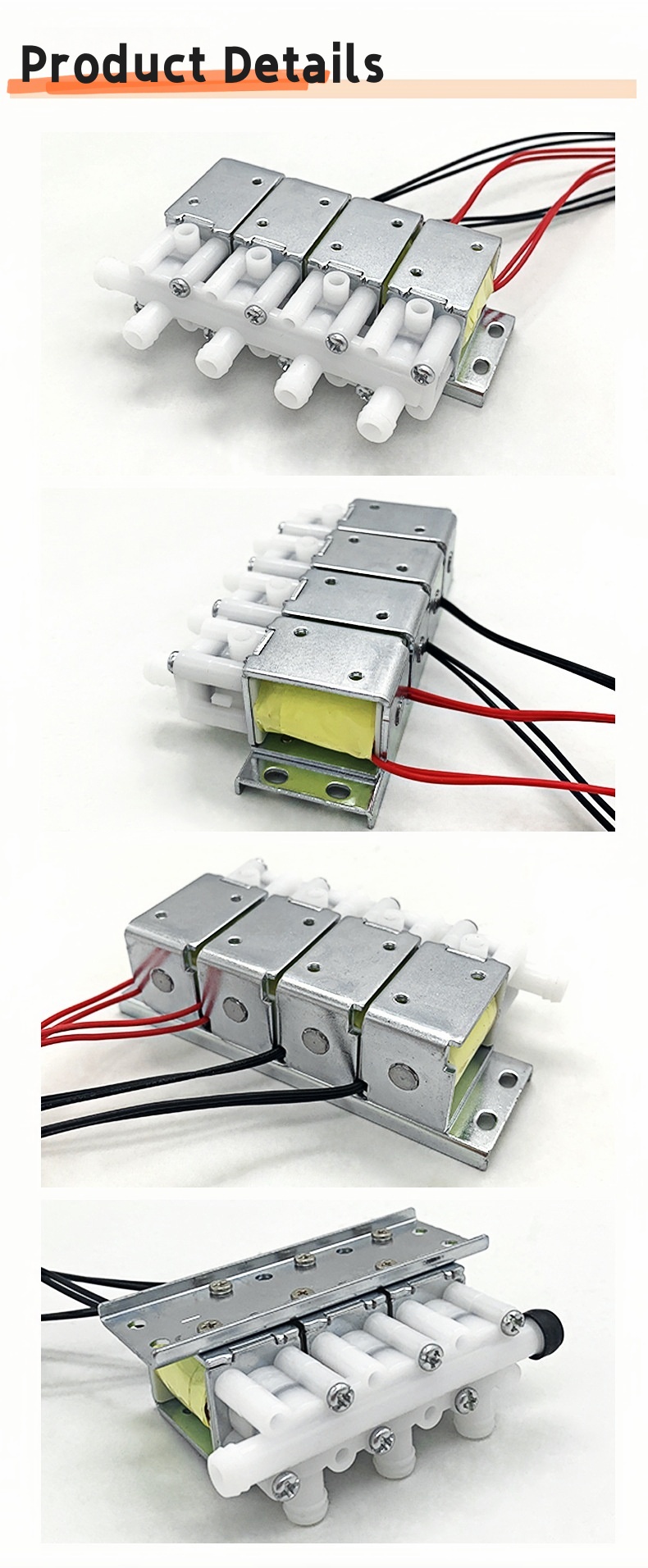

PYF34LZB Medium-sized parallel valve

This high-performance, medium-sized 4-way parallel solenoid valve manifold is engineered for precision pneumatic control. Designed as a compact miniature air valve, it serves as an ideal solution for leg massagers, rehabilitation equipment, and advanced medical care devices.

Low Leakage Precision

4-Way Integrated Manifold

180,000+ Cycles Durability

(※ Click this button to inquiry more)

Technical Specifications

1-XA Micro solenoid valve
*OEM/ODM Service available, contact us to get more details!
Rate Voltage	DC 3	DC 3.7V	DC 6V	DC 12V
Rate Current	75±10%mA	67±10%mA	60±10%mA	60±10%mA
DC Resistance	40±10%Ω	55±10%Ω	100±10%Ω	200± 10%Ω
Power	0.22 W	0.22 W	0.22 W	0.22 W
Air Tap O.D	φ 3.0mm
MaximumPressure	40KPa(300mmHg)
Medium	Air
Exhaust Speed	< 4sec (from 300 to 15 mmHg in a 100cc tank)
Life Test	≥200,000 Times (ON 5秒，OFF 5秒)
Leakage	<3mmHg/min ( under 300 mmHg in a 100cc tank )
OperationTemperature	0 ~50°C 30%to 85%RH
Weight	10g

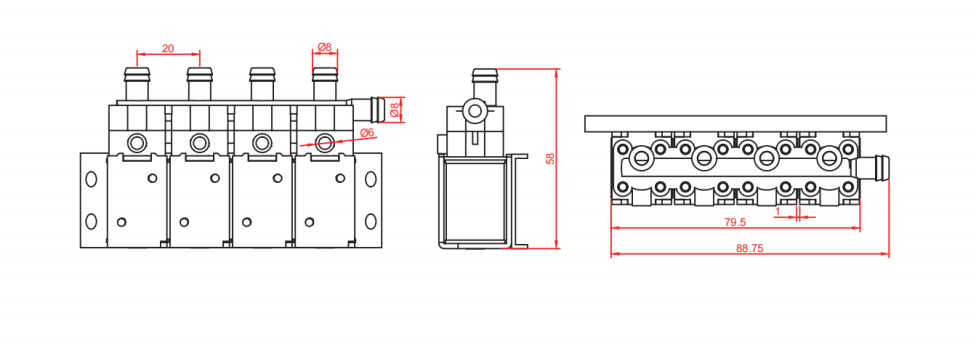

Specification Engineering Drawing

Engineering Integration Notes

1、Pneumatic System Design

Tubing Connections: The air nozzles have an outside diameter (O.D.) of 8.0mm. For a secure, airtight fit, we recommend using soft silicone tubing with an inner diameter (I.D.) of 6.0mm to 7.0mm.
Pressure Management: The maximum working pressure is 46KPa (350mmHg). To maintain the low leakage standard (less than 15mmHg/min), please ensure your system operates within this limit.
Exhaust Timing: The valve takes about 45 seconds to drop pressure from 350mmHg to 15mmHg in a 1500cc tank. When designing the software logic for massage cycles, allow enough "exhaust time" to ensure the air chambers empty completely.

2、Electrical Integration

Voltage and Current: This valve is available in DC 12V (100mA) and DC 24V (184mA) versions. Ensure your power supply can handle the peak power consumption, which is approximately 2.4W per coil when fully activated.
Circuit Protection: We recommend adding a flyback diode to your control circuit. This helps absorb voltage spikes when the valve turns off, protecting your MCU or driver chip.

3、Reliability & Environment

Operating Conditions: This component is designed to work in temperatures between 5°C and 45°C and humidity levels of 30% to 85%.
Ideal Use Cases: The integrated 4-way design is perfect for leg massagers, compression therapy (IPC) devices, and medical rehabilitation equipment.

Product Applications

Application Scenario	Key Benefit for the Design	Recommended Power Source
Leg Massagers	Independent control of multiple air chambers enables synchronized, rhythmic massage cycles.	DC Power Supply or Battery
Rehabilitation Equipment	Exceptional cycle lifespan ensures long-term reliability for repetitive physical therapy.	Regulated DC Power
Medical Care Devices	Ultra-low leakage guarantees stable, safe, and precise air pressure for patient treatments.	Regulated DC Power
Pressotherapy Systems	Rapid exhaust enables quick inflation and deflation transitions for multi-chamber compression.	DC Power Supply
Smart Appliances	Compact integrated design saves internal space while efficiently managing complex pneumatic paths.	AC/DC Adapter
