395 High-Power Micro Air Pump for Beauty & Health Devices
Customized Service
To provide customers with quality products and satisfactory service
PYP395-BX Micro Air Pump
The 395 DC Air Pump delivers a powerful 5.2W output with an impressive 15.0 LPM vacuum flow. It is an ideal core component for medical sphygmomanometers, providing stable pressure. With a low noise level (<60dB) and over 100,000 life cycles, this Small air Pump is also perfect for beauty instruments, massagers, and essential oil machines, ensuring long-lasting and quiet operation.
Product Information
|
PYP395-BX Micro Air Pump |
|||||
| *OEM/ODM Service available, contact us to get more details! | |||||
| Rate Voltage | DC6V | DC7.4V | DC 9V | DC 12V | DC 24V |
| Rate Current | ≤950mA | ≤700mA | ≤600mA | ≤450mA | ≤250mA |
| Power | 5.2W | 5.2W | 5.2W | 5.2W | 5.2W |
| Air Tap O.D | φ 6.8mm | ||||
| Vacuum flow rate Flow | 6.0-15.0 LPM | ||||
| Maximum Vacuum Pressure | ≥75 kpa (565mmHg) | ||||
| Noise Level | ≤60db (30cm away) | ||||
| Life Test | ≥100,000Times (ON 10 seconds, OFF 5 seconds) | ||||
| Net Weight | 136g | ||||

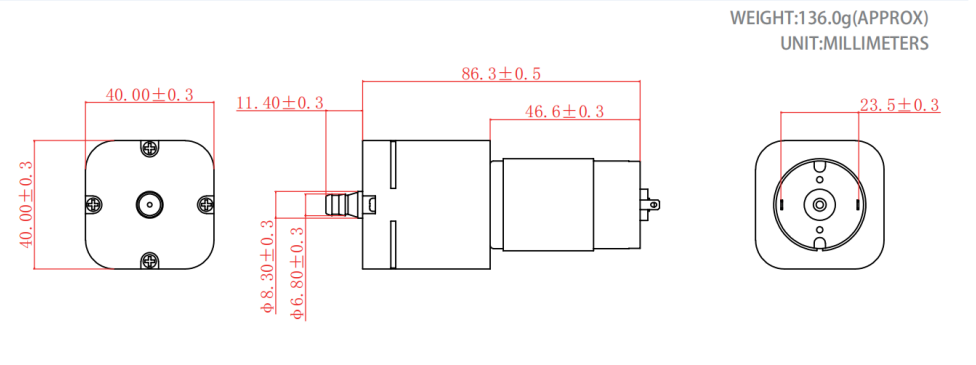

Specification Engineering Drawing
Application
Micro Air Pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

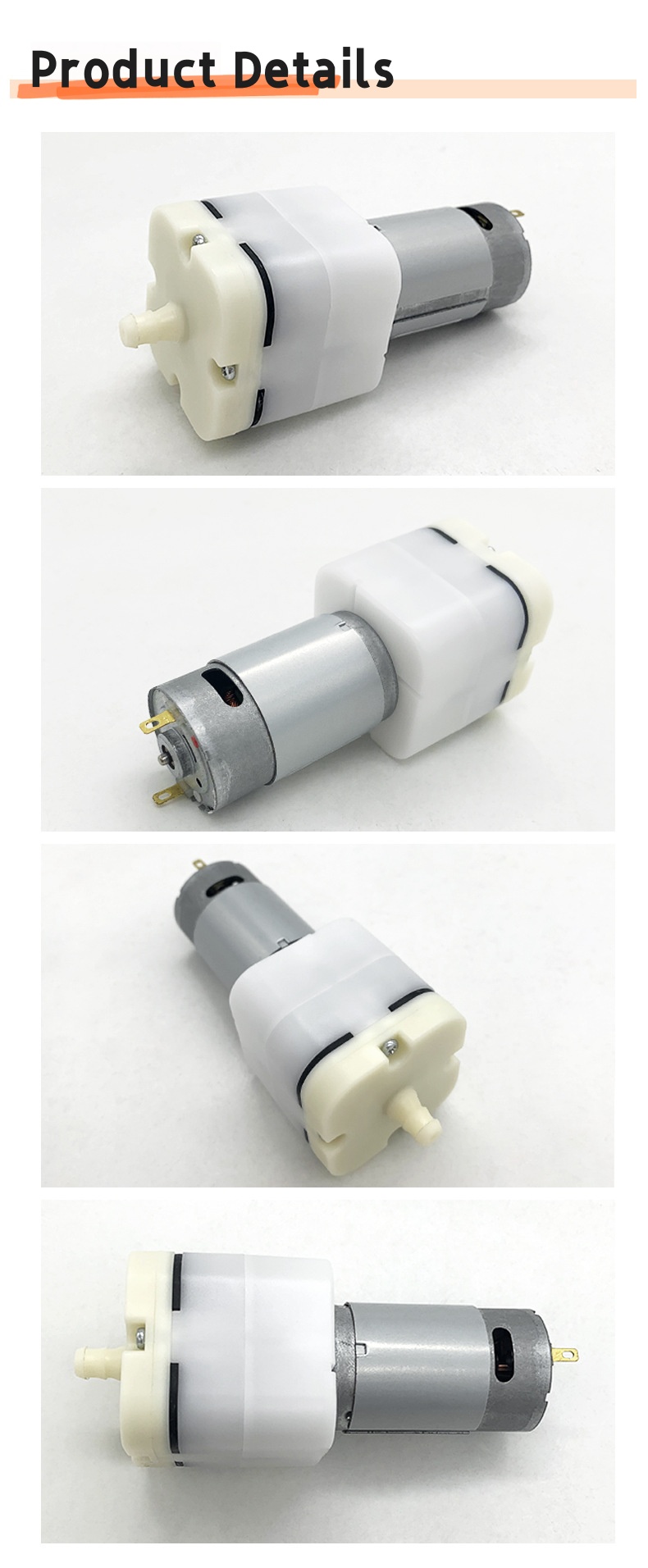

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
Q1:What makes the 395 suitable for heavy-duty applications like massage chairs and mattresses?
A: 395 is engineered for high-volume performance, delivering a significant vacuum flow of 6.0-15.0 LPM. This high flow rate allows for the rapid inflation and deflation required in massage mattresses and chairs. Furthermore, it supports a maximum pressure of >75KPA (565mmHg), providing the necessary force for effective pneumatic massage therapy.
Q2:How does this 12V Micro Air Pump ensure long-term reliability in medical monitors?
A: Reliability is a critical factor for a high flow air pump for medical monitor use. This model has passed an extensive life test of >100,000 cycles (based on a 10s ON, 5s OFF cycle). This exceptional durability ensures the pump can withstand the frequent inflation cycles required by professional sphygmomanometers and medical monitoring equipment over several years of service.
Q3: Can the noise level of the 395 DC Air Pump be maintained for quiet home appliance environments?
A: Despite its high power output of 5.2W, the pump is designed to operate quietly. It maintains a noise level of <60dB when measured from 30cm away. This makes it an excellent choice for home appliances and beauty devices, such as essential oil machines, where a peaceful user environment is essential.
