The PYP370-XZE-1 micro vacuum pump features ultra-quiet diaphragm technology ideal for medical nebulizers and vacuum packaging systems. With 12V operation, flat-head design, and SGS/REACH certifications, it delivers powerful suction with minimal noise. Perfect for medical and industrial applications requiring reliable vacuum performance.
|

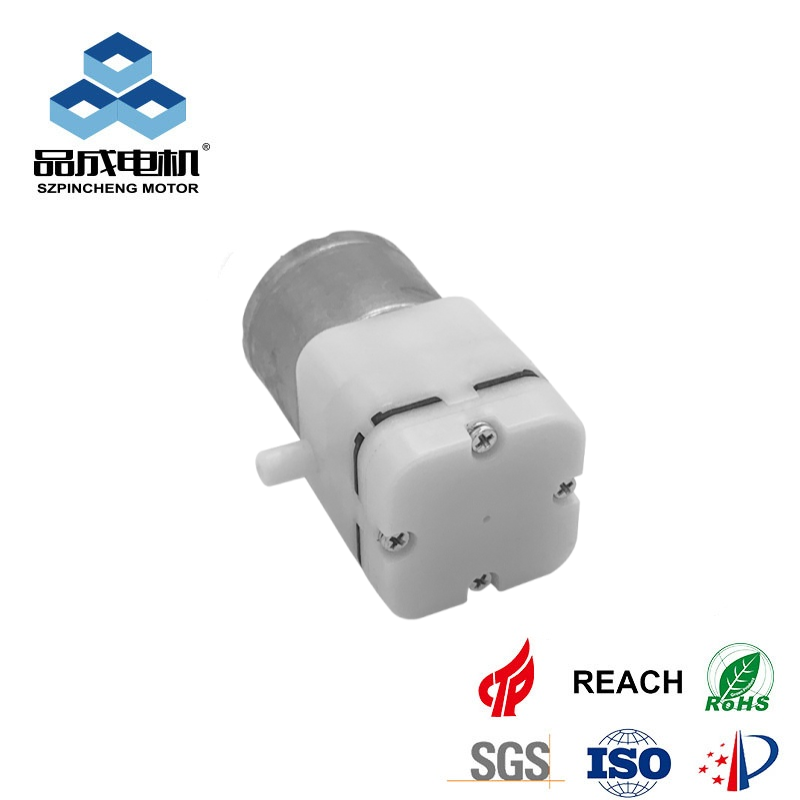

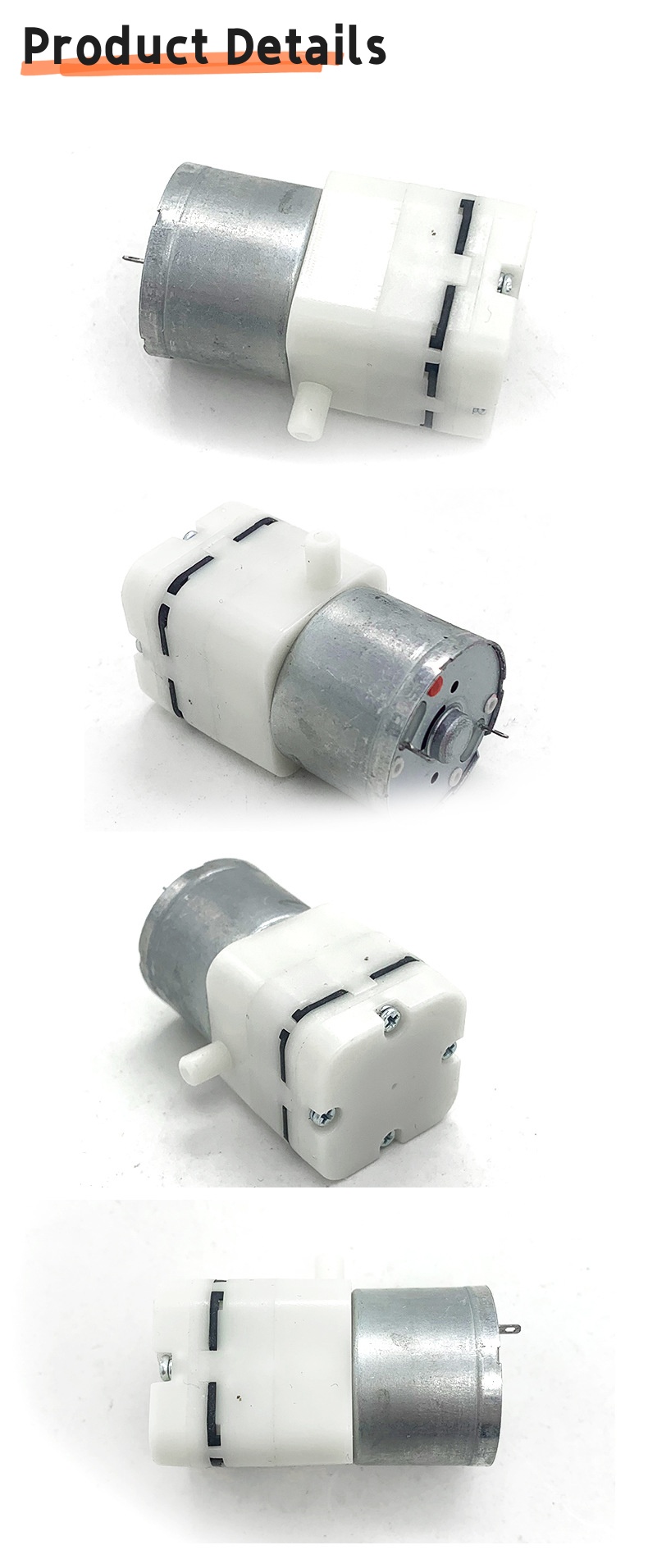

PYP370-XZE-1 Micro Vacuum Pump |
||||
| *OEM/ODM Service available, contact us to get more details! | ||||
| Rate Voltage | DC 3.7V | DC 6V | DC 9V | DC 12V |
| Rate Current | ≤850mA | ≤550mA | ≤350mA | ≤250mA |
| Power | 3.0w | 3.0w | 3.0w | 3.0w |
| Air Tap O.D | φ 4.2mm | |||
| Vacuum flow rate Flow | 1.0-4.0 LPM | |||
| Maximum Vacuum Pressure | ≤-60 kpa (-450mmHg) | |||
| Noise Level | ≤65db (30cm away) | |||
| Life Test | ≥200 Hrs (Continue) | |||
| Net Weight | 57.5g | |||
Typical applications:medical treatment, beauty care, massage, adult products, medical equipment;
