High-Performance 310B Micro Air Pump | DC 3V-12V Quiet Pump for Aromatherapy – Pincheng
Customized Service
To provide customers with quality products and satisfactory service

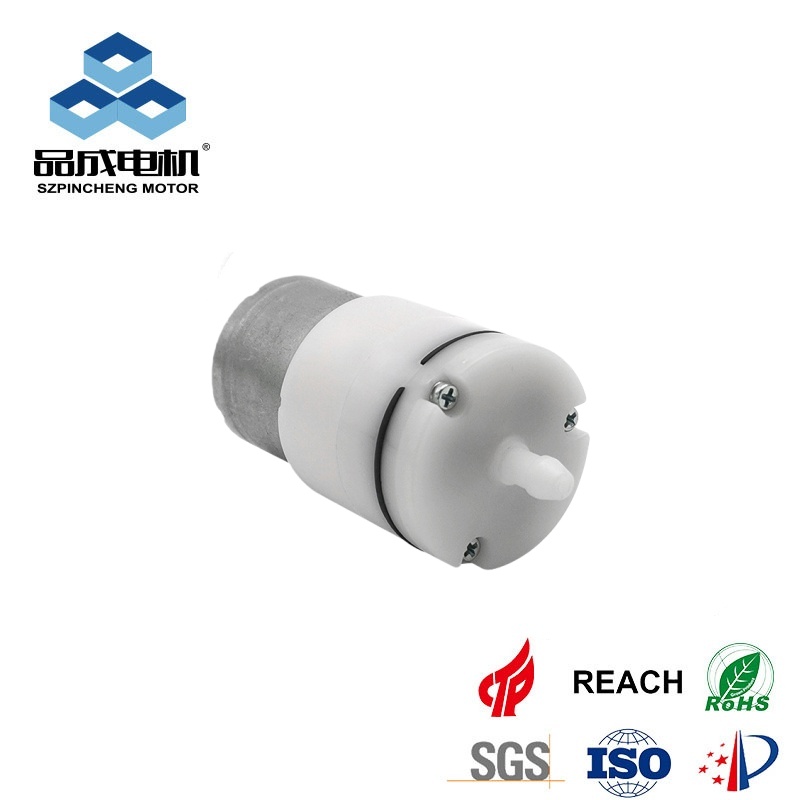

PYP310-XB micro air pump
Durability is at the core of the 310B’s design. With a tested service life of over 50,000 cycles, it provides peace of mind for manufacturers of medical devices that require precise air pressure control. The chemical-resistant diaphragm materials ensure that the pump can handle various air qualities without degradation, maintaining 1.5 - 3.0 LPM flow rates even after months of 24/7 operation.
Product Information
|
PYP555-XZ Micro Vacuum Pump |
||||
| *OEM/ODM Service available, contact us to get more details! | ||||
| Rate Voltage | DC 3V | DC 6V | DC 9V | DC 12V |
| Rate Current | ≤800mA | ≤400mA | ≤260mA | ≤200mA |
| Power | 2.4w | 2.4w | 2.4w | 2.4w |
| Air Tap O.D | φ4.8mm | |||
| Air Flow | 0.5-3.0 LPM | |||
| Maximum Pressure | ≥400 mmHg | |||
| Noise Level | ≤60db (30cm away) | |||
| Life Test | ≥30,000 Times (ON 10 seconds, OFF 5 seconds) | |||
| Net Weight | 36g | |||
| Inflation Time | <10s (From 0 to 300mmHg in a 500cc tank) | |||
| Leakage | <3.0mmHg/min(from 300mmHg in a 500cc tank) | |||

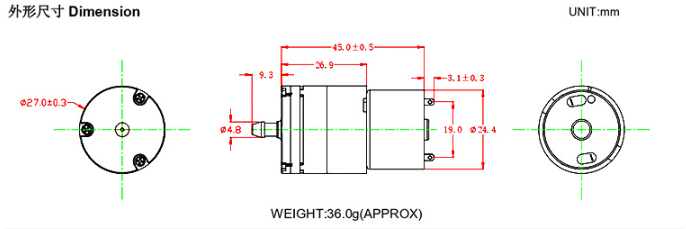

Specification Engineering Drawing
Application
Micro Air Pump is suitable for a variety of application scenarios
Typical applications：medical treatment, beauty care, massage, adult products, medical equipment;
Tea table
Vacuum packing machine
Water dispenser
Foam hand sanitizer
Electric decanter
dishwasher

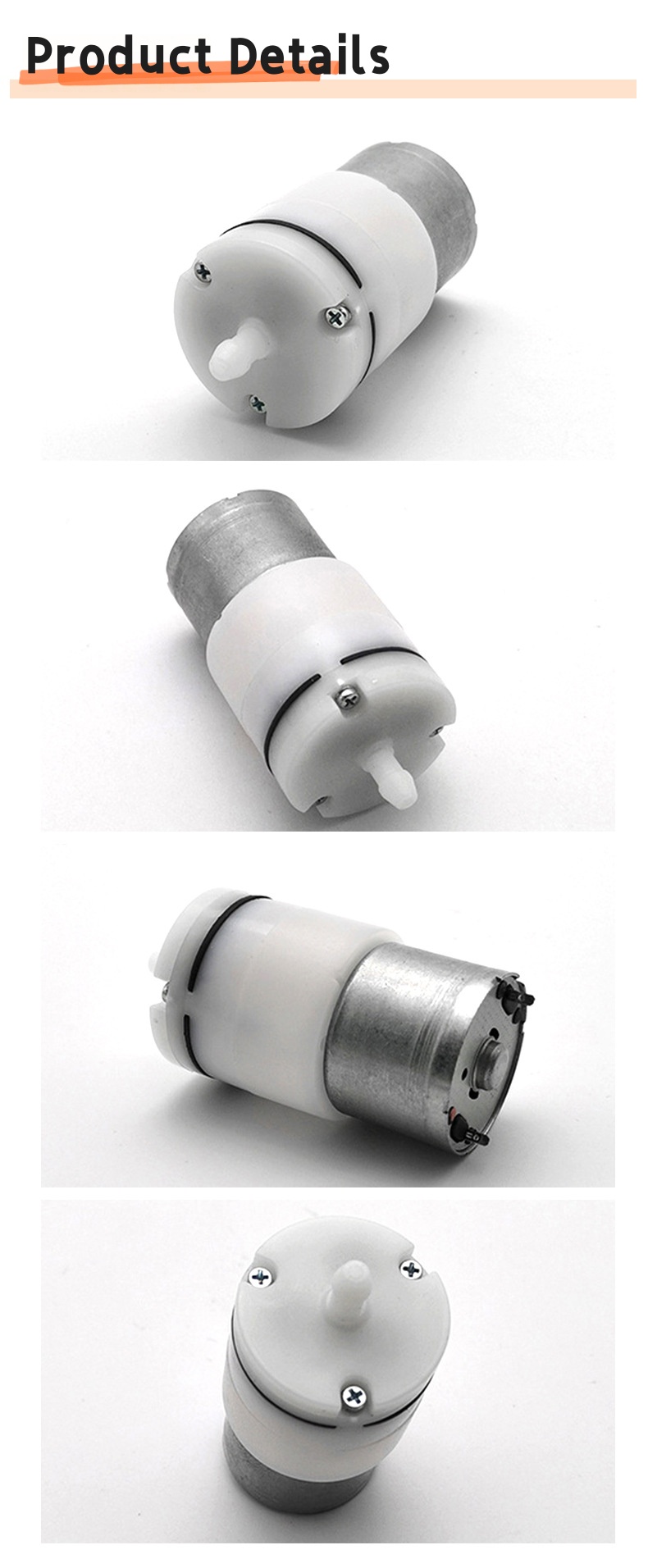

Images for micro gear pump---100% live-action shooting, Quality Guarantee
We supply more than just product, we engineer solutions optimised to suit your application requirements.
Q1: What is the maximum life expectancy of the 310B micro air pump?
A: The Pincheng 310B is designed for high durability. Under standard operating conditions (rated voltage and intermittent cycle), it can achieve a service life of over 50,000 cycles or 500+ hours of continuous run time. For high-end applications, we also offer custom brushless motor versions that significantly extend this lifespan.
Q2: Can the 310B pump be customized for different DC voltages?
A: Yes. While DC 6V and 12V are our standard specifications, as a direct factory, Pincheng can customize the motor winding to accommodate DC 3V, 3.7V, or 24V inputs based on your device’s power supply (battery or wall adapter). Please contact our engineering team for specific torque and flow adjustments.
Q3: How quiet is the 310B pump when integrated into an aromatherapy diffuser?
A: Silence is a core feature of the 310B. It operates at a noise level of less than 60dB at a 30cm distance. When properly mounted with rubber dampeners inside a housing, the perceived noise can be further reduced, making it ideal for night-time aromatherapy and medical bedside equipment.
